Product Specifications

Overview :

• High speed up to 4800MHz
• Built-in Power Management IC, more Energy-Efficient
• Capacity Doubled
• On-Die Error Correcting Code
• Improved Stability
• Supports Intel Core 12th series CPU

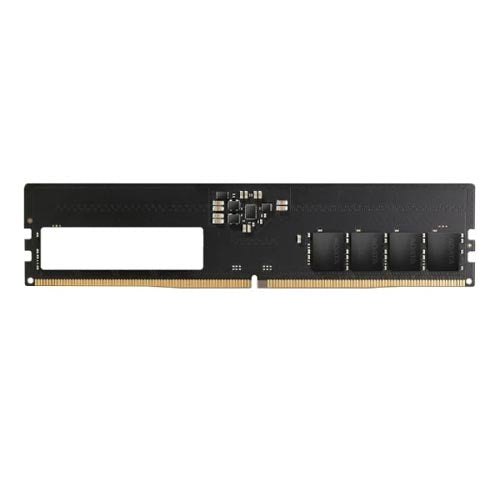

DDR5-4800 U-DIMM Memory Module:

The future of DRAM is here in the form of the ADATA DDR5-4800 U-DIMM module. Compared to its predecessors,this module provides a significant speed boost, higher capacities, reduced power consumption, and increased
bandwidth per CPU core.

Higher Frequencies:

The DDR5-4800 U-DIMM delivers blazing frequencies of up to 4800 MT/s, a major leap from the max. frequency of DDR4 modules (3200 MT/s)

More Energy-Efficient:

This next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4. What’s more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability.

Capacity Doubled:

This memory module’s architecture allows for more memory bank groups and banks. With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities.

Improved Stability:

With on-die error correcting code (ECC) this module can correct errors automatically in real-time to provide increased stability and reliability.

QuikTips: DDR5 vs DDR4 – Appearance:

DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.

QuikTips: DDR5 vs DDR4 – Chip Architecture:

DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length and Prefetch are also doubled. And to ensure data integrity, they feature error correcting code (ECC) technology.
