Huawei AR3260 with SRU80, AC Power (AR0M0036BA00)
Regular price
Price: Rs. 0.00
Availability :
In Stock at Global Warehouses
Condition :
Warranty :
1 Year Warranty
Shipping :
Express Shipping Across India 3–7 Days via Delhivery.
Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust
24/7 Online Service
Get estimate shipping for your order
Huawei AR3260 with SRU80, AC Power (AR0M0036BA00)
Regular price
Price: Rs. 0.00
Product Specifications
Description
Huawei AR G3 AR3200 Series Integrated Enterprise Router AR0M0036BA00 is the next generation enterprise-class routers based on Huawei proprietary Versatile Routing Platform (VRP) platform. Huawei AR3200 series router utilizes multi-Core CPU and non-blocking switching structure to provide industry-leading performance and extensibility to support requirements of network development.
Quick Specs

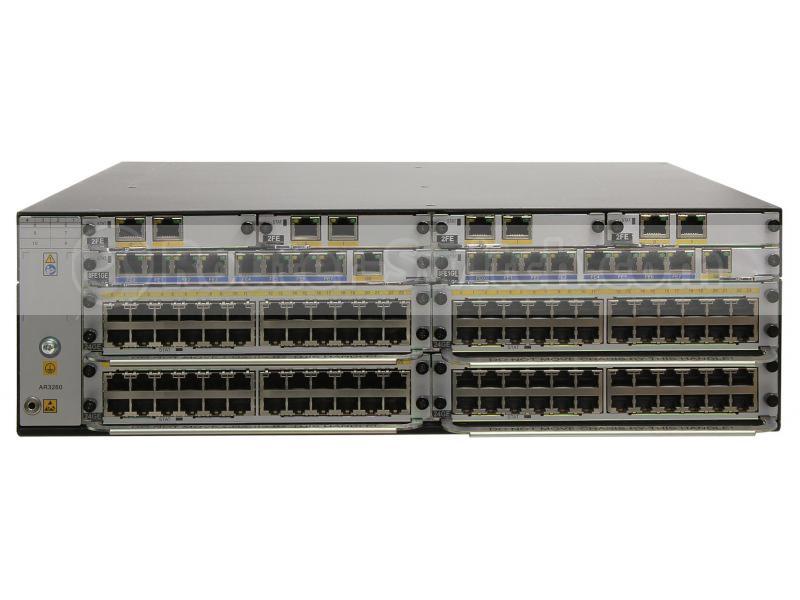

Figure 1 shows the appearance of Huawei Router - AR0M0036BA00.
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router - AR0M0036BA00 |
|
Memory |
Configured with SRU40/SRU60/SRU80/SRU100: 2 GB Configured with SRU200: 4 GB |
|
Flash |
16 MB |
|
Service and Router Unit |
SRU 80 |
|
Service interfaces (standard configuration) |
WAN interfaces: Configured with SRU40/SRU60/SRU80/SRU100: 1 GE electrical interface and 2 GE combo interfaces Configured with SRU200: 2 10 GE optical interfaces and 4 GE combo interfaces LAN interfaces: none |
|
Extended slots |
4 SIC slots, 2 WSIC slots, and 4 XSIC slots |
|
Power module type |
Pluggable AC power module |
|
Weight |
11 kg (24.2 lb) |
|
Dimensions (W x D x H) |
442.0 mm x 470.0 mm x 130.5 mm |
Product Details
Figure 2 shows the front panel of AR0M0036BA00.
Note:
|
① |
Ground point |
|
② |
ESD jack |
|
③ |
Four XSIC slots |
|
④ |
Two WSIC slots |
|
⑤ |
Four SIC slots |
The installed cards and modules must be purchased separately.
Figure 3 shows the back panel of AR0M0036BA00.
Note:
|
① |
Two SRU slots |
|
② |
Built-in fan module |
|
③ |
Two power module slots |
The Modules, Optical Transceivers
Table 2 shows the recommended elements for the AR0M0036BA00.
|
Model |
Description |
|
AC power module |
|
|
350W AC Power Module |
|
|
DC power module |
|
|
350W DC Power Module |
|
|
FE-SFP Optical Transceiver |
|
|
SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
|
|
eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
|
eSFP,FE,Single-mode Module(1310nm,40km,LC) |
|
|
GE-SFP Optical Transceiver |
|
|
SFP,GE,Electrical Interface Module(100m,RJ45) |
|
|
eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
|
|
eSFP,GE,Single-mode Module(1310nm,10km,LC) |
|
|
eSFP,GE,Single-mode Module(1310nm,40km,LC) |
|
|
eSFP,GE,Single-mode Module(1550nm,40km,LC) |
Compare to Similar Items
Table 3 shows the comparison between AR0M0036BA00 and AR2220E.
|
Model |
AR0M0036BA00 |
|
|
SIC Slots |
4 |
4 |
|
Memory |
Configured with SRU40/SRU60/SRU80/SRU100: 2 GB Configured with SRU200: 4 GB |
1 GB |
|
Flash |
16 MB |
512 MB |
|
Weight |
11 kg (24.2 lb) |
6 kg (13.2 lb) |
|
Dimensions (W x D x H) |
442.0 mm x 470.0 mm x 130.5 mm |
442.0 mm x 420.0 mm x 44.5 mm |
Get more information
Do you have any question about the AR0M0036BA00
Main Specifications
|
WAN Speed with Services *** |
1 Gbit/s (SRU40), 2 Gbit/s (SRU80), 1 Gbit/s (SRU100E), 4.5 Gbit/s (SRU200), 5.5 Gbit/s (SRU400) |
|
Firewall Performance (large packets) |
5.5 Gbit/s (SRU40), 9.5 Gbit/s (SRU80), 10 Gbit/s (SRU100E), 15 Gbit/s (SRU200), 20 Gbit/s (SRU400) |
|
Device Switching Capacity |
160 Gbit/s |
|
Slot Switching Bandwidth |
SIC slots: 2 Gbit/s |
|
Number of recommended |
2,000 |
|
Fixed WAN Ports |
SRU40: 3 x GE (2 x Combo) SRU80: 3 x GE (2 x Combo) SRU100E: 4 x GE Combo+ 2 x GE SFP SRU200: 4 x GE Combo+ 2 x 10 GE SFP+ SRU400: 4 x GE Combo+ 2 x 10 GE SFP+ |
|
SIC Slots |
4 |
|
WSIC Slots |
2 |
|
XSIC Slots (default/max**) |
4/6 |
|
EXSIC Slots (shared with XSIC) |
1 |
|
DSP Slots |
0/3 |
|
USB 2.0 Ports |
1/2 |
|
Mini-USB Ports |
1 |
|
Console Ports |
1 |
|
Memory |
2 GB/4 GB |
|
Flash (default/max**) |
2 GB/8 GB |
|
Maximum Power |
350W (single power module)/700W (dual power module) |
|
AC Power |
100V to 240V |
|
Frequency |
50 Hz/60 Hz |
|
DC Power |
-48V to -60V |
|
Dimensions (H x W x D) |
130.5 mm x 442 mm x 470 mm |
|
Weight |
11 kg (without power module and interface card) |
|
Ambient Temperature |
0oC to 45°C |
|
Ambient Humidity |
5% to 95% (non-condensing) |
|
Basic Features |
DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and sub-interface management |
|
Voice |
RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC |
|
3G |
3G Interface card (WCDMA) |
|
LTE |
LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s) |
|
WLAN (AC) |
AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management 802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management) |
|
LAN |
IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP |
|
IPv4 Unicast Routing |
Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
|
IPv6 Unicast Routing |
Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
|
Multicast |
IGMPv1/v2/v3, IGMP Snooping v1/v2/v3, PIM SM, PIM DM, and MSDP |
|
MPLS |
LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP, FRR, TE FRR |
|
VPN |
IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN |
|
QoS |
DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+ WRRWAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, traffic policy), hierarchical QoS, FR QoS, Smart Application Control (SAC), Hardware QoS |
|
Security |
ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP source guard, DHCP snooping, CPCAR, blacklist, and IP source tracing |
|
Management and Maintenance |
Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, auto-config, deployment using USB disk, NetConf, and CLI |
