Huawei AR3260 with 2*SRU100E, 2*AC Power (AR3260-2X100E-AC)
Regular price
Price: Rs. 456,195.00
Availability :
In Stock at Global Warehouses
Condition :
Warranty :
1 Year Warranty
Shipping :
Express Shipping Across India 3–7 Days via Delhivery.
Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust
24/7 Online Service
Get estimate shipping for your order
Huawei AR3260 with 2*SRU100E, 2*AC Power (AR3260-2X100E-AC)
Regular price
Price: Rs. 456,195.00
Product Specifications
Description
AR3260-2X100E-AC is the Huawei AR3260 with Service and Router Unit 100E, 4 SIC, 2 WSIC, 4 XSIC, and 350W AC Power. Huawei AR3260 router using embedded hardware encryption, support for voice digital signal processor (DSP) slot and Firewall support, call processing, voice mail and application services, the coverage of the industry's most extensive wired and wireless connection mode, such as E1 / T1, xDSL, CPOs, 3G and other.
Quick Specs

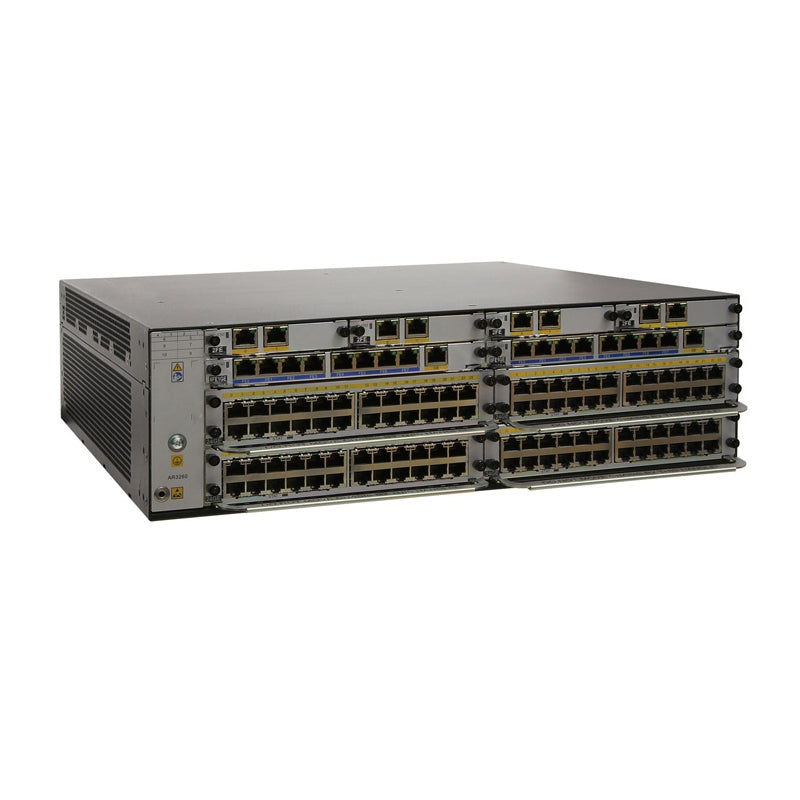

Figure 1 shows the appearance of Huawei Router - AR3260 for reference.
Table 1 shows the Quick Specs.
|
Product Code |
AR3260-2X100E-AC |
|
Bundle |
Huawei AR3260, 2 Service and Router Unit 100E, 4 SIC, 2 WSIC, 4 XSIC, 2 350W AC Power |
|
WAN Speed with Services |
1 Gbit/s (SRU100E) |
|
Firewall Performance (large packets) |
10 Gbit/s (SRU100E) |
|
Device Switching Capacity |
160 Gbit/s |
|
Extended slots |
4 SIC slots, 2 WSIC slots, and 4 XSIC slots |
|
Power module type |
Pluggable power module |
Product Details
Figure 2 shows the front panel of AR3260 for reference.
Note:
|
① |
Ground point |
|
② |
ESD jack |
|
③ |
Four XSIC slots |
|
④ |
Two WSIC slots |
|
⑤ |
Four SIC slots |
The installed cards and modules must be purchased separately.
Figure 3 shows the back panel of AR3260 for reference.
Note:
|
① |
Two SRU slots |
|
② |
Built-in fan module |
|
③ |
Two power module slots |
The Modules, Optical Transceivers
Table 2 shows the recommended elements.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
|
|
eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
|
eSFP,FE,Single-mode Module(1310nm,40km,LC) |
|
|
GE-SFP Optical Transceiver |
|
|
SFP,GE,Electrical Interface Module(100m,RJ45) |
|
|
eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
|
|
eSFP,GE,Single-mode Module(1310nm,10km,LC) |
|
|
eSFP,GE,Single-mode Module(1310nm,40km,LC) |
|
|
eSFP,GE,Single-mode Module(1550nm,40km,LC) |
Compare to Similar Items
Table 3 shows the comparison between AR3260 and AR3260-2X100E-AC.
|
Model |
AR3260-2X100E-AC |
|
|
Type |
Huawei AR3260 Integrated Chassis Components |
Huawei AR3260, 2 Service and Router Unit 100E, 4 SIC, 2 WSIC, 4 XSIC, 2 350W AC Power |
|
WAN Speed with Services |
1 Gbit/s (SRU40), 2 Gbit/s (SRU80), 1 Gbit/s (SRU100E), 4.5 Gbit/s (SRU200), 5.5 Gbit/s (SRU400) |
1 Gbit/s (SRU100E) |
|
Firewall Performance (large packets) |
5.5 Gbit/s (SRU40), 9.5 Gbit/s (SRU80), 10 Gbit/s (SRU100E), 15 Gbit/s (SRU200), 20 Gbit/s (SRU400) |
10 Gbit/s (SRU100E) |
Get more information
Do you have any question about the AR3260-2X100E-AC
Main Specifications
|
Type |
Huawei AR3260, 2 Service and Router Unit 100E, 4 SIC, 2 WSIC, 4 XSIC, 2 350W AC Power |
|
WAN Speed with Services |
1 Gbit/s (SRU100E) |
|
Firewall Performance (large packets) |
10 Gbit/s (SRU100E) |
|
Device Switching Capacity |
160 Gbit/s |
|
Slot Switching Bandwidth |
SIC slots: 2 Gbit/s |
|
Number of recommended |
2,000 |
|
Fixed WAN Ports |
SRU100E: 4 x GE Combo+ 2 x GE SFP |
|
SIC Slots |
4 |
|
WSIC Slots |
2 |
|
XSIC Slots (default/max) |
4/6 |
|
EXSIC Slots (shared with XSIC) |
1 |
|
DSP Slots |
0/3 |
|
USB 2.0 Ports |
1/2 |
|
Mini-USB Ports |
1 |
|
Console Ports |
1 |
|
Memory |
2 GB/4 GB |
|
Flash (default/max) |
2 GB/8 GB |
|
Maximum Power |
350W (single power module)/700W (dual power module) |
|
AC Power |
100V to 240V |
|
Frequency |
50 Hz/60 Hz |
|
DC Power |
-48V to -60V |
|
Dimensions (H x W x D) |
130.5 mm x 442 mm x 470 mm |
|
Weight |
11 kg (without power module and interface card) |
|
Ambient Temperature |
0°C to 45°C |
|
Ambient Humidity |
5% to 95% (non-condensing) |
|
Basic Features |
DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and sub-interface management |
|
Voice |
RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC |
|
3G |
3G Interface card (WCDMA) |
|
LTE |
LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s) |
|
WLAN (AC) |
AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management 802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management) |
|
LAN |
IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP |
|
IPv4 Unicast Routing |
Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
|
IPv6 Unicast Routing |
Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
|
Multicast |
IGMPv1/v2/v3, IGMP Snooping v1/v2/v3, PIM SM, PIM DM, and MSDP |
|
MPLS |
LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP, FRR, TE FRR |
|
VPN |
IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN |
|
QoS |
DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+ WRRWAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, traffic policy), hierarchical QoS, FR QoS, Smart Application Control (SAC), Hardware QoS |
|
Security |
ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUSauthentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP source guard, DHCP snooping, CPCAR, blacklist, and IP source tracing |
|
Management and Maintenance |
Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, auto-config, deploymentusing USB disk, NetConf, and CLI |
