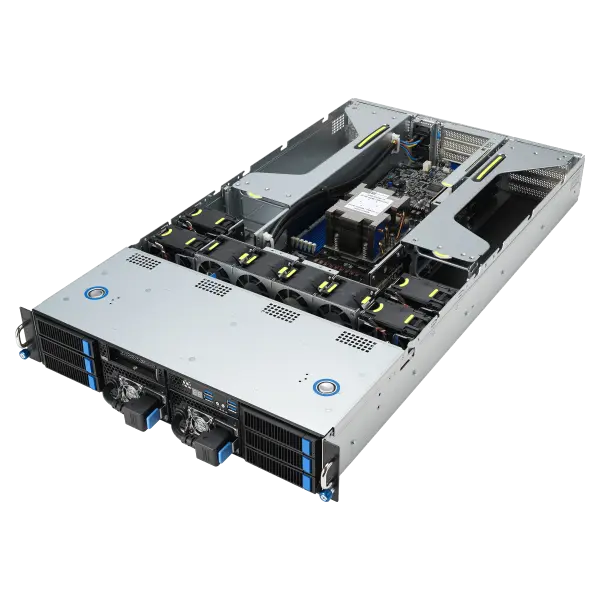

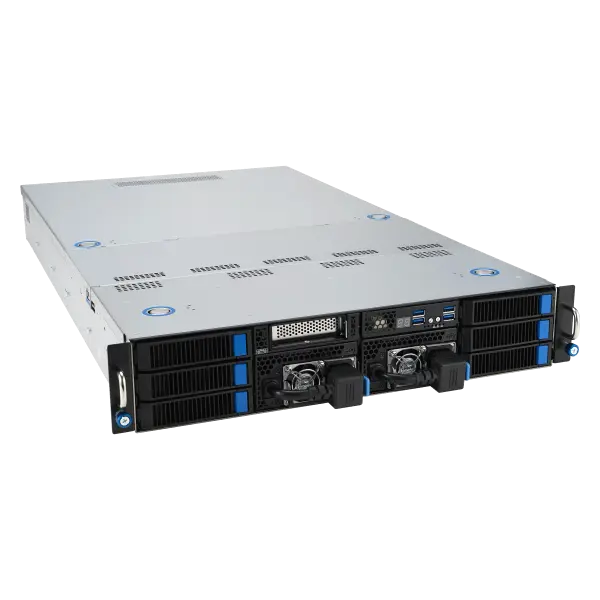

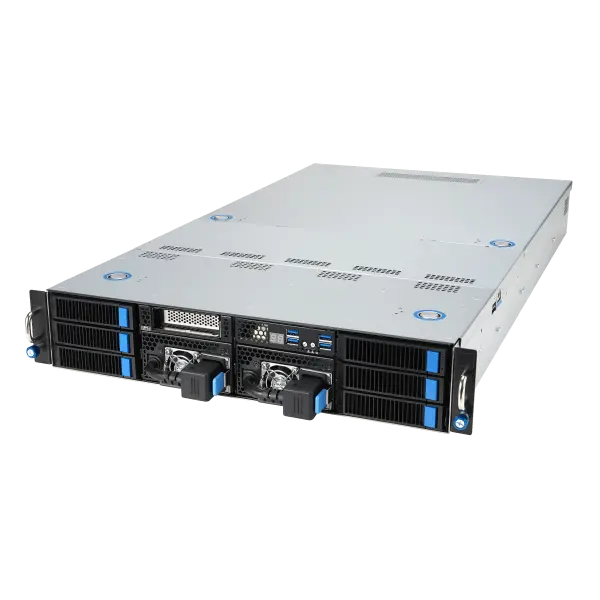

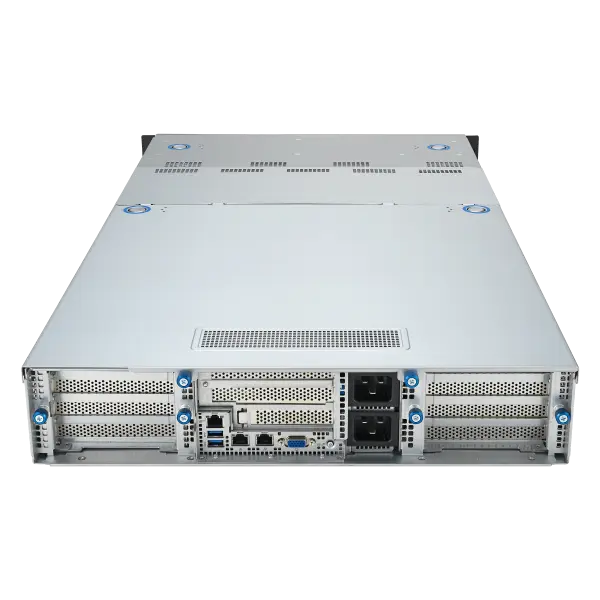

ASUS ESC4000A-E12 2U GPU Server
Regular price
Price: Rs. 0.00
Product Specifications
Description
ASUS ESC4000A-E12 is a 2U GPU server designed for AI, machine learning, high-performance computing and data-center acceleration. It combines 1 × AMD EPYC 9005/9004 processor (SP5), up to 400W with Up to 4 × dual-slot active or passive GPUs.
Key Features
- Single-socket EPYC efficiency: AMD EPYC 9005/9004 support delivers high core density and PCIe bandwidth in a compact 2U design.
- Four-GPU capacity: The server supports up to four dual-slot active or passive accelerators for AI and HPC workloads.
- PCIe 5.0 expansion: Eight PCIe 5.0 slots provide bandwidth for GPUs, networking and storage controllers.
- Flexible hot-swap storage: Front 2.5-inch and 3.5-inch bays support NVMe, SATA and SAS configurations.
- Enterprise management: ASMB11-iKVM, ASUS Control Center and redundant Titanium power support remote operation.
Main Specifications
| Processor / System Bus |
1 x Socket SP5 (LGA 6096) AMD EPYC™ 9004 / 9005 series processors (up to 400W) 4th Generation AMD EPYC processors with AMD 3D V-Cache technology |
|---|---|
| Memory |
Total Slots: 12 (12-channel) Capacity: Maximum up to 3TB RDIMM Memory Type: DDR5 4800/4400 RDIMM / 3DS RDIMM Memory Size: 64GB, 32GB, 16GB RDIMM 256GB, 128GB 3DS RDIMM * Refer to support page for more information |
| Expansion Slots |
Rear: 4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen5 x8 link, FH, FL) for single-slot GPU cards 1 x PCIe x16 slot (Gen5 x16 link, FH, HL) 1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) or OCP socket option or M.2 riser module 1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL) Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) - SKU1 only |
| Storage |
Storage Controller: CPU Integrated Optional Kits: ASUS PIKE II 3008 8-port SAS 12Gb/s HBA Card ASUS PIKE II 3108 8-port SAS HW 12Gb/s RAID Card Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i |
| Networking |
2 x GbE LAN ports (Intel I350 Controller) 1 x Management Port |
| Multi-GPU Support |
Please find the latest GPU support from: https://servers.asus.com/support/gpu |

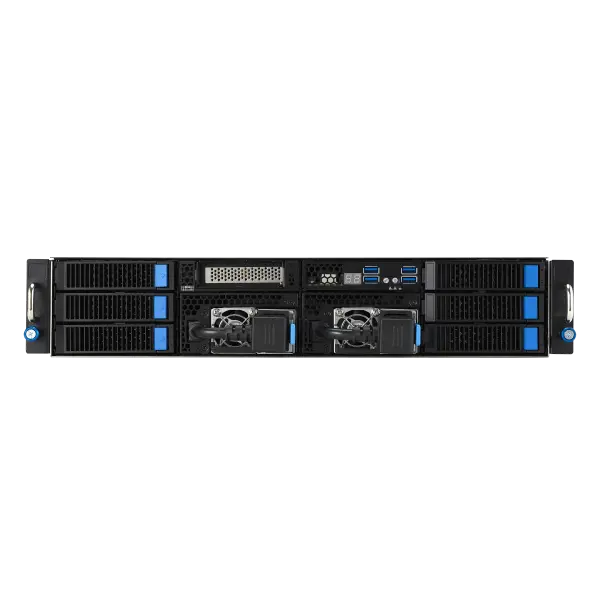

| Front I/O Ports |
1 x Q-Code/Port 80 LED 4 x USB 3.2 Gen1 ports |

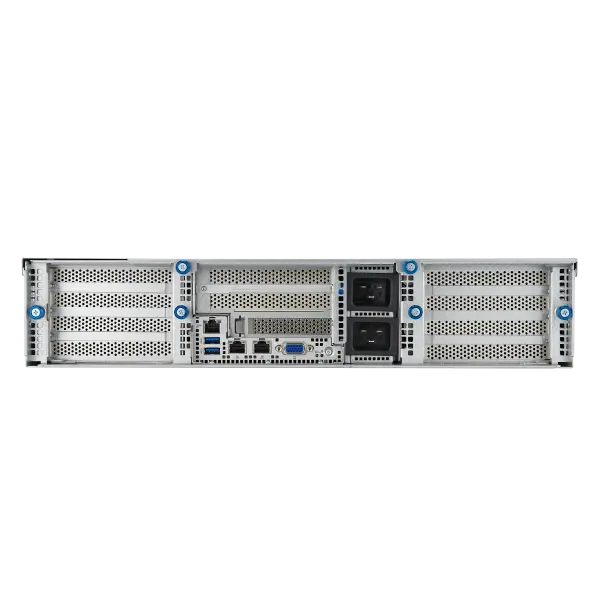

| Rear I/O Ports |
2 x USB 3.2 Gen1 ports 2 x Gigabit LAN ports 1 x Management port 1 x VGA port |
| Switch / LED |
Front: 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED 1 x Q-Code/Port 80 LED 2 x LAN LEDs Rear: 1 x Power Button/LED 1 x Location LED 1 x Message LED |
| OS Support |
Please find the latest OS support from: https://servers.asus.com/support/os |
| Management Solution |
ASUS Control Center ASUS ASMB11-iKVM (on-board) |
| Regulatory Compliance | BSMI, CE, RCM, FCC (Class A) |
| Dimensions |
800mm x 439.5mm x 88.9mm (2U) 31.50" x 17.30" x 3.50" |
| Weight |
Net Weight: 24 Kg Gross Weight: 34.8 Kg |
| Power Supply |
1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply * 2600W PSU supports 1+1 redundancy with GPU card power consumption ≤ 300W |
| Environment |
Operating temperature: 10℃ ~ 35℃ Non-operating temperature: -40℃ ~ 70℃ Non-operating humidity: 20% ~ 90% (Non-condensing) |
| FRU Part List |
90SK0000-MPNBN0 - ESC4000 Series GPU Power Cable Kit / 12+4P to 6P*2 / L=220mm (4-in-1) / GPU power cable for H100, H100 NVL, Ada Series, L40 and L40S 90SKS000-M2LAN0 - 6P to 6+2P GPU Cable Kit, 220mm 90SKS000-M78AN0 - 6P to 6+2P GPU Cable Kit, 350mm 90SKS000-MJXAN0 - 9540 RAID Cable Kit / Supports NVMe, SATA and SAS 90SKS000-M2JAN0 - 9560 RAID Cable Kit / Supports NVMe, SATA and SAS 90SKS000-M7DAN0 - PIKE Card Cable Kit 90SKS000-M4LAN0 - AMD SP5 2U STD Heatsink 90SKS000-M23AN0 - R2P-B Cable Arm 90SKS000-M41AN0 - 6056 Fan 90SK0000-MWEAN0 - 8038 Fan / Delta 90SKH000-MPRBN0 - 3.5" HDD Tray Toolless V3 90SKS000-M4MAN0 - ESC4000-E11 / Intel EGS 2U STD 90SKP000-M4CAN0 - 2600W Titanium RPSU-R / GOSPOWER / G1302-2600WRA (185mm) 90SKR000-M07AN0 - 1.5U Full Extension Slide Rail Kit 90SKS000-M4CAN0 - ESC4000A-E12 / OCP Riser Module 90SKS000-M4DAN0 - ESC4000A-E12 / M.2 Riser Module |
