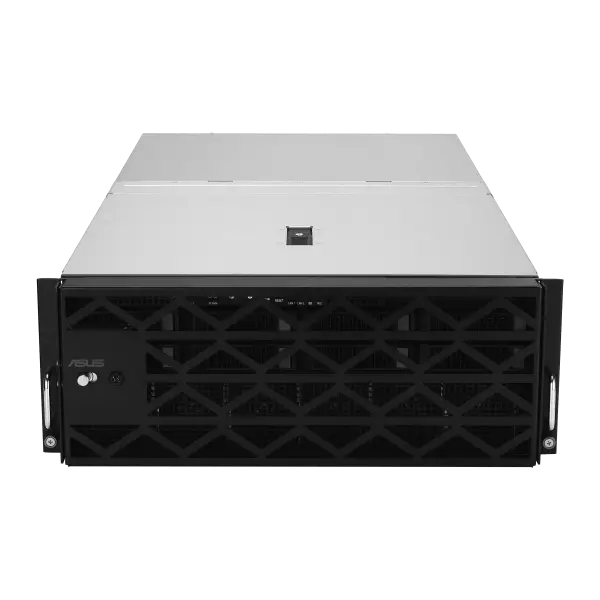

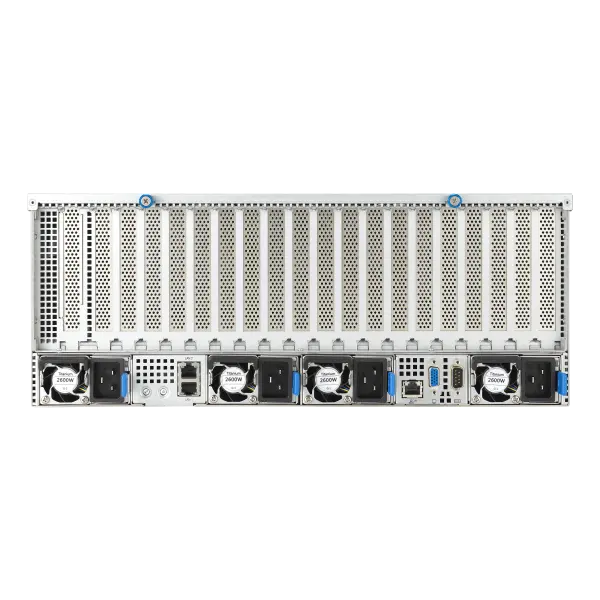

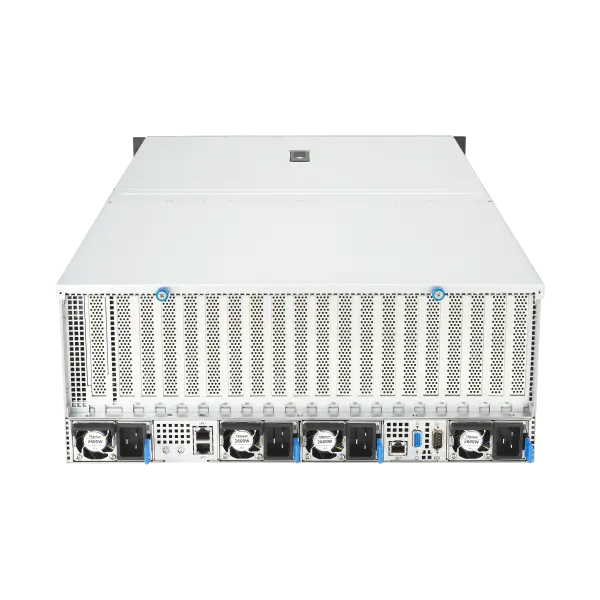

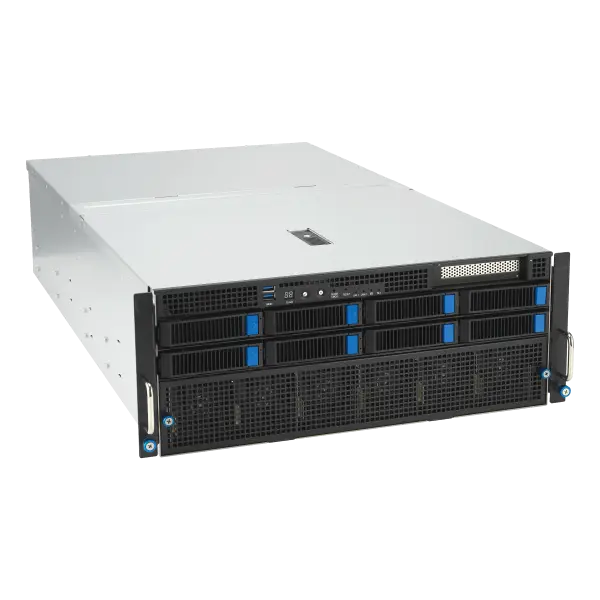

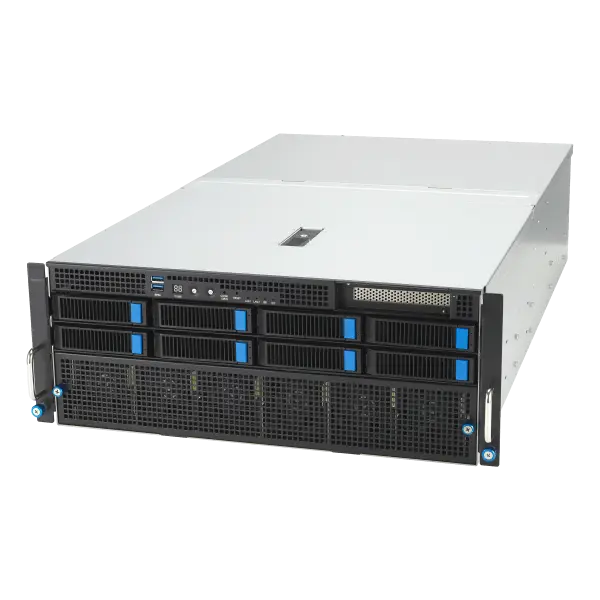

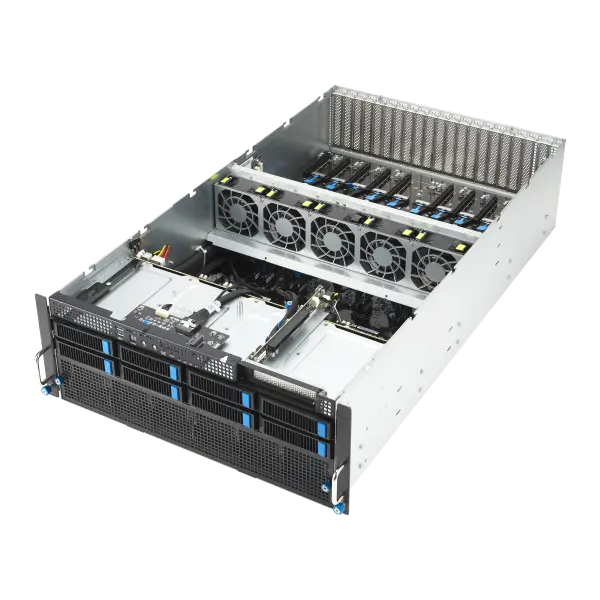

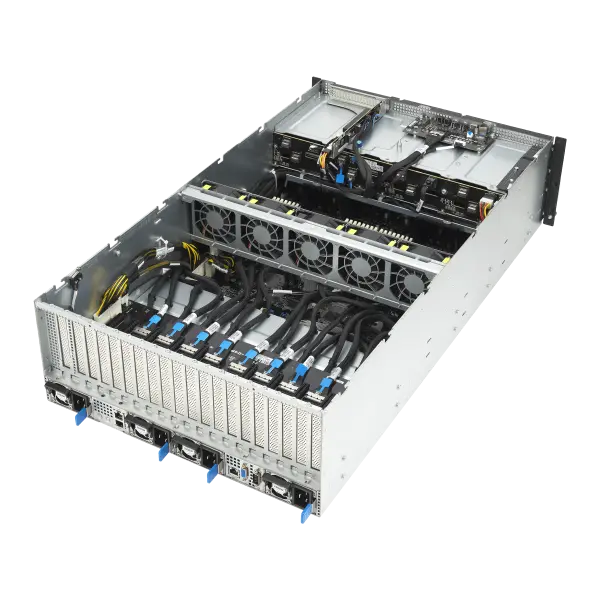

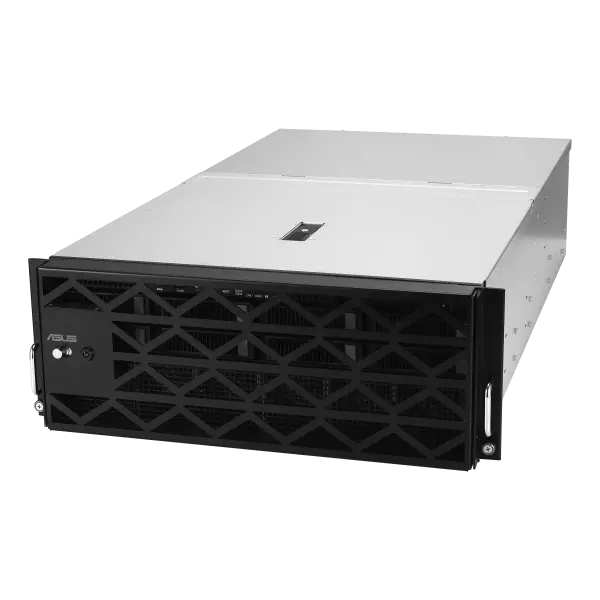

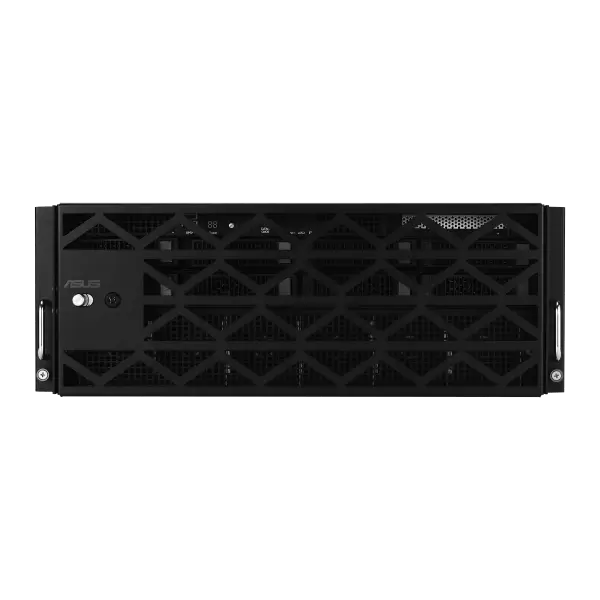

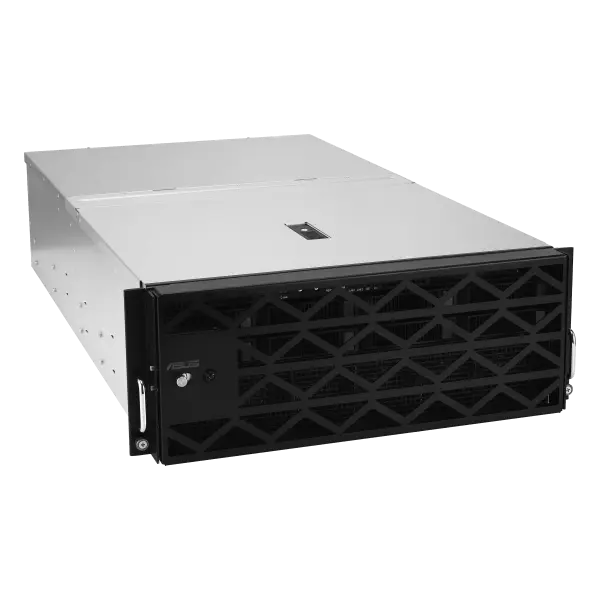

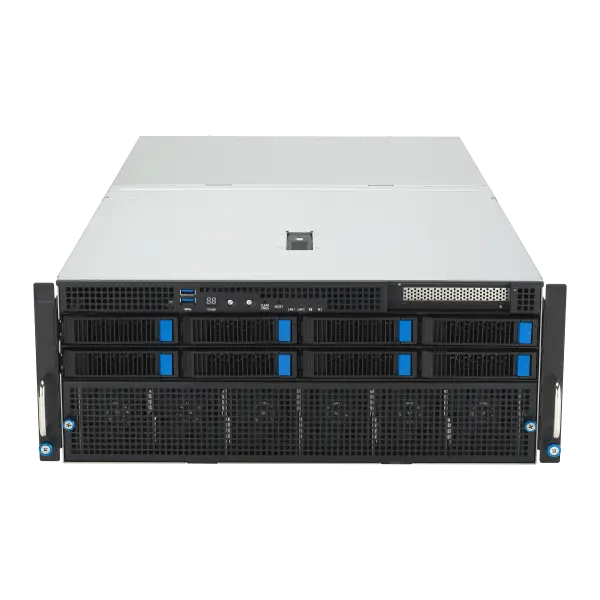

ASUS ESC8000-E11 4U GPU Server
Regular price
Price: Rs. 0.00
Product Specifications
Description
ASUS ESC8000-E11 is a 4U GPU server designed for AI, machine learning, high-performance computing and data-center acceleration. It combines 2 × 4th/5th Gen Intel Xeon Scalable processors, up to 350W per socket with Up to 8 × dual-slot GPUs with NVIDIA NVLink bridge and BlueField DPU support.
Key Features

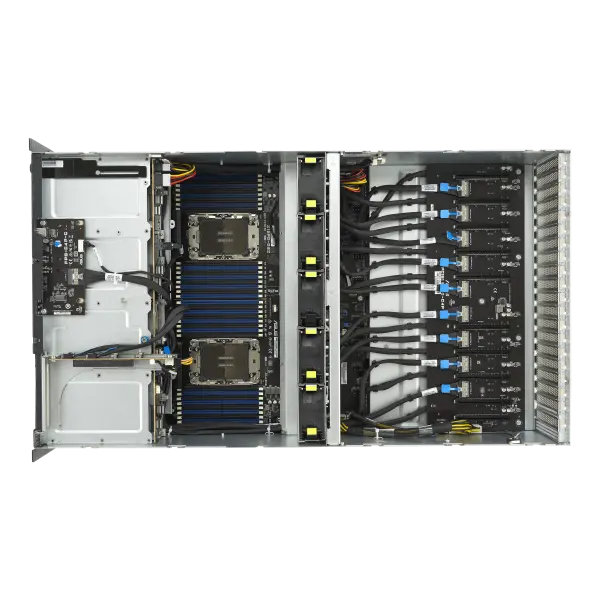

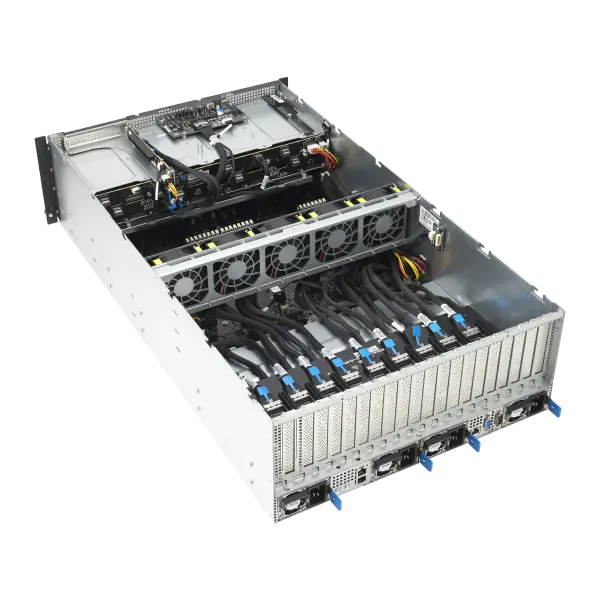

- Eight-GPU capacity: Supports up to eight dual-slot active or passive GPUs for large AI and HPC deployments.
- Xeon Scalable compute: Dual 4th/5th Gen Intel Xeon Scalable processors combine with 32 DDR5 DIMM slots.
- Broad PCIe expansion: Eleven PCIe 5.0 positions provide bandwidth for GPUs, networking and storage adapters.

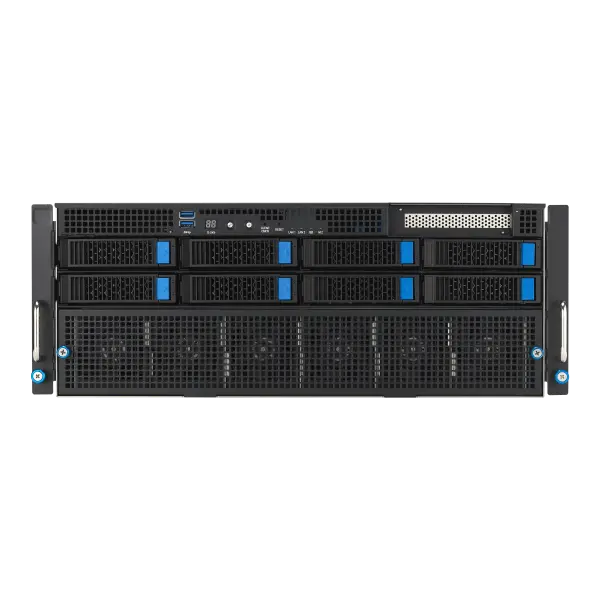

- Tri-mode storage: Eight front hot-swap bays can support NVMe, SATA or SAS storage with the appropriate controller.

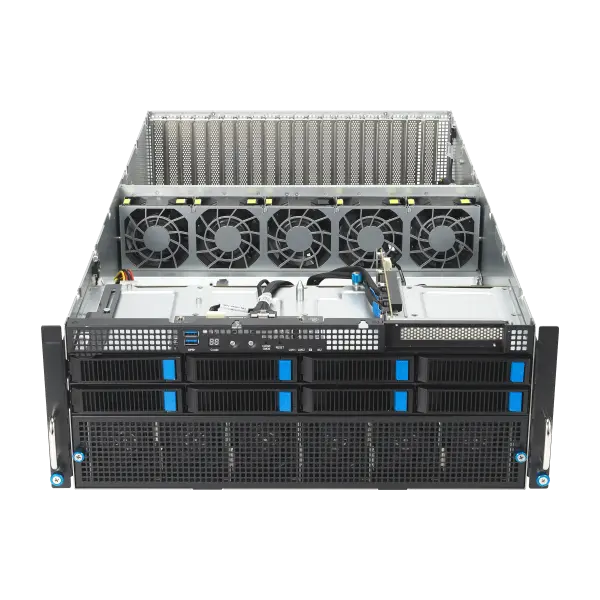

- Redundant cooling and power: Independent CPU/GPU airflow, redundant Titanium PSUs and iKVM support data-center uptime.
Main Specifications
| Processor / System Bus |
2 x Socket 4th Gen Intel® Xeon® Scalable processors (Up to 350W) 5th Gen Intel® Xeon® Scalable processors (Up to 350W) |
|---|---|
| Core Logic | Intel® C741 Chipset |
| Memory |
Total Slots: 16 (8 channels per CPU, 8 DIMM per CPU) Capacity: Maximum up to 4TB per CPU socket Memory Type: 4th Gen: DDR5 4800 MHz RDIMM / 3DS RDIMM (1DPC) 5th Gen: DDR5 5600/4800 MHz RDIMM / 3DS RDIMM (1DPC) 512GB, 256GB, 128GB Intel® Optane™ Persistent Memory 300 Series |
| Expansion Slots |
Rear: 4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen5 x8 link, FH, FL) for single-slot GPU cards 2 x PCIe x16 slots (Gen5 x16 link, FH, HL) Front: 1 x PCIe x8 slot (Gen4 x8 link, LP, HL) |
| Storage |
2 x 2.5" & 4 x 3.5" Hot-swap Storage Bays SKU1: 2 x 2.5" SATA / SAS* / NVMe 2 x 3.5" SATA / SAS* / NVMe 2 x 3.5" SATA / SAS* SKU2 - Build to Order: 2 x 2.5" SATA / SAS* / NVMe 4 x 3.5" SATA / SAS* / NVMe (Occupies 1 x PCIe x8 link) * SAS support requires an HBA / RAID card. ** For SKU1, additional 2 x NVMe support requires a RAID card. 1 x M.2 socket (Gen3 x4 link PCIe mode, up to 2280) |
| Networking |
2 x 1 Gigabit LAN ports (Intel I350 Controller) 1 x Management Port |
| Multi-GPU Support |
Please find the latest GPU support from: https://servers.asus.com/support/gpu |
| Front I/O Ports | 4 x USB 3.2 Gen1 ports |
| Rear I/O Ports |
2 x USB 3.2 Gen1 ports 2 x Gigabit LAN ports (RJ45) 1 x Management port (RJ45) 1 x VGA port |
| Switch / LED |
Front: 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED 1 x Q-Code/Port 80 LED 2 x LAN LEDs Rear: 1 x Power Button/LED 1 x Location LED 1 x Message LED |
| OS Support |
Windows Server Red Hat® Enterprise Linux SUSE® Linux Enterprise Server CentOS Ubuntu VMware * Please find the latest OS support from: https://servers.asus.com/support/os |
| Management Solution |
ASUS Control Center ASUS ASMB11-iKVM (on-board) |
| Regulatory Compliance | BSMI, CE, RCM, FCC (Class A) |
| Dimensions |
800mm x 439.5mm x 88.9mm (2U) 31.50" x 17.30" x 3.50" |
| Weight |
Net Weight: 26 Kg Gross Weight: 36.8 Kg |
| Power Supply |
1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply * 2600W PSU supports 1+1 redundancy with GPU card power consumption ≤ 300W |
| Environment |
Operating temperature: 10℃ ~ 35℃ Non-operating temperature: -40℃ ~ 70℃ Non-operating humidity: 20% ~ 90% (Non-condensing) |
| FRU Part List |
90SB0AZ0-M0XBN1 - MB (Z13PG-D16 V2) 90SC0LJ0-M1XBN1 - Rear PCIe Riser (RF16LX2-C2PG) 90SC0P90-M0XBN1 - GPU Left Riser (RF16LX4-D-C2PF V2) 90SC0PA0-M0XBN1 - GPU Right Riser (RF16RX4-D-C2PF V2) 90SC0PB0-M0XBN1 - Front PCIe Riser (RF8R-C2PF V2) 90SC0PE0-M0XBN1 - SSD BP (BP3LE32G-35-C2PG) 90SK0000-MPNBN0 - ESC4000 Series GPU Power Cable Kit / 12+4P to 6P*2 / L=220mm (4-in-1) / GPU power cable for H100, H100 NVL, Ada Series, L40 and L40S 90SKS000-M2LAN0 - 6P to 6+2P GPU Cable Kit, 220mm 90SKS000-M78AN0 - 6P to 6+2P GPU Cable Kit, 350mm 90SKS000-MJXAN0 - 9540 RAID Cable Kit / Supports NVMe, SATA and SAS 90SKS000-M7DAN0 - PIKE Card Cable Kit 90SKS000-M4EAN0 - CPU Carrier Kit 90SKS000-M41AN0 - 6056 Fan 90SK0000-MWEAN0 - 8038 Fan / Delta 90SKH000-MPRBN0 - 3.5" HDD Tray Toolless V3 90SKS000-M4MAN0 - ESC4000-E11 / Intel EGS 2U STD 90SKP000-M4CAN0 - 2600W Titanium RPSU-R / GOSPOWER / G1302-2600WRA (185mm) 90SKR000-M07AN0 - 1.5U Full Extension Slide Rail Kit |
