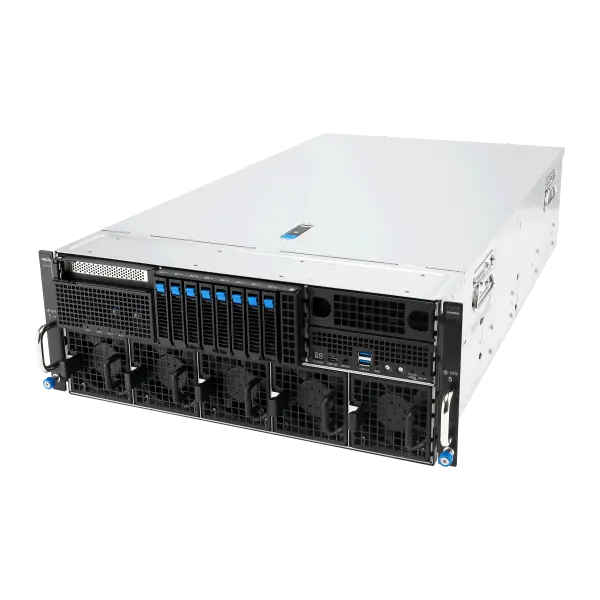

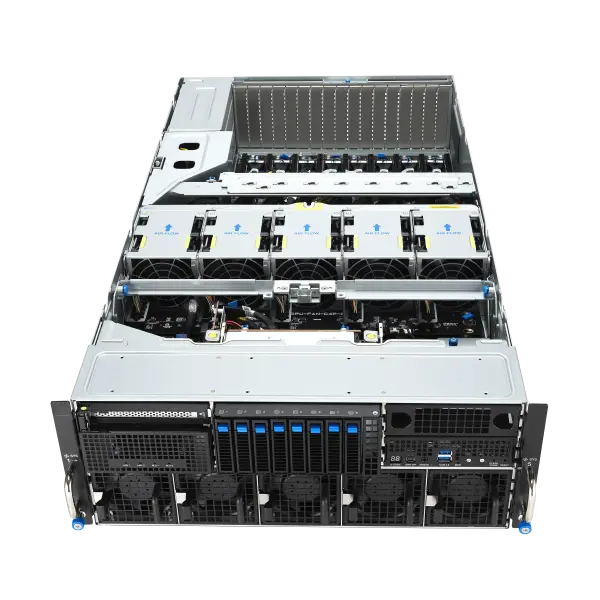

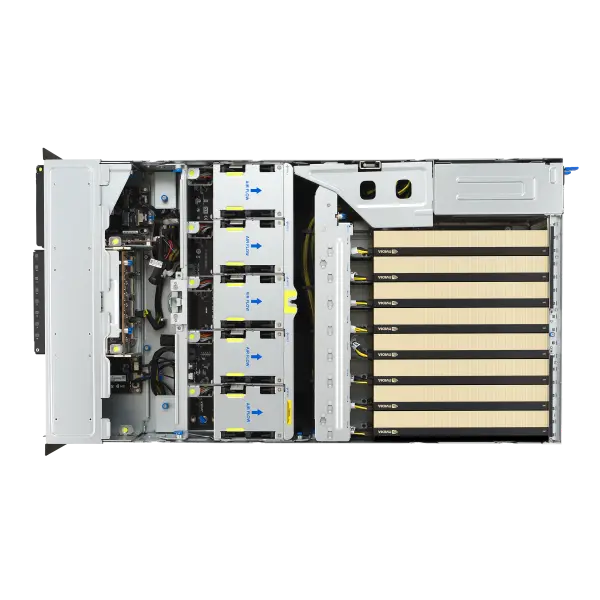

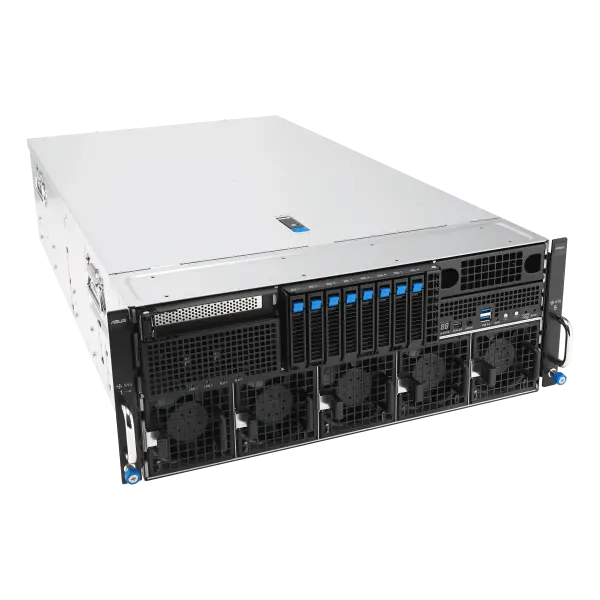

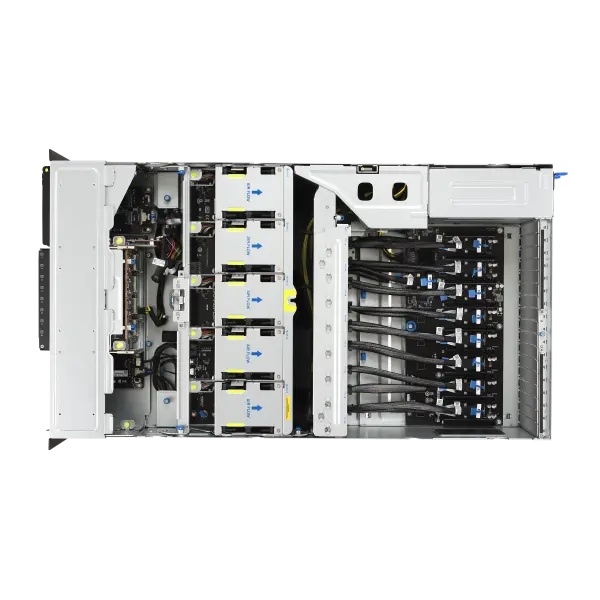

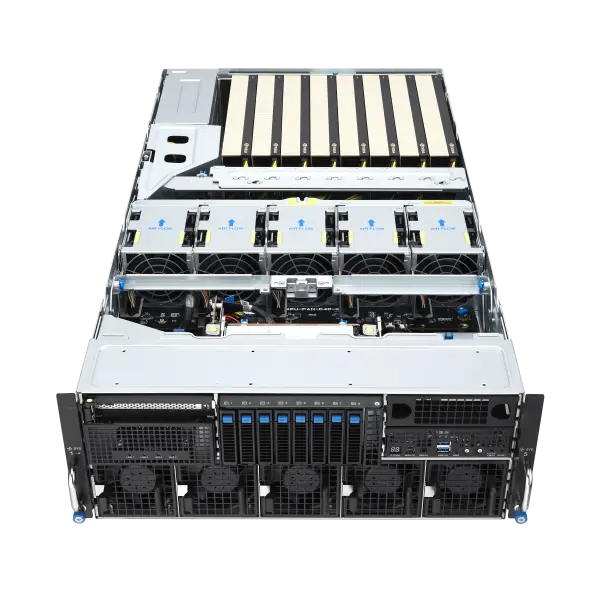

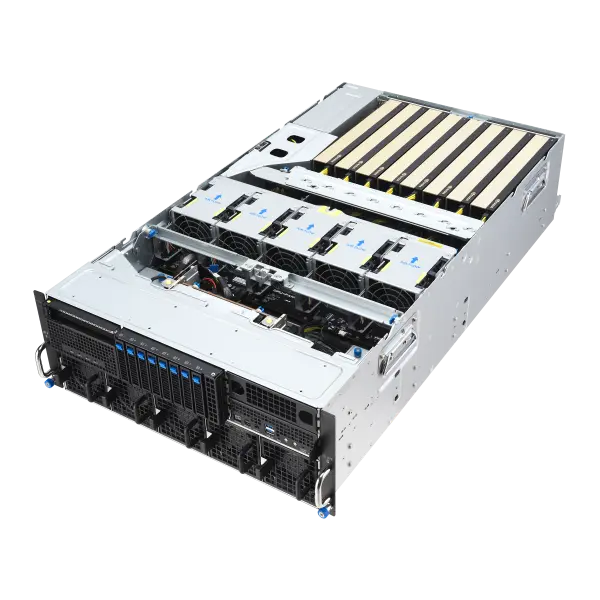

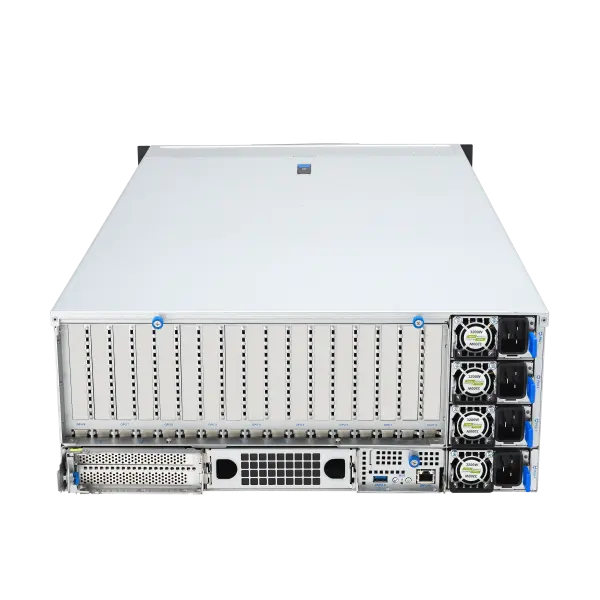

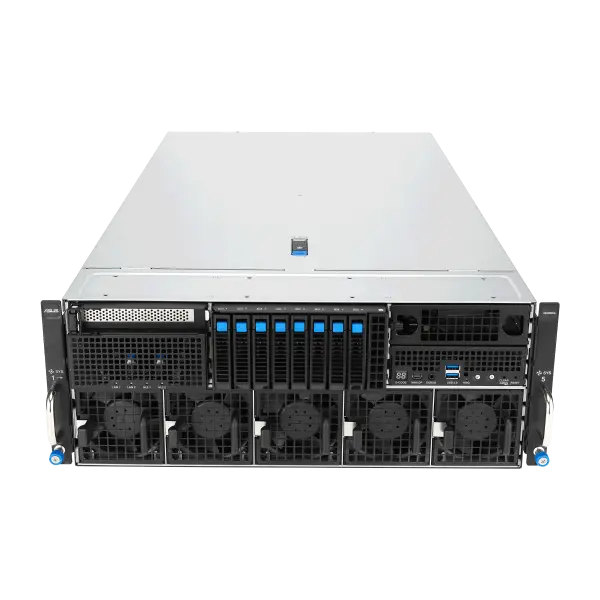

ASUS ESC8000-E12 4U GPU Server
Regular price
Price: Rs. 0.00
Product Specifications
Description

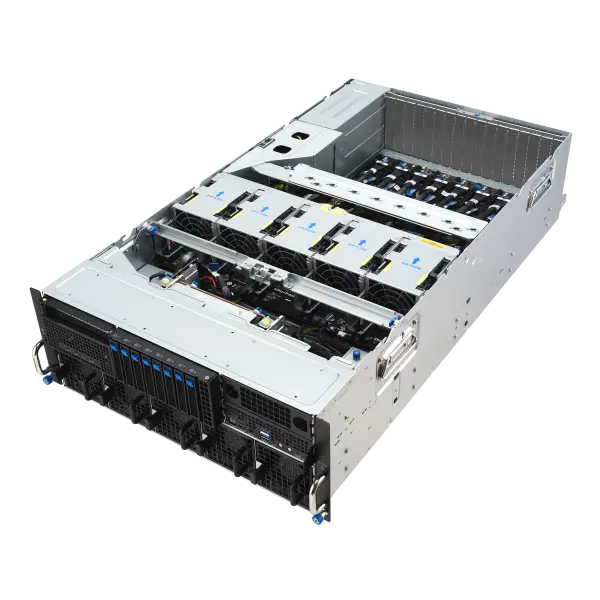

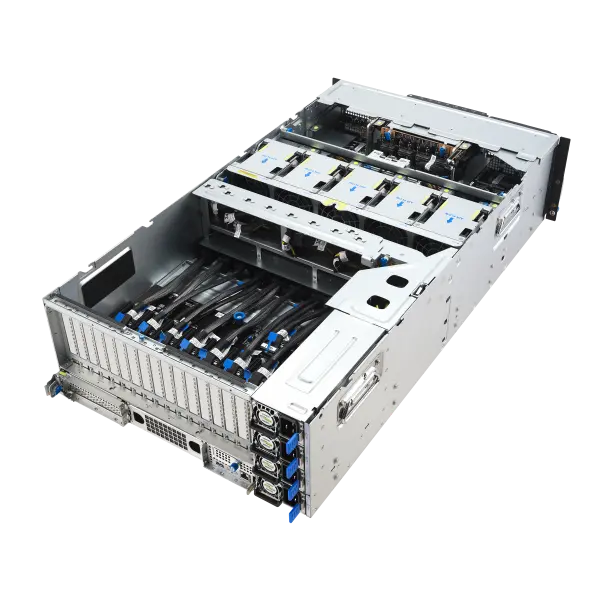

ASUS ESC8000-E12 is a 4U GPU server designed for AI, machine learning, high-performance computing and data-center acceleration. It combines 2 × Intel Xeon 6500/6700 (Xeon 6) processors, up to 350W per socket with Up to 8 × dual-slot GPUs; NVIDIA H200 NVL / RTX PRO and Intel Gaudi 3 configurations.
Key Features

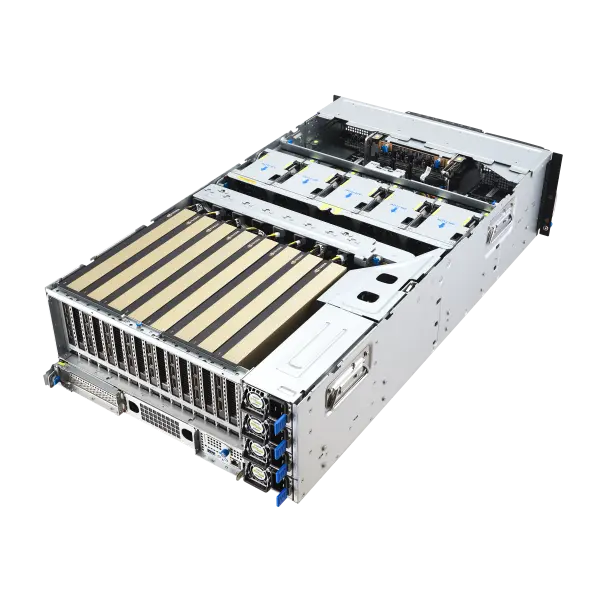

- AI and HPC ready: The 4U design supports up to eight dual-slot accelerator cards for dense compute workloads.
- Direct CPU connectivity: GPU, NIC/DPU and M.2 resources connect directly to the CPU to reduce latency.
- Xeon 6 architecture: Dual Intel Xeon 6500/6700 processors combine with DDR5-6400 memory and PCIe 5.0.
- Flexible storage: Eight front hot-swap bays support multiple NVMe configurations with optional RAID/HBA hardware.
- Redundant infrastructure: Titanium redundant power, hot-swap cooling and ASMB12-iKVM support enterprise deployment.
Main Specifications
| Processor / System Bus |
2 x LGA 4710 sockets Intel® Xeon® 6 processors Up to 350W TDP |
|---|---|
| Memory |
Total Slots: 32 (8 channel per CPU, 16 DIMM per CPU) Capacity: Maximum up to 4TB Memory Type: DDR5 6400 (1DPC) / 5200 (2DPC) RDIMM / 3DS RDIMM Memory Size: 128GB, 96GB, 64GB, 32GB RDIMM 256GB RDIMM 3DS * Refer to ASUS server AVL for the latest update |
| Expansion Slots |
SKU1 (with RAID): 8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FH/FL) 1 x PCIe x16 for NIC / BlueField-3 cards (Gen5 x16 link, FH/FL) 1 x PCIe x16 for NIC cards (Gen5 x8 link, FH/HL) 1 x PCIe x16 for HBA / RAID cards (Gen5 x8 link, FH/HL)* SKU2 (without RAID): 8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FH/FL) 1 x PCIe x16 for NIC / BlueField-3 cards (Gen5 x16 link, FH/FL) 1 x PCIe x16 for NIC cards (Gen5 x8 link, FH/HL)* * Located on the front riser |
| Storage |
8 x 2.5" Front Hot-swap Storage Bays SKU1 (with RAID): Up to 6 NVMe devices based on the installed HBA / RAID card model 2 x M.2 sockets (Gen5 x4 link, up to 22110) SKU2 (without RAID): Up to 4 NVMe devices |
| Networking | 1 x Management Port |
| Multi-GPU Support |
Please find the latest GPU support from: https://servers.asus.com/support/gpu |

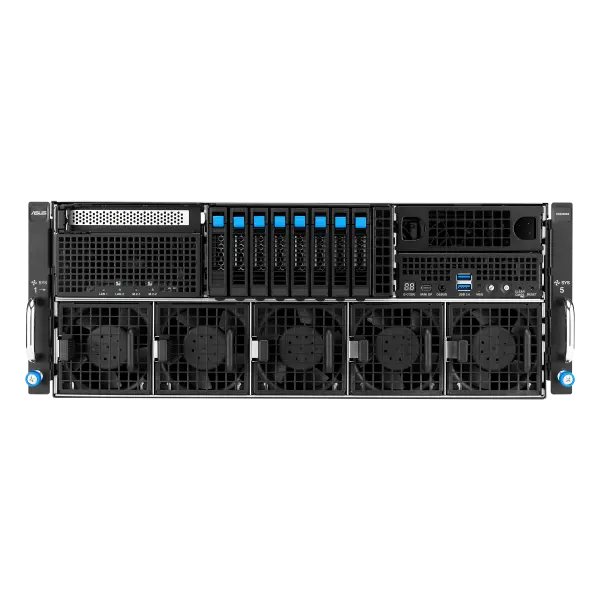

| Front I/O Ports |
1 x Mini DisplayPort 2 x USB 5Gbps ports 1 x Debug port |

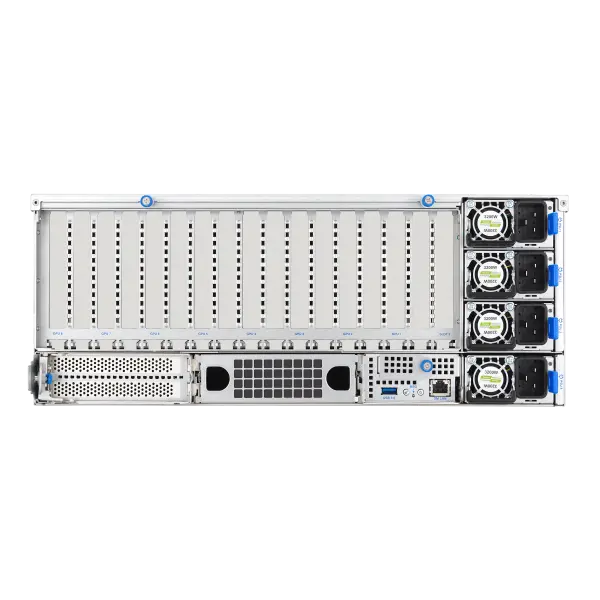

| Rear I/O Ports |
1 x USB 5Gbps port 1 x RJ-45 management LAN port |
| Switch / LED |
Front: 1 x Power switch/LED 1 x Location switch/LED 1 x Message LED 1 x Clear CMOS switch 1 x Reset Switch 2 x M.2 LEDs* 1 x Q-code/Port 80 LED Rear: 1 x Power switch/LED 1 x Location switch/LED 1 x Message LED * SKU1 (with RAID) only |
| OS Support |
Please find the latest OS support from: https://servers.asus.com/support/os |
| Management Solution |
ASUS Control Center Enterprise (in-band) ASMB12-iKVM (out-of-band / BMC AST2600) |
| Regulatory Compliance | BSMI, CB, CE, FCC (Class A), RCM |
| Dimensions |
800mm x 439.5mm x 175mm 31.5" x 17.3" x 6.9" |
| Form Factor | 4U |
| Weight |
Net Weight: 45 Kg Gross Weight: 56 Kg |
| Power Supply |
3+1 redundant 3200W 80 PLUS Titanium power supply 220-240 Vac, 16A (x4), 50/60Hz |
| Environment |
Operating temperature: 10°C ~ 35°C* Non-operating temperature: -40°C ~ 60°C Non-operating humidity: 20% ~ 95% (Non-condensing) * For operating temperatures above 30°C, please contact your local sales representative |
| FRU Part List |
Intel Xeon 6 CPU CARRIER KIT (E2A): 90SKS000-MUKBN0 Intel Xeon 6 CPU CARRIER KIT (E2B): 90SKS000-MULBN0 Intel Xeon 6 CPU CARRIER KIT (E2A+E2B): 90SKS000-MUMBN0 GPU Fan module 80x80x80mm: 90SKS000-MR0BN0 System Fan module 80x80x80mm: 90SKS000-MR1BN0 Intel Xeon 6 CPU HS: 90SKS000-MJTAN0 HDD TRAY TOOLLESS ASY: 90SKH000-MPPBN0 3200W TITANIUM PSU: 90SKS000-MMCBN0 1M RAIL KIT: 90SKS000-MR2BN0 2U RAIL KIT (support cable arm): 90SKS000-MR3BN0 CABLE ARM: 90SKS000-MR4BN0 9560-16I RAID Cable Kit: 90SKS000-MUHBN0 9670-24I RAID Cable Kit: 90SKS000-MUIBN0 MINIDP TO VGA DONGLE: 90SKS000-MU3BN0 |
