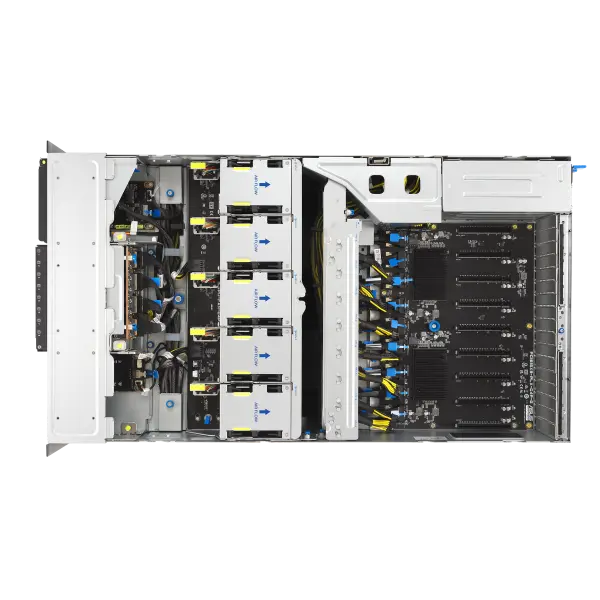

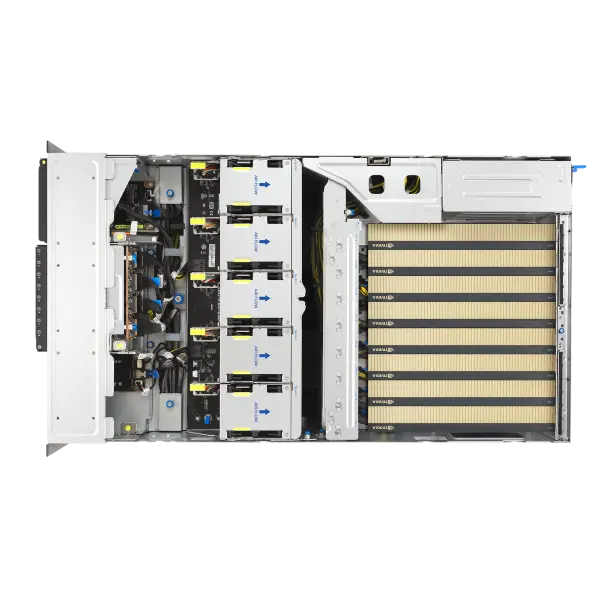

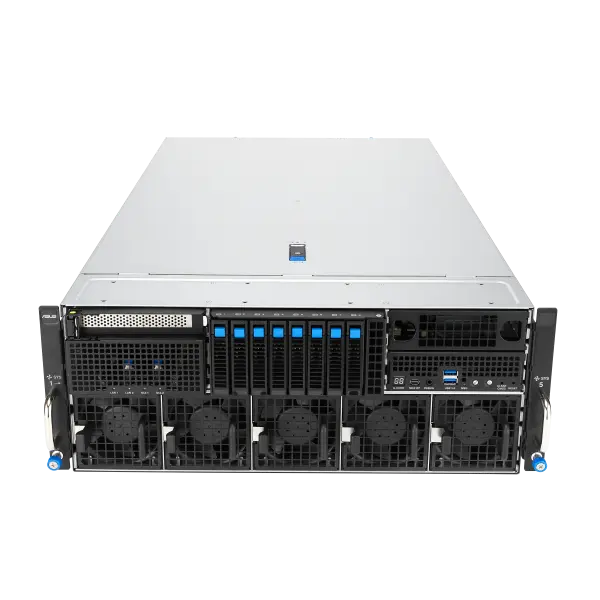

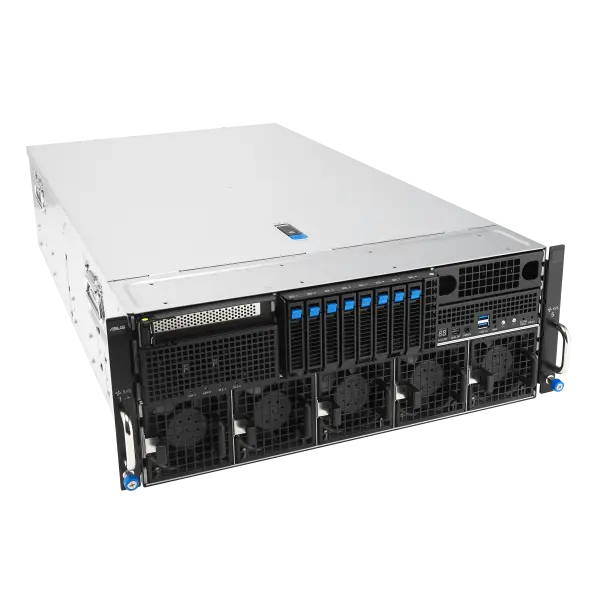

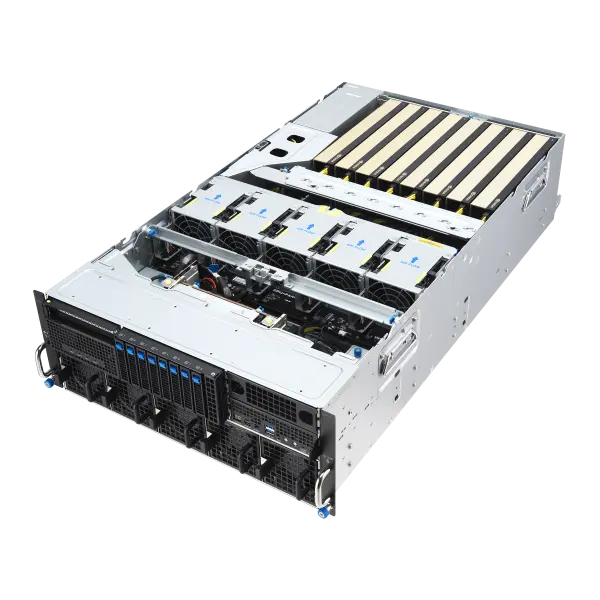

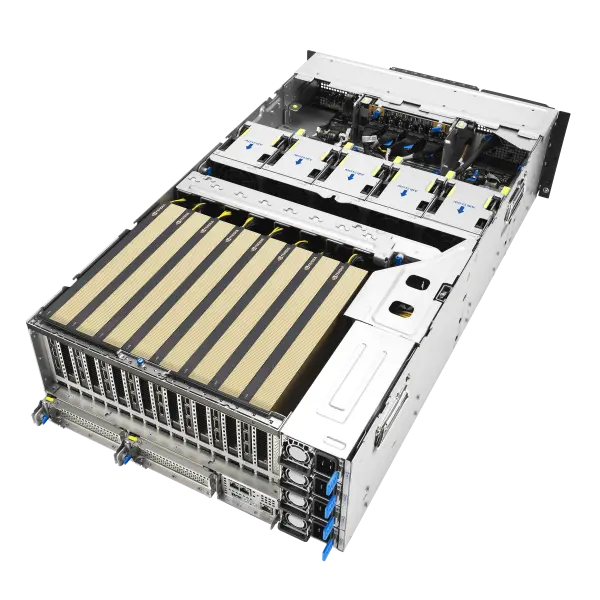

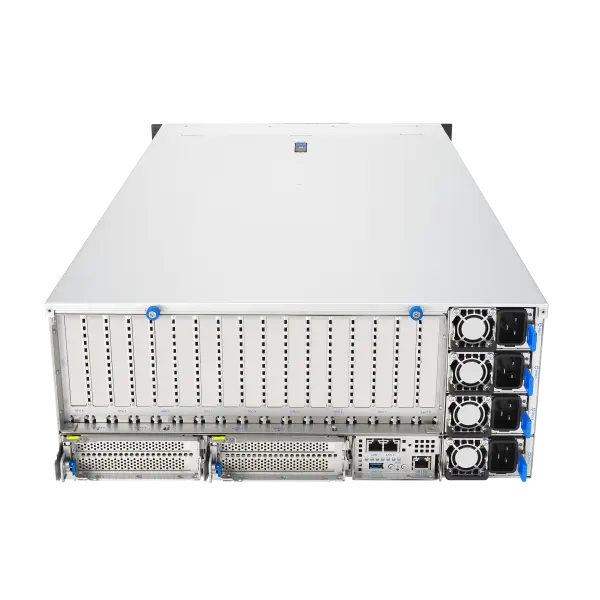

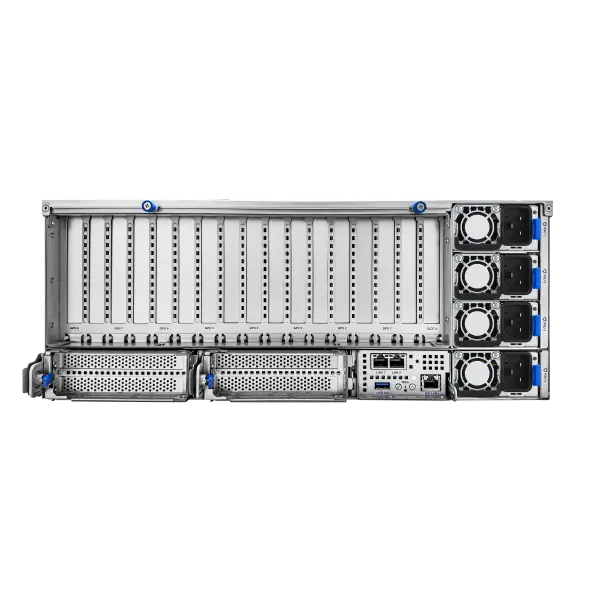

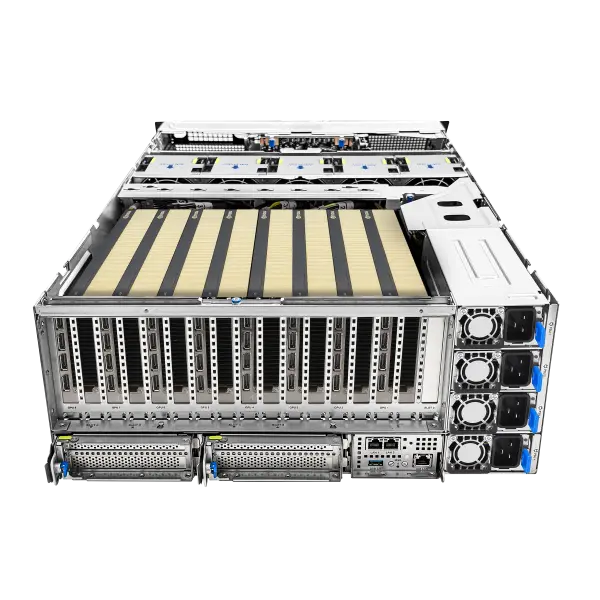

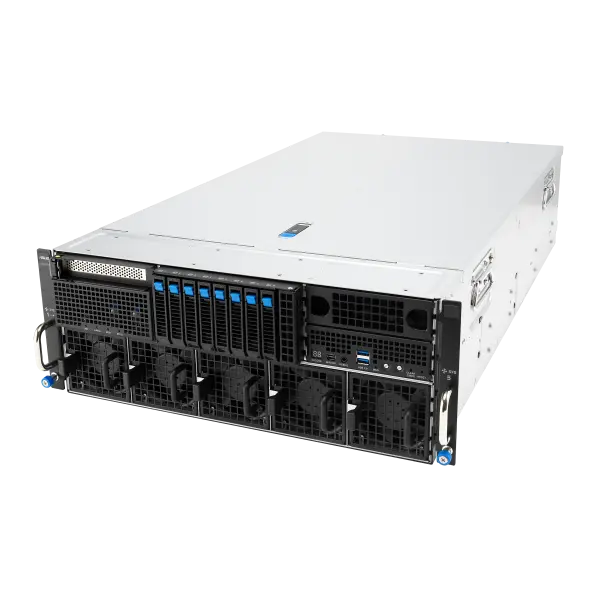

ASUS ESC8000A-E13P 4U GPU Server
Regular price
Price: Rs. 0.00
Product Specifications
Description
ASUS ESC8000A-E13P is a 4U GPU server designed for AI, machine learning, high-performance computing and data-center acceleration. It combines 2 × AMD EPYC 9005/9004 series processors, up to 500W per socket with Up to 8 × dual-slot 600W GPUs; NVIDIA H200 NVL / RTX PRO and AMD Instinct configurations.
Key Features
- MGX-ready GPU platform: The 4U server supports up to eight high-power dual-slot GPUs for AI, HPC and enterprise acceleration.
- EPYC 9005/9004: Dual AMD EPYC sockets pair high core counts with 24 DDR5 DIMM slots and PCIe 5.0 connectivity.
- Expanded networking I/O: Five high-bandwidth NIC or BlueField-3 positions complement the eight dedicated GPU slots.
- All-NVMe storage: Eight front NVMe hot-swap bays and dual M.2 Gen5 slots support fast local data and boot storage.
- Enterprise management: ASMB12-iKVM, ASUS Control Center Enterprise and redundant Titanium power simplify fleet management.
Main Specifications
| Processor / System Bus |
2 x Socket SP5 (LGA 6096) AMD EPYC™ 9005 series processors* * Up to 500W cTDP, TDP support varies by configuration |
|---|---|
| Memory |
Total Slots: 24 (12 channel per CPU, 12 DIMM per CPU) Capacity: Maximum up to 3TB Memory Type: DDR5 6400/5600 RDIMM Memory Size: 128GB, 96GB, 64GB, 32GB, 16GB RDIMM * Refer to ASUS server AVL for the latest update |
| Expansion Slots |
Up to 14 slots Rear: 8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FH/FL) 5 x PCIe x16 for NIC / BlueField-3 cards (Gen5 x16 link, FH/HL) Front: 1 x PCIe x16 (Gen5 x8 link, FH/HL) |
| Storage |
8 x 2.5" Front Hot-swap Storage Bays Default SKU*: Backplane supports up to 8 x NVMe RAID SKU: Backplane supports up to 4 or 6 NVMe drives based on the installed HBA / RAID card model * MGX compliance 2 x M.2 sockets, supports up to 22110 type (PCIe Gen5 x4 link) M.2 board supports up to 2 x NVMe |
| Networking |
2 x 10GbE LAN ports (RJ45, X710-AT2) 1 x Management Port |
| Multi-GPU Support |
Please find the latest GPU support from: https://servers.asus.com/support/gpu |
| Front I/O Ports |
1 x Mini DisplayPort 2 x USB 5Gbps ports 1 x Debug port |
| Rear I/O Ports |
1 x USB 5Gbps port 2 x RJ-45 LAN ports 1 x RJ-45 management LAN port |
| Switch / LED |
Front: 1 x Power switch/LED 1 x Location switch/LED 1 x Message LED 1 x Clear CMOS switch 1 x Reset Switch 2 x M.2 LEDs 2 x LAN LEDs 1 x Q-code/Port 80 LED Rear: 1 x Power switch/LED 1 x Location switch/LED 1 x Message LED |
| OS Support |
Please find the latest OS support from: https://servers.asus.com/support/os |
| Management Solution |
ASUS Control Center Enterprise (in-band) ASMB12-iKVM (out-of-band / BMC AST2600) |
| Regulatory Compliance | BSMI, CB, CE, FCC (Class A), RCM |
| Dimensions |
800mm x 439.5mm x 175mm 31.5" x 17.3" x 6.9" |
| Form Factor | 4U |
| Weight |
Net Weight: 45 Kg Gross Weight: 56 Kg |
| Power Supply |
3+1 redundant 3200W 80 PLUS Titanium power supply 220-240 Vac, 16A (x4), 50/60Hz |
| Environment |
Operating temperature: 10°C ~ 35°C Non-operating temperature: -40°C ~ 60°C Non-operating humidity: 20% ~ 95% (Non-condensing) * For operating temperatures above 30°C, please contact your local sales representative |
| FRU Part List |
Motherboard: 90SB0D90-M5XBN0 GPU Fan module 80x80x80mm: 90SKS000-MR0BN0 System Fan module 80x80x80mm: 90SKS000-MR1BN0 2U Standard CPU heatsink: 90SKS000-M4LAN0 HDD TRAY TOOLLESS ASY: 90SKH000-MPPBN0 3200W TITANIUM PSU: 90SKS000-MMCBN0 1M RAIL KIT: 90SKS000-MR2BN0 2U RAIL KIT (support cable arm): 90SKS000-MR3BN0 CABLE ARM: 90SKS000-MR4BN0 9670-24I RAID Cable Kit: 90SKS000-MQXBN0 9560-16I RAID Cable Kit: 90SKS000-MQYBN0 MINIDP TO VGA DONGLE: 90SKS000-MU3BN0 |
