CE12804-AC1 is CE12804 AC/HVDC Assembly Chassis with CMUs and Fans.

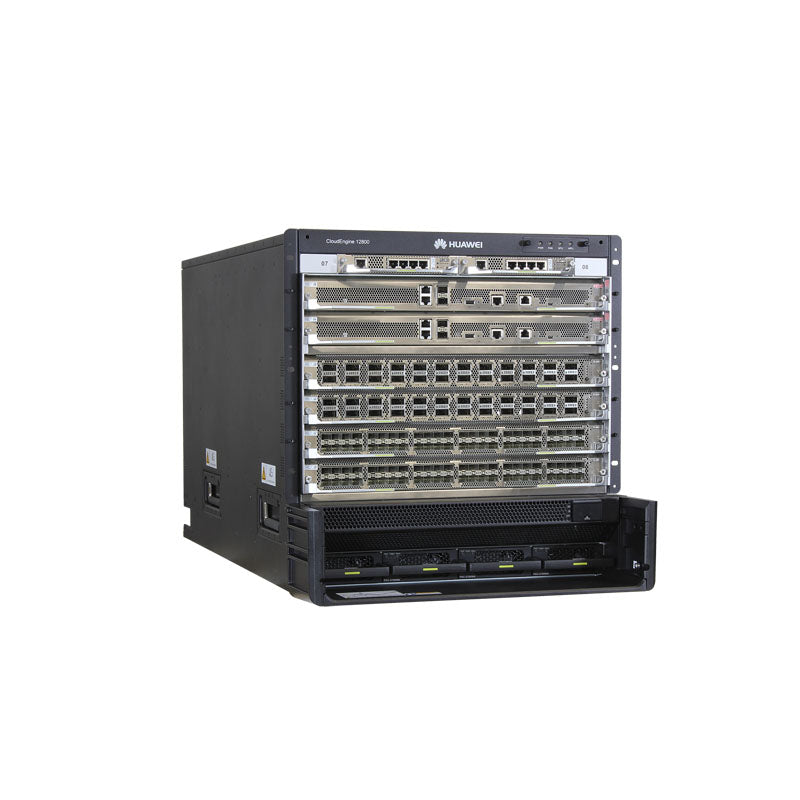

Figure 1 shows the appearance of CE12804-AC1.
Table 1 shows the Quick Specs.
|
Product Code |
|
|
Switching Capacity? |
45/ 258 |
|
Forwarding Rate? |
17,280 |
|
Service Slots |
4 |
|
Switching Fabric? |
6 |
|
LPU slots |
4 (slot IDs: 01 to 04) |
|
MPU slots |
2 (slot IDs: 05 to 06) |
|
CMU slots |
2 (slot IDs: 07 to 08) |
|
SFU slots |
6 (slot IDs: 09 to 14) |
|
Power slots |
4 (slot IDs: PM1 to PM4) |
|
Fan slots |
9 (slot IDs: FAN1 to FAN9) |
Figure 2 shows the front panel of CE12804-AC1.
Note:
|
① |
Two CMUs |
② |
Cable management frame NOTE: Cable management frames are installed on the left and right sides of a chassis to route cables in each slot. |
|
③ |
Front ESD jack NOTE: When maintaining components at the front of a chassis, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack. |
④ |
Power modules |
|
⑤ |
Two MPUs The CE12804 chassis uses the CE-MPUA. |
⑥ |
LPUs CE12804 chassis: supports 4 LPUs. |
* CE12804-AC1 has only AC/HVDC Assembly Chassis with CMUs and Fans, if you need other modules or cards, you must be purchased separately.
Figure 3 shows the back panel of CE12804-AC1.
|
① |
Serial number label |
② |
Rear ESD jack ? |
|
③ |
?Handle |
④ |
Power distribution unit |
|
⑤ |
MAC address label |
⑥ |
Fan modules |
|
⑦ |
SFU |
⑧ |
Two ground points for a dual-hole ground lug, with a yellow grounding label attached |
* CE12804-AC1 has only AC/HVDC Assembly Chassis with CMUs and Fans, if you need other modules or cards, you must be purchased separately.
Table 2 shows the recommended elements for the CE12804-AC1.
|
Model |
Description |
|
AC power module |
|
|
2700W AC Power Supply |
|
|
FE-SFP optical transceiver |
|
|
Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) |
|
|
Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) |
|
|
Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) |
|
|
GE-SFP optical transceiver |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
|
|
10G-SFP+ optical transceiver |
|
|
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
|
|
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
|
|
40GE CFP optical transceiver |
|
|
High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,10km,stright LC) |
|
|
High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,40km,stright LC) |
|
|
40GE QSFP+ optical transceiver |
|
|
40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver) |
|
|
40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC) |
|
|
100GE CFP optical transceiver |
|
|
High Speed Transceiver,CFP,100G,Multimode Module(850nm,10*10G,0.1km,MPO) |
|
|
CFP, 100G, Single-mode Module(1310nm band,4*25G,10km,stright LC) |
|
|
High Speed Transceiver,CFP,100G,Single-mode Module(1310nm band,4*25G,40km,stright LC) |
|
|
GE copper transceiver |
|
|
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
|
|
100GE interface card |
|
|
12-Port-100GE Interface Card(EG,CFP2) |
|
|
8-Port-100G Interface Card(EC,CXP) |
|
|
10GE interface card |
|
|
Huawei 48-port 100M/1000M/10G Base-T Interface Card(EC,RJ45) CE-L48XT-EC |
|
|
48-Port-10GE Interface Card(EC,SFP+) |
|
|
40GE interface card |
|
|
24-Port-40G Interface Card(EC1,QSFP+) |
|
|
12-Port-40G Interface Card(EF,QSFP+) |
|
|
Firewall module |
|
|
Huawei CE12800 NGFW Module A CE-FWA, with HW General Security Platform Software |
|
|
GE interface card |
|
|
48-Port 10/100/1000BASE-T Interface Card(ED,RJ45) |
|
|
48-Port 100/1000BASE-X Interface Card(ED,SFP) |
Table 3 shows the comparison of CE12804-AC1 and CE12804S-DC.
|
Product Code |
||
|
Switching Capacity? |
45/ 258 |
45/ 258 |
|
Forwarding Rate? |
17,280 |
17,280 |
|
Service Slots |
4 |
4 |
|
Switching Fabric? |
6 |
2 |
|
LPU slots |
4 (slot IDs: 01 to 04) |
4 (slot IDs: 01 to 04) |
|
MPU slots |
2 (slot IDs: 05 to 06) |
2 (slot IDs: 05 to 06) |
|
CMU slots |
2 (slot IDs: 07 to 08) |
None (monitoring function integrated on the MPU) |
|
SFU slots |
6 (slot IDs: 09 to 14) |
2 (slot IDs: 07 to 08) |
|
Power slots |
4 (slot IDs: PM1 to PM4) |
4 (slot IDs: PM1 to PM4) |
|
Fan slots |
9 (slot IDs: FAN1 to FAN9) |
3 (slot IDs: FAN1 to FAN3) |
