CE5810-24T4S-EI-F is one of the Huawei CE5810-24T4S-EI Switches. Huawei CE5810-24T4S-EI provides 24 * GE line-speed ports plus 4 * 10 GE upstream ports for stacking up to 16 switches. 10 GE ports enable creation of a non-blocking stack that can extend across geographical distances between data centers. Using the Huawei VRP8 software platform, CE5800 switches support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system). In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. CE5800 switches provide high-density GE access to help enterprises build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches for enterprise campus networks.

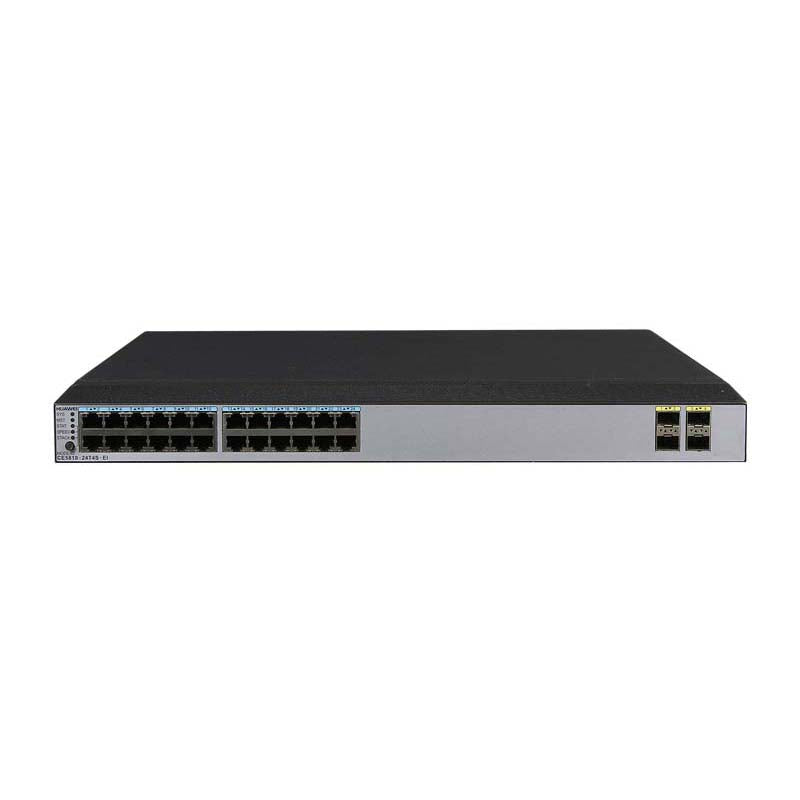

Figure 1 shows the appearance of CE5810-24T4S-EI-F.
Table 1 shows the Quick Specs.
|
Product Code |
|
|
Part Number |
02350EYF |
|
Software Version |
V100R002C00 and later |
|
Base-T Ports |
24 |
|
SFP+ Ports |
4 |
|
QSFP+ Ports |
0 |
|
Switching Capacity |
128 Gbit/s |
|
Forwarding Rate |
96 Mpps |
|
Rated voltage range(with power module) |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
|
Maximum power consumption |
68 W |
|
Fan type |
Pluggable fan module |
|
Airflow Design |
Front-to-back or back-to-front |
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
|
Weight (fully loaded) |
8 kg (17.6 lb) |
Figure 2 shows the CE5810-24T4S-EI-F rear view (port side).
Note:
|
① |
Twenty-four 10/100/1000BASE-T Ethernet electrical ports |
|
② |
Four 10GE SFP+ Ethernet optical ports |
Figure 3 shows the CE5810-24T4S-EI-F front view (power supply side).
Note:
|
① |
Power supply slot 1 |
|
② |
Fan slot 1 |
|
③ |
Console port |
|
④ |
ETH management port |
|
⑤ |
Bar code label |
|
⑥ |
USB port |
|
⑦ |
Fan slot 2 |
|
⑧ |
Power supply slot 2 |
Table 2 shows the recommended elements for the CE5810-24T4S-EI-F.
|
Model |
Description |
|
GE-SFP Optical Transceiver |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
|
|
10G-SFP+ Optical Transceiver |
|
|
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
|
|
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
|
|
Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
|
|
GE Copper Transceiver |
|
|
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
|
|
FAN-40SB |
|
|
Fan box(SB,Front to Back,FAN panel side intake) |
|
|
Fan box(SB,Back to Front,FAN panel side exhaust) |
Table 3 shows the comparison of CE5810-24T4S-EI-F and CE5810-48T4S-EI-B.
|
Product Code |
||
|
Part Number |
02350EYH |
02350EYX |
|
Software Version |
V100R002C00 and later |
V100R002C00 and later |
|
Base-T Ports |
24 |
48 |
|
SFP+ Ports |
4 |
4 |
|
QSFP+ Ports |
0 |
0 |
|
Switching Capacity |
128 Gbit/s |
176 Gbit/s |
|
Forwarding Rate |
96 Mpps |
132 Mpps |
|
Maximum power consumption |
68 W |
92W |
Do you have any question about the CE5810-24T4S-EI-F
|
Base-T Ports |
24 |
|
SFP+ Ports |
4 |
|
QSFP+ Ports |
- |
|
Switching Capacity |
128 Gbit/s |
|
Forwarding Rates |
96 Mpps |
|
Airflow Design |
Front-to-back or back-to-front |
|
Device Virtualization |
iStack |
|
Super Virtual Fabric (SVF) |
|
|
Network Virtualization |
M-LAG |
|
TRILL (CE5855 & CE5850) |
|
|
VM Awareness |
Agile Controller |
|
SDN |
Open Programmability System (OPS) |
|
Traffic Analysis |
NetStream |
|
sFlow |
|
|
VLAN |
Adding access, trunk, and hybrid interfaces to VLANs |
|
Default VLAN |
|
|
QinQ |
|
|
MUX VLAN |
|
|
GVRP |
|
|
ACL |
ingress: 2.25k |
|
MAC Address Table |
maximum: 32k |
|
Dynamic learning and aging of MAC addresses |
|
|
Static, dynamic, and black hole MAC address entries |
|
|
Packet filtering based on source MAC addresses |
|
|
MAC address limiting based on ports and VLANs |
|
|
ARP (maximum) |
8k |
|
IPv4 FIB (maximum) |
12k |
|
IP Routing |
IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
|
IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ (not supported by CE5855) |
|
|
IPv6 FIB (maximum) |
6k |
|
IPv6 |
IPv6 Neighbor Discovery (ND) (not supported by CE5855) |
|
Path MTU Discovery (PMTU) (not supported by CE5855) |
|
|
TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6 |
|
|
Multicast FIB (maximum) |
8k |
|
Multicast |
IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
|
IGMP snooping |
|
|
IGMP proxy |
|
|
Fast leave of multicast member interfaces |
|
|
Multicast traffic suppression |
|
|
Multicast VLAN |
|
|
Reliability |
LACP |
|
STP, RSTP, VBST, MSTP |
|
|
BPDU protection, root protection, and loop protection |
|
|
Smart Link and multi-instance |
|
|
DLDP |
|
|
ERPS (G.8032) |
|
|
VRRP, VRRP load balancing, and BFD for VRRP |
|
|
BFD for BGP/IS-IS/OSPF/Static route |
|
|
QoS |
Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
|
Actions of ACL, CAR, re-marking, and scheduling |
|
|
Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR |
|
|
Congestion avoidance mechanisms, including WRED and tail drop |
|
|
Traffic shaping |
|
|
Configuration and Maintenance |
Console, Telnet, and SSH terminals |
|
Network management protocols, such as SNMPv1/v2c/v3 |
|
|
File upload and download through FTP and TFTP |
|
|
BootROM upgrade and remote upgrade |
|
|
802.3az Energy Efficient Ethernet (EEE) |
|
|
Hot patches |
|
|
User operation logs |
|
|
Zero-Touch Provisioning (ZTP) |
|
|
Security and Management |
802.1x authentication |
|
Command line authority control based on user levels, preventing unauthorized users from using commands |
|
|
DoS, ARP, and ICMP attack defenses |
|
|
Port isolation, port security, and sticky MAC |
|
|
Binding of the IP address, MAC address, interface number, and VLAN ID |
|
|
Authentication methods, including AAA, RADIUS, and HWTACACS |
|
|
Remote Network Monitoring (RMON) |
|
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
|
Weight (fully loaded) |
8 kg (17.6 lb) |
|
Environmental Parameters |
Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) |
|
Storage temperature: -40°C to 70°C (-40°F to 158°F) |
|
|
Relative humidity: 5% to 95%, non-condensing |
|
|
Operating Voltage |
AC: 90V to 290V |
|
DC: -38.4V to -72V |
|
|
Maximum Power Consumption |
68W |
