Huawei CE6810-48S-LI
Regular price
Price: Rs. 405,620.00
Product Specifications
Description
CE6810-48S-LI Switch 48-Port 10GE SFP+,Without Fan and Power Module.
Quick Specs

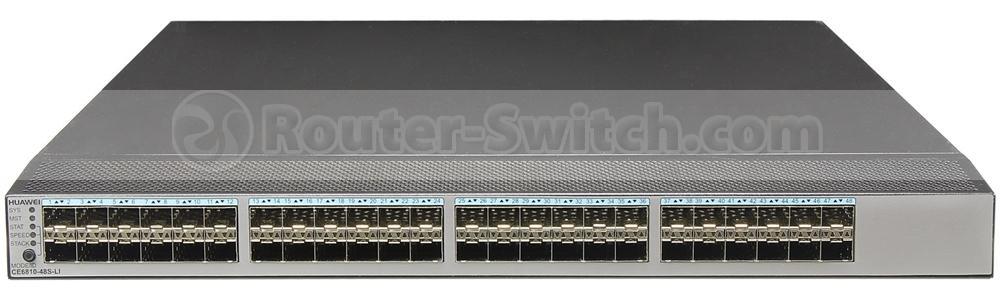

Figure 1 shows the appearance of CE6810-48S-LI.
Table 1 shows the Quick Specs.
|
Product Code |
|
|
Part Number |
02350AQA |
|
Software Version |
V100R003C10 and later |
|
Fixed GE interfaces |
None |
|
Fixed 10GE interfaces |
48*10GE SFP+ |
|
Fixed 40GE interfaces |
None |
|
Fixed 100GE interfaces |
None |
|
Switching Capacity |
960 Gbit/s |
|
Forwarding Rate |
720 Mpps |
|
Maximum power consumption |
178W |
|
Airflow Design |
Front-to-back or back-to-front, depending on the fan modules and power modules used in the chassis |
|
Dimensions (W x D x H) |
442 mm x 600 mm x 43.6 mm |
|
Weight (fully loaded) |
10.2 kg (22.5 lb) |
Product Details
Figure 2 shows the rear (port side) panel of CE6810-48S-LI.
Note:
|
① |
Forty-eight 10GE SFP+ Ethernet optical ports |
Figure 3 shows the front (power supply side) panel of CE6810-48S-LI.
Note:
|
① |
Power supply slot 1 |
|
② |
Fan slot 1 |
|
③ |
Console port |
|
④ |
Bar code label |
|
⑤ |
Fan slot 2 |
|
⑥ |
Power supply slot 2 |
|
⑦ |
USB port |
|
⑧ |
ETH management port |
The Modules
Table 2 shows the recommended elements for the CE6810-48S-LI.
|
Model |
Description |
|
GE-SFP Optical Transceiver |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
|
|
10G-SFP+ Optical Transceiver |
|
|
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
|
|
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
|
|
40GE QSFP+ optical transceiver |
|
|
? |
40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver) |
|
? |
40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC) |
|
GE Copper Transceiver |
|
|
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
|
Compare to Similar Items
Table 3 shows the comparison of CE6810-48S-LI and CE6810-48S4Q-LI.
|
Product Code |
||
|
Software Version |
V100R003C10 and later |
V100R003C10 and later |
|
Fixed 10GE interfaces |
48*10GE SFP+ |
48*10GE SFP+ |
|
Fixed 40GE interfaces |
None |
4*40GE QSFP+ A 40GE interface can be split into four 10GE interfaces |
|
Fixed 100GE interfaces |
None |
None |
|
Switching Capacity |
960 Gbit/s |
1.28 Tbit/s |
|
Forwarding Rate |
720 Mpps |
960 Mpps |
|
Maximum power consumption |
178W |
238W |
Get more information
Do you have any?question about?the?CE6810-48S-LI
Main Specifications
|
10G Base-T Ports |
0 |
|
SFP+ Ports |
48 |
|
QSFP+ Ports |
0 |
|
Switching Capacity |
960 Gbit/s |
|
Forwarding Rate |
720 Mpps |
|
Airflow Design |
Front-to-back or back-to-front |
|
Device Virtualization |
iStack |
|
Super Virtual Fabric (SVF) |
|
|
Network Virtualization |
M-LAG |
|
TRILL (CE6810EI) |
|
|
VM Awareness |
Agile Controller |
|
Network Convergence |
FCoE |
|
DCBX, PFC, and ETS |
|
|
Programmability |
OpenFlow |
|
OPS |
|
|
Puppet and OVSDB plugins released on open source websites (CE6810EI) |
|
|
Linux container for open source and customization programming |
|
|
Traffic Analysis |
NetStream |
|
sFlow |
|
|
VLAN |
Adding access, trunk, and hybrid interfaces to VLANs |
|
Default VLAN |
|
|
QinQ |
|
|
MUX VLAN |
|
|
GVRP |
|
|
ACL |
Ingress: 1,250 |
|
MAC Address Table |
Maximum: 128k |
|
Dynamic learning and aging of MAC addresses |
|
|
Static, dynamic, and blackhole MAC address entries |
|
|
Packet filtering based on source MAC addresses |
|
|
MAC address limiting based on ports and VLANs |
|
|
ARP (maximum) |
1.5k |
|
IPv4 FIB (maximum) |
1.5k |
|
IP Routing |
IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
|
IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ (CE6810EI) |
|
|
IPv6 FIB (maximum) |
/ |
|
Multicast FIB (maximum) |
/ |
|
Multicast |
IGMP snooping |
|
Reliability |
LACP |
|
STP, RSTP, VBST, MSTP |
|
|
BPDU protection, root protection, and loop protection |
|
|
Smart Link and multi-instance |
|
|
DLDP |
|
|
ERPS (G.8032) |
|
|
VRRP, VRRP load balancing, and BFD for VRRP |
|
|
QoS |
Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
|
Actions of ACL, CAR, re-marking, and scheduling |
|
|
Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR |
|
|
Congestion avoidance mechanisms, including WRED and tail drop |
|
|
Traffic shaping |
|
|
Configuration and Maintenance |
Console, Telnet, and SSH terminals |
|
Network management protocols, such as SNMPv1/v2c/v3 |
|
|
File upload and download through FTP and TFTP |
|
|
BootROM upgrade and remote upgrade |
|
|
802.3az Energy Efficient Ethernet (EEE) |
|
|
Hot patches |
|
|
User operation logs |
|
|
ZTP |
|
|
Security and Management |
802.1x authentication |
|
Command line authority control based on user levels, preventing unauthorized users from using commands |
|
|
DoS, ARP, and ICMP attack defenses |
|
|
Port isolation, port security, and sticky MAC |
|
|
Binding of the IP address, MAC address, interface number, and VLAN ID |
|
|
Authentication methods, including AAA, RADIUS, and HWTACACS |
|
|
Remote Network Monitoring (RMON) |
|
|
Dimensions (W x D x H) |
442 mm x 600 mm x 43.6 mm |
|
Weight (fully loaded) |
10.2 kg (22.5 lb) |
|
Environmental Parameters |
Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) |
|
Operating Voltage |
AC: 90V to 290V |
|
Max. Power Consumption |
178W |
