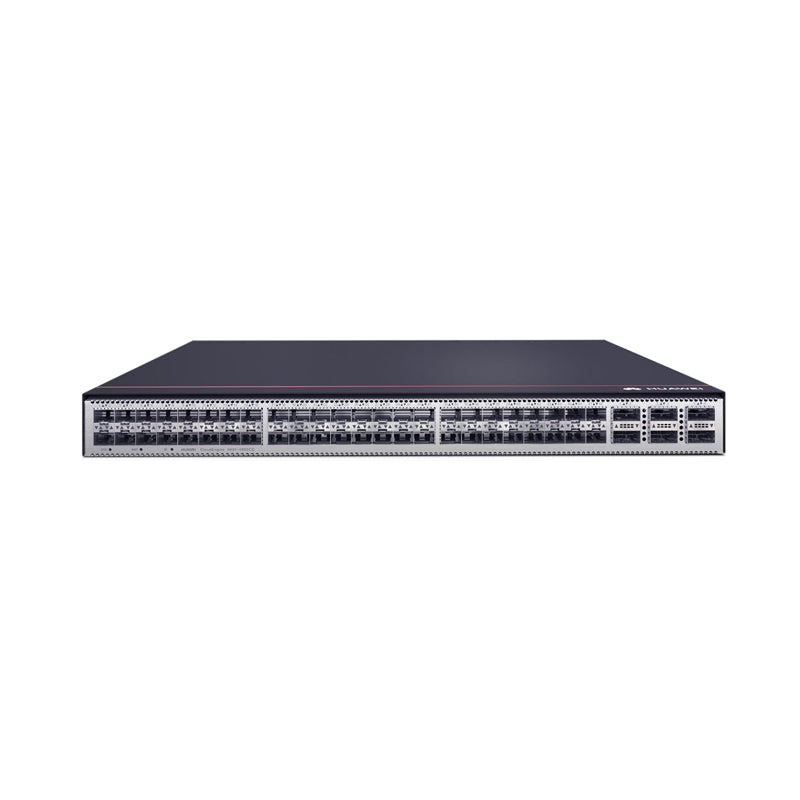

Huawei CE6820-48S6CQ-B switch is an advanced networking solution designed for high-density 10G/100G connectivity. Ideal for data centers and enterprise networks, this switch offers exceptional flexibility, scalability, and performance. Engineers and procurement professionals will find it valuable for enhancing network efficiency and reliability in various demanding applications.
| Feature | CE6820-48S6CQ-B | CE6860-48S8CQ | CE6850HI | CE6880-48S4Q2CQ | CE6810-48S6CQ | CE6870-48S6CQ-EI | CE6851HI |
|---|---|---|---|---|---|---|---|
| 10G Port Count | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
| 100G Port Count | 6 | 8 | NA | 4 | 6 | 6 | NA |
| Power Modules | 2 AC | 2 AC | 2 AC | 2 AC | 2 AC | 2 AC | 2 AC |
| Fan Modules | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Intake Direction | Port-side | Port-side | Port-side | Port-side | Port-side | Port-side | Port-side |
| Model | Description |
|---|---|
| SFP-10G-LR | 10G SFP+ module, long-range |
| QSFP-100G-SR4 | 100G QSFP28 module, short-range |
| MPN-AC-PWR | Additional AC power module |
Discover unbeatable prices and fast shipping for the Huawei CE6820-48S6CQ-B. Access the detailed CE6820-48S6CQ-B datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
|
Item |
Description |
|
Processor |
1.4 GHz, four-core |
|
DRAM Memory |
4 GB |
|
NOR Flash |
64 MB |
|
NAND Flash |
4 GB |
|
Mean time between failures (MTBF) |
45.48 years |
|
Mean time to repair (MTTR) |
1.52 hours |
|
Fixed ports |
Forty-eight 10GE SFP+ Ethernet optical ports Six 40GE/100GE QSFP28 Ethernet optical ports |
|
Physical specifications |
Dimensions (H x W x D): 43.6 mm x 442.0 mm x 420.0 mm |
|
Temperature |
Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) Storage temperature: -40°C to +70°C (-40°F to +158°F) |
|
Relative humidity |
5% RH to 95% RH, noncondensing |
|
Altitude |
< 5000 m (16404 ft.) |
|
Noise (sound pressure, 27°C) |
Back-to-front airflow: < 55 dBA; Front-to-back airflow: < 55 dBA |
|
Power source type |
AC/DC/HVDC |
|
AC power input |
Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz |
|
DC power input |
Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V D |
|
High-voltage DC power input |
Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: 190 V DC to -290 V D |
|
Rated input current |
600 W AC&240 V DC power (PAC600S12 series): 8 A (100 V AC to 240 V AC); 4 A (240V DC) 1000 W DC power (PDC1000S12 series): 30 A (-48 V DC to -60 V DC) |
|
Maximum power consumption |
282 W |
|
Typical power consumption |
162 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules) 196 W (100% throughput, all optical interfaces on the switch are equipped with the short-distance optical modules, double power modules) |
|
Maximum heat dissipation |
962 BTU/Hr |
|
Heat dissipation mode |
Air cooling |
|
Airflow |
Front-to-back or back-to-front, depending on the fan modules and power modules |
|
Power module backup |
1+1 backup |
|
Fan module backup |
3+1 backup |
|
Hot swap |
Supported by all power modules and fan modules |
|
Availability |
0.99999618 |
|
Service port supporting the stack function |
10GE optical ports, and 100GE optical ports |
