CE6850U-48S6Q-HI-F is Huawei CE6850U-48S6Q-HI Switch(48-Port 10GE SFP+,support 2/4/8G FC,6-Port 40GE QSFP+,2*FAN Box,Port-side Exhaust,Without Power Module). Support for Fiber Channel over Ethernet (FCoE) allows a single network to carry storage, data, and computing services, reducing network construction and maintenance costs the industry.

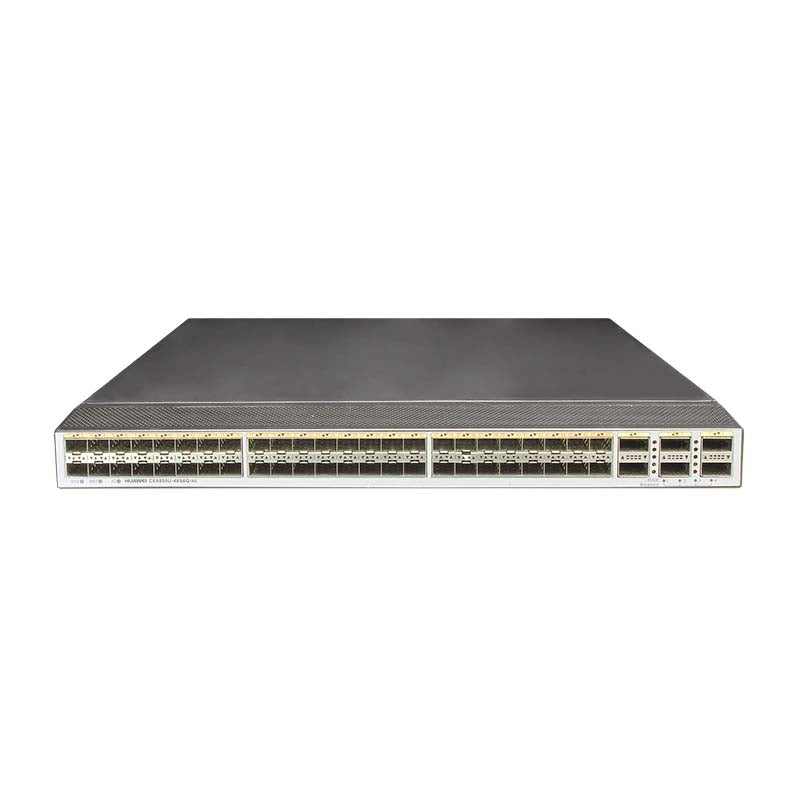

Figure 1 shows the appearance of CE6850U-48S6Q-HI-F.
Table 1 shows the Quick Specs.
|
Product Code |
|
|
Part Number |
02350EHF |
|
10G Base-T Ports |
0 |
|
SFP+ Ports |
48 |
|
FC Ports |
48 |
|
QSFP+ Ports |
6 |
|
Switching Capacity |
1.44 Tbit/s |
|
Forwarding Rate |
1,080 Mpps |
|
Airflow Design |
Front-to-back or back-to-front |
|
Maximum power consumption |
339 W |
|
Typical power consumption |
235W |
|
Dimensions (W x D x H) |
442 mm x 600 mm x 43.6 mm |
|
Weight (fully loaded) |
12.6 kg (27.8 lb) |
Figure 2 shows the rear (port side) panel of CE6850U-48S6Q-HI-F.
Note:
|
① |
Forty-eight 10GE SFP+ Ethernet optical ports |
|
② |
Six 40GE QSFP+ Ethernet optical ports |
Figure 3 shows the front (power supply side) panel of CE6850U-48S6Q-HI-F.
Note:
|
① |
Ground screw |
|
② |
Two ETH management ports (combo) |
|
③ |
Console port |
|
④ |
Mini USB port |
|
⑤ |
Fan slot 1 |
|
⑥ |
Fan slot 2 |
|
⑦ |
Power supply slot 1 |
|
⑧ |
Power supply slot 2 |
|
⑨ |
Barcode label |
|
⑩ |
USB port |
Table 2 shows the recommended elements for the CE6850U-48S6Q-HI-F.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) |
|
|
Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) |
|
|
Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) |
|
|
GE-SFP Optical Transceiver |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
|
|
10G-SFP+ Optical Transceiver |
|
|
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
|
|
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
|
|
40GE QSFP+ optical transceiver |
|
|
40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver) |
|
|
40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC) |
|
|
FAN-060A |
|
|
Fan box(F,FAN panel side intake ) |
|
|
Fan box(B,FAN panel side exhaust) |
Table 3 shows the comparison of CE6850U-48S6Q-HI-F and CE6850U-24S2Q-HI-B.
|
Product Code |
||
|
10G Base-T Ports |
0 |
0 |
|
SFP+ Ports |
48 |
24 |
|
FC Ports |
48 |
24 |
|
QSFP+ Ports |
6 |
2 |
|
Switching Capacity |
1.44 Tbit/s |
640 Gbit/s |
|
Forwarding Rate |
1,080 Mpps |
480 Mpps |
|
Airflow Design |
Front-to-back or back-to-front |
Front-to-back or back-to-front |
|
Maximum power consumption |
339 W |
282 W |
|
Typical power consumption |
235W |
183 W |
Do you have any question about the CE6850U-48S6Q-HI-F
|
10G Base-T Ports |
0 |
|
SFP+ Ports |
48 |
|
FC Ports |
48 |
|
QSFP+ Ports |
6 |
|
Switching Capacity |
1.44 Tbit/s |
|
Forwarding Rate |
1,080 Mpps |
|
Airflow Design |
Front-to-back or back-to-front |
|
Device Virtualization |
iStack |
|
Super Virtual Fabric (SVF) |
|
|
Network Virtualization |
M-LAG |
|
TRILL |
|
|
VM Awareness |
Agile Controller |
|
Network Convergence |
FCoE |
|
DCBX, PFC, and ETS |
|
|
Programmability |
OpenFlow |
|
OPS |
|
|
Puppet, and OVSDB plugins released on open source websites |
|
|
Linux container for open source and customization programming |
|
|
Traffic Analysis |
NetStream |
|
sFlow |
|
|
VLAN |
Adding access, trunk, and hybrid interfaces to VLANs |
|
Default VLAN |
|
|
QinQ |
|
|
MUX VLAN |
|
|
GVRP |
|
|
ACL |
Ingress: 3,750 Egress: 1,000 |
|
MAC Address Table |
Maximum: 288k |
|
Dynamic learning and aging of MAC addresses |
|
|
Static, dynamic, and blackhole MAC address entries |
|
|
Packet filtering based on source MAC addresses |
|
|
MAC address limiting based on ports and VLANs |
|
|
ARP (maximum) |
128k |
|
IPv4 FIB (maximum) |
256k |
|
IP Routing |
IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
|
IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ |
|
|
IPv6 FIB (maximum) |
128k |
|
IPv6 |
IPv6 Neighbor Discovery (ND) |
|
Path MTU Discovery (PMTU) |
|
|
TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6 |
|
|
Multicast FIB (maximum) |
8k |
|
Multicast |
IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
|
IGMP snooping |
|
|
IGMP proxy |
|
|
Fast leave of multicast member interfaces |
|
|
Multicast traffic suppression |
|
|
Multicast VLAN |
|
|
MPLS |
MPLS (CE6800HI) |
|
Reliability |
LACP |
|
STP, RSTP, VBST, and MSTP |
|
|
BPDU protection, root protection, and loop protection |
|
|
Smart Link and multi-instance |
|
|
DLDP |
|
|
ERPS (G.8032) |
|
|
VRRP, VRRP load balancing, and BFD for VRRP |
|
|
BFD for BGP/IS-IS/OSPF/Static route |
|
|
QoS |
Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
|
Actions of ACL, CAR, re-marking, and scheduling |
|
|
Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR |
|
|
Congestion avoidance mechanisms, including WRED and tail drop |
|
|
Traffic shaping |
|
|
Configuration and Maintenance |
Console, Telnet, and SSH terminals |
|
Network management protocols, such as SNMPv1/v2c/v3 |
|
|
File upload and download through FTP and TFTP |
|
|
BootROM upgrade and remote upgrade |
|
|
802.3az Energy Efficient Ethernet (EEE) |
|
|
Hot patches |
|
|
User operation logs |
|
|
ZTP |
|
|
Security and Management |
802.1x authentication |
|
Command line authority control based on user levels, preventing unauthorized users from using commands |
|
|
DoS, ARP, and ICMP attack defenses |
|
|
Port isolation, port security, and sticky MAC |
|
|
Binding of the IP address, MAC address, interface number, and VLAN ID |
|
|
Authentication methods, including AAA, RADIUS, and HWTACACS |
|
|
Remote Network Monitoring (RMON) |
|
|
Dimensions (W x D x H) |
442 mm x 600 mm x 43.6 mm |
|
Weight (fully loaded) |
12.6 kg (27.8 lb) |
|
Environmental Parameters |
Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) |
|
Operating Voltage |
AC: 90V to 290V |
|
Max. Power Consumption |
339W |
