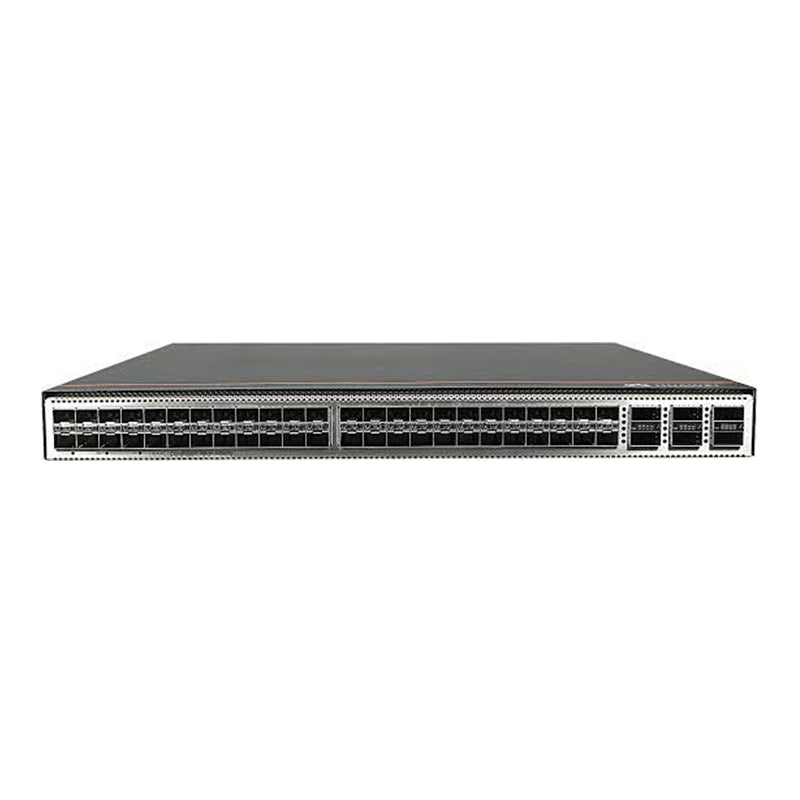

Huawei CE6863E-48S6CQ switch (48 * 25Ge SFP28, 6 * 100GE QSFP28, no power fan).
Offering high-performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. The series features an advanced hardware design combined with either 10 GE, 25 GE, or 50 GE access ports, and 40 GE, 100 GE, or 200 GE uplink ports. Advanced data center features, high-performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well-suited to both the core and aggregation layers, and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.
Table 1 shows the quick spec.
| Model | CE6863E-48S6CQ |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4GHZ |
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | Supported |
| Console port | RJ45 |
| Downlink Service interface | 48*25GE SFP28 (Note: 1. 25GE ports can be configured to work at 10 Gbit/s or 1 Gbit/s. Every four downlink 25GE ports form a group, and can be configured to work at 10 Gbit/s or 1 Gbit/s through the command; 2. 10GE LRM/80KM linear optical modules are not supported; 3. 1 m 25GE copper cables and 1 m/3 m/5 m 10GE copper cables are supported, and auto-negotiation of copper cables is not supported; 4. 25GE copper cables can only be used on stack ports and M-LAG peer-link ports.) |
| Uplink Service interface | 6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.) |
| Service port supporting the stack function | 25GE optical ports, and 100GE optical ports |
| RTC | Supported |
| ypes of fans | Pluggable |
| Number of fans | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Front-to-back or back-to-front, depending on the fan modules and power modules. |
Do you have any question about the CE6863E-48S6CQ?
Contact us now via Live Chat or sales@router-switch.com.
| CE6863E-48S6CQ Specification | |
| Model | CE6863E-48S6CQ |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4GHZ |
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | Supported |
| Console port | RJ45 |
| Downlink Service interface | 48*25GE SFP28 (Note: 1. 25GE ports can be configured to work at 10 Gbit/s or 1 Gbit/s. Every four downlink 25GE ports form a group, and can be configured to work at 10 Gbit/s or 1 Gbit/s through the command; 2. 10GE LRM/80KM linear optical modules are not supported; 3. 1 m 25GE copper cables and 1 m/3 m/5 m 10GE copper cables are supported, and auto-negotiation of copper cables is not supported; 4. 25GE copper cables can only be used on stack ports and M-LAG peer-link ports.) |
| Uplink Service interface | 6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.) |
| Service port supporting the stack function | 25GE optical ports, and 100GE optical ports |
| RTC | Supported |
| ypes of fans | Pluggable |
| Number of fans | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Front-to-back or back-to-front, depending on the fan modules and power modules. |
