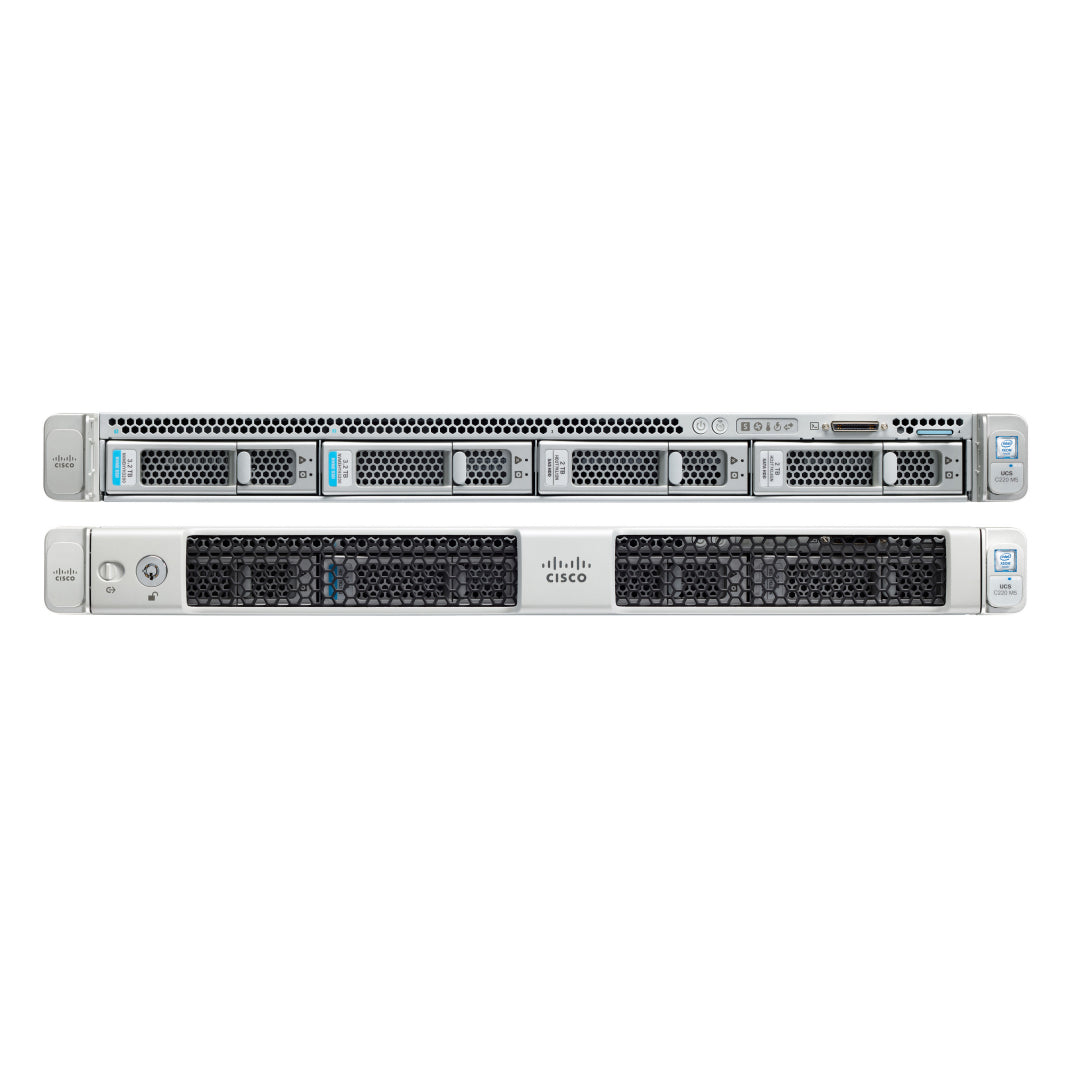

The Cisco UCS C220 M5 Rack Server is among the most versatile general-purpose enterprise infrastructure and application servers in the industry. It is a high-density 2-socket rack server that delivers industry-leading performance and efficiency for a wide range of workloads, including virtualization, collaboration, and bare-metal applications. The Cisco UCS C-Series Rack Servers can be deployed as standalone servers or as part of the Cisco Unified Computing System™ (Cisco UCS) to take advantage of Cisco’s standards-based unified computing innovations that help reduce customers’ Total Cost of Ownership (TCO) and increase their business agility.
The Cisco UCS C220 M5 server extends the capabilities of the Cisco UCS portfolio in a 1-Rack-Unit (1RU) form factor. It incorporates the Intel® Xeon® Scalable processors, supporting up to 20 percent more cores per socket, twice the memory capacity, 20 percent greater storage density, and five times more PCIe NVMe Solid-State Disks (SSDs) compared to the previous generation of servers. These improvements deliver significant performance and efficiency gains that will improve your application performance. The C220 M5 delivers outstanding levels of expandability and performance in a compact package, with:
| Item | Specifications |
|---|---|
| Form factor | 1RU rack server |
| Processors | Intel Xeon Scalable processors (1 or 2) or second-generation Intel Xeon Scalable processors (1 or 2) |
| Memory | 24 DDR4 DIMM slots: 8, 16, 32, 64, and 128 GB up to 2666 MHz Support for Intel Optane DC Persistent Memory (128G, 256G, 512G) |
| PCIe expansion | 2 PCIe 3.0 slots plus 1 dedicated 12-Gbps RAID controller slot and 1 dedicated mLOM slot |
| RAID controllers | Internal controllers: Cisco 12-Gbps Modular RAID Controller (PCIe 3.0) with 1- or 2-GB Flash-Backed Write Cache (FBWC), providing enterprise-class data protection for up to 10 SAS and SATA Hard-Disk Drives (HDDs), SSDs, or NVMe PCIe SSDs; or Cisco 12-Gbps Modular SAS Host Bus Adapter (HBA) External controller: Cisco 12-Gbps 9400-8e SAS HBA |
| Internal storage | Backplane options: Up to 10 x 2.5-inch SAS and SATA HDDs and SSDs and up to 2 NVMe PCIe drives Up to 10 x 2.5-inch NVMe PCIe drives Up to 4 x 3.5-inch SAS and SATA HDDs and SSDs and up to 2 NVMe PCIe drives |
| Embedded Network Interface Cards (NICs) | Dual 10GBASE-T Intel x550 Ethernet ports |
| mLOM | Dedicated mLOM slot that can flexibly accommodate 1-, 10-, 25-, 40-, and 100-Gbps adapters |
| Power supplies | Hot-pluggable, redundant 770W AC, 1050W AC, 1050W DC, and 1600W AC |
| Other storage | Dual internal Cisco FlexFlash Secure Digital (SD) cards (32, 64, and 128 GB) for installing an operating system or hypervisor Support for RAID 0 mirroring between SD cards Dedicated Baseboard Management Controller (BMC) MicroSD card (32 GB) for server utilities Dual M.2 SATA SSD or NVMe |
| Management | Cisco® Intersight™ Cisco IMC Cisco IMC Supervisor Cisco UCS Manager Cisco UCS Central Software Cisco UCS Director Cisco UCS Performance Manager |
| Rack options | Cisco ball-bearing rail kit or friction rail kit with optional reversible cable management arm |
| Hardware and software interoperability | See the Cisco Hardware and Software Interoperability List for a complete listing of supported operating systems and peripheral options |
