HPE Aruba JD377A
Sale price
Price: Rs. 18,568.25
Regular price
Rs. 160,990.00You saved
88% OFF
Availability :
In Stock at Global Warehouses
Condition :
New Factory Sealed
Warranty :
1 Year Warranty
Shipping :
Express Shipping Across India 3–7 Days via Delhivery.
Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust
24/7 Online Service
Get estimate shipping for your order
HPE Aruba JD377A
Sale price
Price: Rs. 18,568.25
Regular price
Rs. 160,990.00You saved
88% OFF
Product Specifications
Description
HPE FlexNetwork 5500 EI Series switches are fully managed, stackable, advanced Layer 2/3/4 enterprise class Gigabit switches. This JD377A has 24x 10/100/1000 ports including four dual personality ports for fiber connectivity.
Quick Spec
Figure 1 shows the appearance of HPE JD377A.
Table 1 shows the quick spec.
Product Code |
|
Type |
HP A5500-24G EI Switch with 2 Interface Slots |
Ports |
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 2 port expansion module slots 1 RJ-45 serial console port Supports a maximum of 24 autosensing 10/100/1000 ports |
Memory and processor |
256 MB SDRAM, 32 MB flash; packet buffer size: 2 MB |
Mounting |
Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
Performance |
1000 Mb Latency: 10 Gbps Latency: Throughput: 107.2 million pps Routing/Switching capacity: 144 Gbps Routing table size: 12000 entries |
Dimensions |
11.81(d) x 17.32(w) x 1.72(h) in. (30 x 44 x 4.36 cm) (1U height) |
Weight |
8.82 lb. (4 kg) |
Product Details

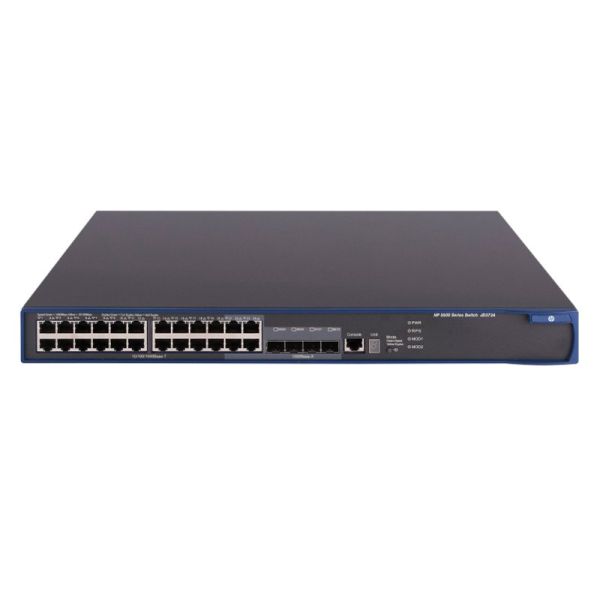

Figure 2 shows the front panel of HPE JD377A.
Note:
① |
24 x 10/100/1000Base-T auto-sensing Ethernet port |
② |
Console port |
③ |
Seven-segment LED (Unit) |
④ |
Port LED mode switching button |
⑤ |
System status LED (PWR) RPS status LED (RPS) Interface card 1 status LED (MOD1) Interface card 2 status LED (MOD2) |
⑥ |
4 x 1000Base-X SFP port |
Figure 3 shows the back panel of HPE JD377A.
Note:
① |
AC power input |
② |
RPS receptacle (shipped with a protective cover) |
③ |
Grounding screw |
④ |
Interface card slot 1 (MOD1) (This module must be purchased alone.) |
⑤ |
Interface card slot 2(MOD2) (This module must be purchased alone.) |
Compare to Similar Items
Table 2 shows the comparison.
Product Code |
|||
Type |
HP A5500-24G EI Switch with 2 Interface Slots |
HP A5500-48G EI Switch with 2 Interface Slots |
HP A5500-24G-SFP EI Switch with 2 Interface Slots |
Memory and processor |
256 MB SDRAM, 32 MB flash; packet buffer size: 2 MB |
256 MB SDRAM, 32 MB flash; packet buffer size: 4 MB |
256 MB SDRAM, 32 MB flash; packet buffer size: 2 MB |
Mounting |
Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
Performance |
1000 Mb Latency: 10 Gbps Latency: Throughput: 107.2 million pps Routing/Switching capacity: 144 Gbps Routing table size: 12000 entries |
1000 Mb Latency: 10 Gbps Latency: Throughput: 142.9 million pps Routing/Switching capacity: 192 Gbps Routing table size: 12000 entries |
1000 Mb Latency: 10 Gbps Latency: Throughput: 107.2 million pps Routing/Switching capacity: 144 Gbps Routing table size: 12000 entries |
Get more information
Do you have any question about the JD377A
Main Specifications
JD377A Specification | |
Type | HP A5500-24G EI Switch with 2 Interface Slots |
Ports | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 2 port expansion module slots 1 RJ-45 serial console port Supports a maximum of 24 autosensing 10/100/1000 ports |
Dimensions | 11.81(d) x 17.32(w) x 1.72(h) in. (30 x 44 x 4.36 cm) (1U height) |
Weight | 8.82 lb. (4 kg) |
Memory and processor | 256 MB SDRAM, 32 MB flash; packet buffer size: 2 MB |
Mounting | Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
Performance | 1000 Mb Latency: < 3.2 µs 10 Gbps Latency: < 2.6 µs Throughput: 107.2 million pps Routing/Switching capacity: 144 Gbps Routing table size: 12000 entries |
Operating temperature | 32ºF to 113ºF (0ºC to 45ºC) |
Operating relative humidity | 10% to 90%, noncondensing |
Nonoperating/Storage temperature | -40ºF to 158ºF (-40ºC to 70ºC) |
Nonoperating/Storage relative humidity | 5% to 95%, noncondensing |
Maximum heat dissipation | 375 BTU/hr (395.63 kJ/hr) |
Voltage | 100-240 |
VAC Maximum power rating | 110 W |
Frequency | 50/60 Hz |
Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
Emissions | FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A |
Management | IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB |
