HPE Aruba JE072B
Regular price
Price: Rs. 18,568.25
Availability :
In Stock at Global Warehouses
Condition :
New Factory Sealed
Warranty :
1 Year Warranty
Shipping :
Express Shipping Across India 3–7 Days via Delhivery.
Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust
24/7 Online Service
Get estimate shipping for your order
HPE Aruba JE072B
Regular price
Price: Rs. 18,568.25
Product Specifications
Description
HPE FlexNetwork 5120 SI Series switches support stacking, static Layer 3 routing, ACLs and IPv6. This model has 48x 10/100/1000 ports and 4 x GbE SFP ports. The JE072B is part of the HPE FlexNetwork portfolio of campus switches. They are campus switches ideal for medium and large enterprise networks.
Quick Spec

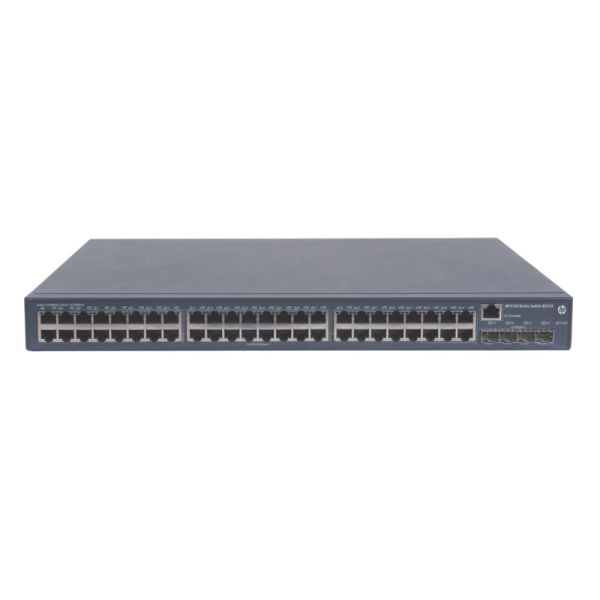

Figure 1 shows the appearance of HPE JE072B.
Table 1 shows the quick spec.
Product Code |
|
Type |
HPE FlexNetwork 5120 48G SI Switch |
Ports |
48 x RJ-45 autosensing 10/100/1000 ports 4 x fixed Gigabit Ethernet SFP ports |
Throughput |
up to 77.4 Mpps |
Routing/switching capacity |
104 Gbps |
Memory and processor |
128 MB SDRAM Packet buffer size: 1 MB 128 MB flash |
Dimensions |
17.3 x 10.24 x 1.72 in (43.9 x 26 x 4.37 cm) |
Weight |
11.02 lb (5 Kg) |
Product Details
Figure 2 shows the front panel of HPE JE072B.
Note:
① |
48 × 10/100/1000Base-T autosensing Ethernet port |
② |
4 × 1000Base-X SFP port |
③ |
Console port |
Figure 3 shows the back panel of HPE JE072B.
Note:
① |
AC-input power receptacle |
② |
Grounding screw |
Compare to Similar Items
Table 2 shows the comparison.
Product Code |
|||
Type |
HPE FlexNetwork 5120 48G SI Switch |
HPE FlexNetwork 5120 16G SI Switch |
HPE FlexNetwork 5120 24G SI Switch |
Ports |
|
|
|
Throughput |
up to 77.4 Mpps |
up to 29.8 Mpps |
up to 41.7 Mpps |
Memory |
|
|
|
Get more information
Do you have any question about the JE072B
Main Specifications
JE072B Specification | |
Type | HPE FlexNetwork 5120 48G SI Switch |
Differentiator | 48 x 10/100/1000BASE-T and 4 GbE SFP ports |
Ports | · 48 x RJ-45 autosensing 10/100/1000 ports · 4 x fixed Gigabit Ethernet SFP ports |
Memory and processor | · 128 MB SDRAM · Packet buffer size: 1 MB · 128 MB flash |
Latency | 1000 Mb Latency: < 3 µs |
Throughput | up to 77.4 Mpps |
Routing/switching capacity | 104 Gbps |
Stacking capabilities | IRF 4 switches |
Management features | IMC - Intelligent Management Center Command-line interface Web browser SNMP manager |
Input voltage | 100 - 240 VAC, rated (depending on power supply chosen) |
Operating temperature range | 0 to 45°C |
Operating humidity range | 10 to 90% (noncondensing) |
Power consumption | 59.8 W (maximum) |
Heat dissipation | 204 BTU/hr (215.22 kJ/hr) |
Minimum dimensions (W x D x H) | 17.3 x 10.24 x 1.72 in (43.9 x 26 x 4.37 cm) |
Weight | 11.02 lb (5 Kg) |
