HPE Aruba JE074B
Regular price
Price: Rs. 18,568.25
Product Specifications
Description
HPE FlexNetwork 5120 SI Series switches support stacking, static Layer 3 routing, ACLs and IPv6. This JE074B has 24 x 10/100/1000 ports and 4 x GbE SFP ports. They are campus switches ideal for medium and large enterprise networks.
Quick Spec

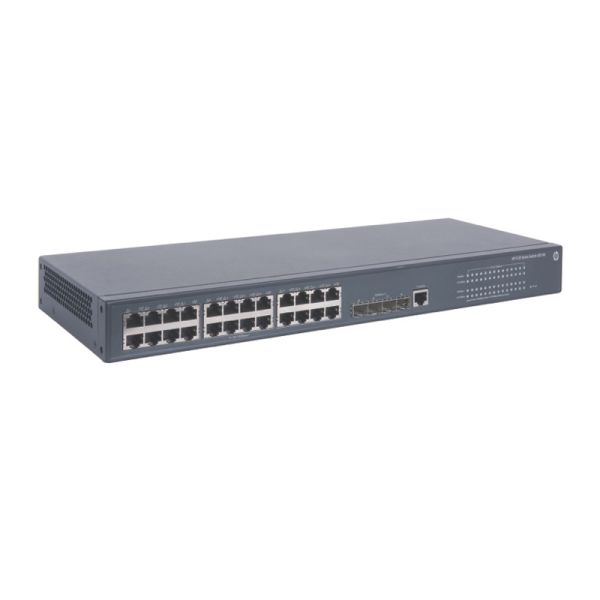

Figure 1 shows the appearance of HPE JE074B.
Table 1 shows the quick spec.
Product Code |
|
Type |
HPE FlexNetwork 5120 24G SI Switch |
Ports |
|
Throughput |
up to 41.7 Mpps |
Routing/switching capacity |
56 Gbps |
Memory and processor |
|
Dimensions |
17.3 x 6.3 x 1.72 in (43.9 x 16 x 4.37 cm) |
Weight |
6.61 lb (3 Kg) |
Product Details

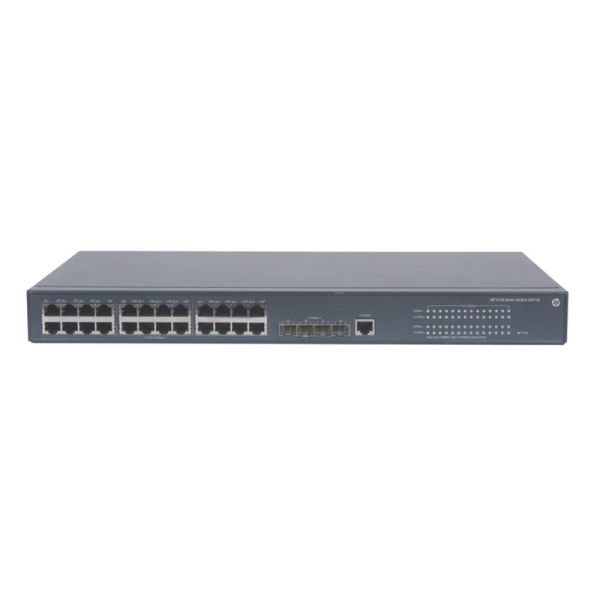

Figure 2 shows the front panel of HPE JE074B.
Note:
① |
24 × 10/100/1000Base-T autosensing Ethernet port |
② |
4 × 1000Base-X SFP port |
③ |
Console port |
④ |
Port LED and Power LED (Power) |
Figure 3 shows the back panel of HPE JE074B.
Note:
① |
AC-input power receptacle |
② |
Grounding screw |
Compare to Similar Items
Table 2 shows the comparison.
Product Code |
|||
Type |
HPE FlexNetwork 5120 48G SI Switch |
HPE FlexNetwork 5120 16G SI Switch |
HPE FlexNetwork 5120 24G SI Switch |
Ports |
|
|
|
Throughput |
up to 77.4 Mpps |
up to 29.8 Mpps |
up to 41.7 Mpps |
Memory |
|
|
|
Get more information
Do you have any question about the JE074B
Main Specifications
JE074B Specification | |
Type | HPE 5120 24G SI Switch |
System specifications | |
I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports |
Additional ports and slots | 1 RJ-45 serial console port |
Memory and processor | 128 MB flash 128 MB SDRAM Packet buffer size: 0.5 MB |
Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
Management | IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager |
Performance | 1000 Mb Latency < 3 µs Throughput up to 41.7 Mpps Routing/Switching capacity 56 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries |
Physical specifications | |
Dimensions (H x W x D) | 4.37 x 43.94 x 16 cm ( 1.72 x 17.3 x 6.3 in ) ( 1U height ) |
Weight | 3 kg (6.61 lb) |
Electrical specifications | |
Maximum heat | 107 BTU/hr (12.89 kJ/hr) |
Voltage | 100 - 240 V ac, rated (depending on power supply chosen) |
Maximum power rating | 31.5 W |
Idle power | 13.4 W |
PoE power | - |
Frequency | 50/60 Hz |
Environmental specifications | |
Operating temperature | 0°C to 45°C (32°F to 113°F) |
Operating relative humidity | 10% to 90%, noncondensing |
Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) |
Operating relative humidity | 10% to 90%, noncondensing |
Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) |
Nonoperating/Storage relative humidity | 5% to 95%, noncondensing |
Acoustic | Pressure: 43.8 dB; ISO 7779 |
Safety certifications | |
Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
Emissions | FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A |
