HPE Aruba JG310B
Regular price
Price: Rs. 18,568.25
Availability :
In Stock at Global Warehouses
Condition :
New Factory Sealed
Warranty :
1 Year Warranty
Shipping :
Express Shipping Across India 3–7 Days via Delhivery.
Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust
24/7 Online Service
Get estimate shipping for your order
HPE Aruba JG310B
Regular price
Price: Rs. 18,568.25
Product Specifications
Description
HPE FlexNetwork 5120 SI Series switches support stacking, static Layer 3 routing, ACLs and IPv6. This JG310B has 8 x 10/100/1000 PoE+ ports and 1 x GbE SFP ports. Power over Ethernet support is for IEEE 802.3at with a PoE+ power budget of 65 Watts. They are campus switches ideal for medium and large enterprise networks.
Quick Spec

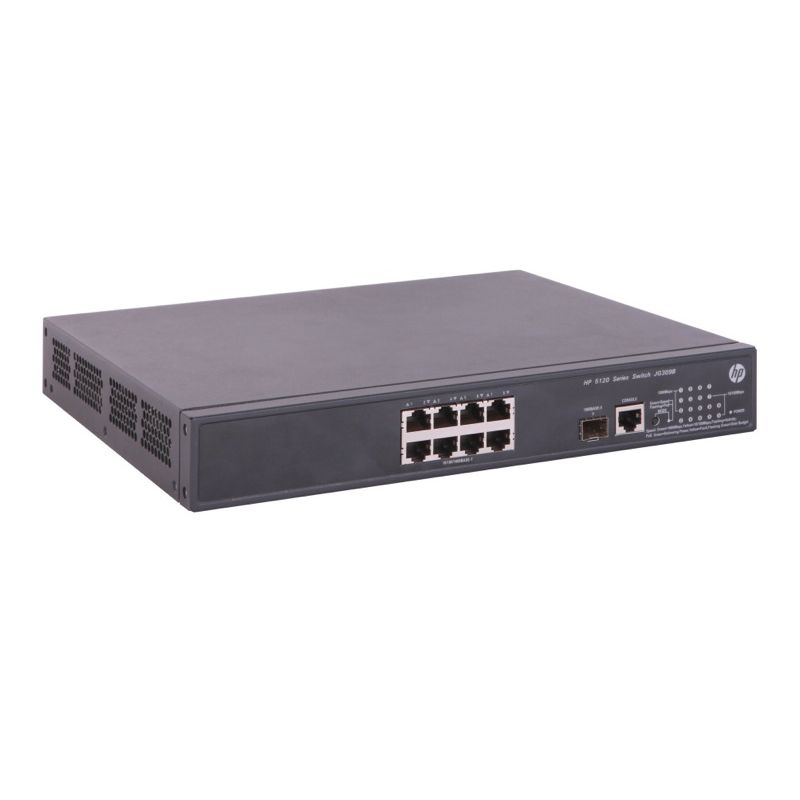

Figure 1 shows the appearance of HPE JG310B.
Table 1 shows the quick spec.
Product Code |
|
Type |
HPE 5120 8G PoE+ (65W) SI Switch |
I/O ports and slots |
8 x RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 x SFP fixed Gigabit Ethernet SFP port |
PoE power |
65 W PoE+ |
Additional ports and slots |
1 RJ-45 serial console port |
Memory and processor |
128 MB flash 128 MB SDRAM Packet buffer size: 0.5 MB |
Performance |
1000 Mb Latency Throughput up to 77.4 Mpps Routing/Switching capacity 104 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries |
Dimensions (H x W x D) |
4.37 x 43.94 x 26.0 cm ( 1.72 x 10.24 x 17.3 in ) (1U height ) |
Weight |
5 kg (11.02 lb) |
Product Details

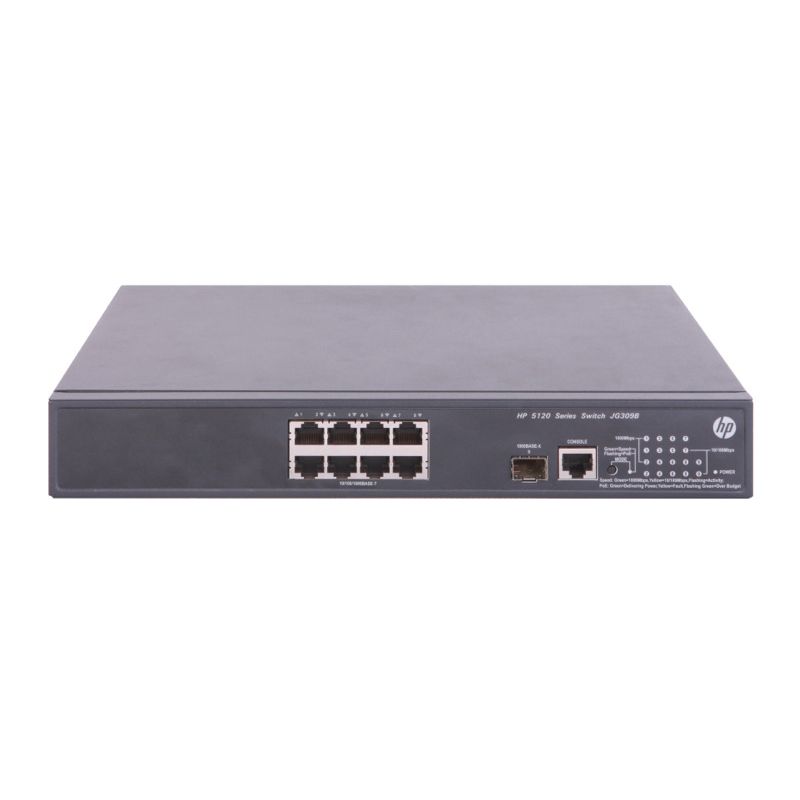

Figure 2 shows the front panel of HPE JG310B.
Note:
① |
8 × 10/100/1000Base-T auto-sensing Ethernet port |
② |
1 × 1000Base-X SFP port |
③ |
Console Port |
④ |
Port LED mode switching button |
⑤ |
Port mode LED, Port LED and Power LED (Power) |
· There are AC-input power receptacle and Grounding screw on the back panel.
Compare to Similar Items
Table 2 shows the comparison.
Product Code |
|||
Type |
HPE 5120 24G PoE+ (370W) SI Switch |
HPE 5120 8G PoE+ (180W) SI Switch |
HPE 5120 8G PoE+ (65W) SI Switch |
I/O ports and slots |
24 x RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 x fixed Gigabit Ethernet SFP ports |
8 x RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 x SFP fixed Gigabit Ethernet SFP port |
8 x RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 x SFP fixed Gigabit Ethernet SFP port |
PoE power |
720 W PoE+, optional |
180 W PoE+ |
65 W PoE+ |
Performance |
1000 Mb Latency Throughput up to 41.7 Mpps Routing/Switching capacity 56 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries |
1000 Mb Latency - Throughput up to 13.4 Mpps Routing/Switching capacity 18 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries |
1000 Mb Latency Throughput up to 77.4 Mpps Routing/Switching capacity 104 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries |
Get more information
Do you have any question about the JG310B
Main Specifications
JG310B Specification | |
Type | HPE 5120 8G PoE+ (65W) SI Switch |
System specifications | |
I/O ports and slots | 8 RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 SFP fixed Gigabit Ethernet SFP port |
Additional ports and slots | 1 RJ-45 serial console port |
Memory and processor | 128 MB flash 128 MB SDRAM Packet buffer size: 0.5 MB |
Mounting and enclosure | Requires angle mounting set if rack mounted (not included) |
Management | IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager |
Performance | 1000 Mb Latency < 3 µs Throughput up to 77.4 Mpps Routing/Switching capacity 104 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries |
Physical specifications | |
Dimensions (H x W x D) | 4.37 x 43.94 x 26.0 cm ( 1.72 x 10.24 x 17.3 in ) (1U height ) |
Weight | 5 kg (11.02 lb) |
Electrical specifications | |
Maximum heat | 204 BTU/hr (215.22 kJ/hr) |
Voltage | 100 - 240 V ac, rated (depending on power supply chosen) |
Maximum power rating | 59.8 W |
Idle power | 25.7 W |
PoE power | 65W |
Frequency | 50/60 Hz |
Environmental specifications | |
Operating temperature | 0°C to 45°C (32°F to 113°F) |
Operating relative humidity | 10% to 90%, noncondensing |
Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) |
Operating relative humidity | 10% to 90%, noncondensing |
Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) |
Nonoperating/Storage relative humidity | 5% to 95%, noncondensing |
Acoustic | Pressure: 42.2 dB, Low-speed fan: 42.2 dB, High-speed fan: 50 dB; ISO 7779 |
Safety certifications | |
Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
Emissions | FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A |
