HPE Aruba JH326A
Sale price
Price: Rs. 18,568.25
Regular price
Rs. 160,990.00You saved
88% OFF
Availability :
In Stock at Global Warehouses
Condition :
New Factory Sealed
Warranty :
1 Year Warranty
Shipping :
Express Shipping Across India 3–7 Days via Delhivery.
Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust
24/7 Online Service
Get estimate shipping for your order
HPE Aruba JH326A
Sale price
Price: Rs. 18,568.25
Regular price
Rs. 160,990.00You saved
88% OFF
Product Specifications
Description
HPE FlexNetwork 5130 HI Series switches deliver scalability and resiliency at the access layer of medium and large enterprise campus networks. This JH326A has 48 x 10/100/1000 PoE+ ports and 4x GbE SFP slots and 2 x 10GbE SFP+ slots. At the back of the unit, is an empty module slot supporting two choices of expansion module, either 2 port 1/10GBASE T module or 2 port SFP+ ports.
Quick Spec

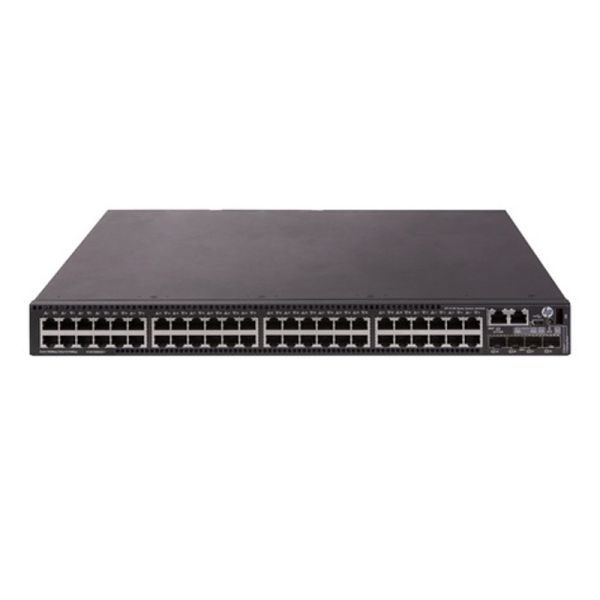

Figure 1 shows the appearance of HPE JH326A.
Table 1 shows the quick spec.
Product Code |
|
Type |
HPE 5130 48G PoE+ 4SFP+ HI with 1 Interface Slot Switch |
Ports |
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 8 support MACSec 4 SFP+ 10GbE ports 1 port expansion module slot Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports, with optional module |
Memory and processor |
2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
Mounting |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware include |
Performance |
1000 Mb Latency: 10 Gbps Latency: Throughput: up to 190.5 Mpps Routing/Switching capacity: 256 Gbps Routing table size: 32768 entries (IPv4), 16384 entries (IPv6) MAC address table size: 32768 entries |
Dimensions |
4.37 x 43.99 x 46 cm (1.72 x 17.32 x 18.11 in) (1U height) |
Weight |
12.5 kg (27.56 lb) |
Product Details
Figure 2 shows the front panel of HPE JH326A.
Note:
① |
48 x 10/100/1000Base-T autosensing Ethernet PoE port |
② |
4 x 1000Base-X SFP port |
③ |
USB port |
④ |
Mini USB console port |
⑤ |
Console port (CONSOLE) |
⑥ |
Management Ethernet port |
Figure 3 shows the back panel of HPE JH326A.
Note:
① |
Grounding screw |
② |
Interface card (optional) |
③ |
Fan tray 1 |
④ |
Fan tray 2 |
⑤ |
Power supply 1 |
⑥ |
Power supply 2 (optional) |
Compare to Similar Items
Table 2 shows the comparison.
Product Code |
||||
Type |
HPE 5130 24G 4SFP+ HI with 1 Interface Slot Switch |
HPE 5130 48G 4SFP+ HI with 1 Interface Slot Switch |
HPE 5130 24G PoE+ 4SFP+ HI with 1 Interface Slot Switch |
HPE 5130 48G PoE+ 4SFP+ HI with 1 Interface Slot Switch |
Memory and processor |
2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
Mounting |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware include |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware include |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware include |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware include |
Performance |
1000 Mb Latency: 10 Gbps Latency: Throughput: up to 154.8 Mpps Routing/Switching capacity: 208 Gbps Routing table size: 32768 entries (IPv4), 16384 entries (IPv6) MAC address table size: 32768 entries |
1000 Mb Latency: 10 Gbps Latency: Throughput: up to 190.5 Mpps Routing/Switching capacity: 256 Gbps Routing table size: 32768 entries (IPv4), 16384 entries (IPv6) MAC address table size: 32768 entries |
1000 Mb Latency: 10 Gbps Latency: Throughput: up to 154.8 Mpps Routing/Switching capacity: 208 Gbps Routing table size: 32768 entries (IPv4), 16384 entries (IPv6) MAC address table size: 32768 entries |
1000 Mb Latency: 10 Gbps Latency: Throughput: up to 190.5 Mpps Routing/Switching capacity: 256 Gbps Routing table size: 32768 entries (IPv4), 16384 entries (IPv6) MAC address table size: 32768 entries |
Get more information
Do you have any question about the JH326A
Main Specifications
JH326A Specifications | |
Physical specifications | |
Type | HPE 5130 48G PoE+ 4SFP+ HI with 1 Interface Slot Switch |
Dimensions (H x W x D) | 4.37 x 43.99 x 46 cm (1.72 x 17.32 x 18.11 in) (1U height) |
Weight | 12.5 kg (27.56 lb) |
System specifications | |
1000 Mb Latency | < 5 µs |
10 Gbps Latency | < 3 µs |
Throughput | up to 190.5 Mpps |
Routing/Switching capacity | 256 Gbps |
Routing table size | 32768 entries (IPv4), 16384 entries (IPv6) |
MAC address table size | 32768 entries |
I/O ports and slots | 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 8 support MACSec 4 SFP+ 10GbE ports 1 port expansion module slot Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports, with optional module |
Power supplies | 2 power supply slots 1 minimum power supply required (ordered separately) |
Fan tray | Airflow direction is Front (port side) to Back (power cord side) |
Memory and processor | 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware include |
Electrical specifications | |
Frequency | 50/60 Hz |
Maximum heat dissipation | 2286 BTU/hr (2411.73 kJ/hr), Heat dissipation ranges from 256 BTU/hr to 6142 BTU/hr, depending on power supply configuration |
Voltage | 100 - 240 V ac, rated (90 - 264 V ac, max) -48 to -60 V dc, rated) (depending on power supply chosen) |
Maximum power rating | 670 W |
Idle power | 75 W |
PoE power | 1440 W PoE+ |
Environmental specifications | |
Operating temperature | 0°C to 45°C(32°F to 113°F) |
Operating relative humidity | 10% to 90%, noncondensing |
Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) |
Nonoperating/Storage relative humidity | 5% to 95%, noncondensing |
Acoustic | Low-speed fan: 57.6 dB, High-speed fan: 66.9 dB; ISO 7779 |
Safety certifications | |
Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; ROHS Compliance; AS/NZS 60950-1; GB 4943; EAC (EurAsian Conformity Certification) |
Emissions | EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3- 2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000- 4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000- 4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A |
Immunity | Generic EN 55024 ESD EN300 386 |
Management | IMC - Intelligent Management Center, Command-line interface, Web browser, SNMP manager |
