Product Specifications

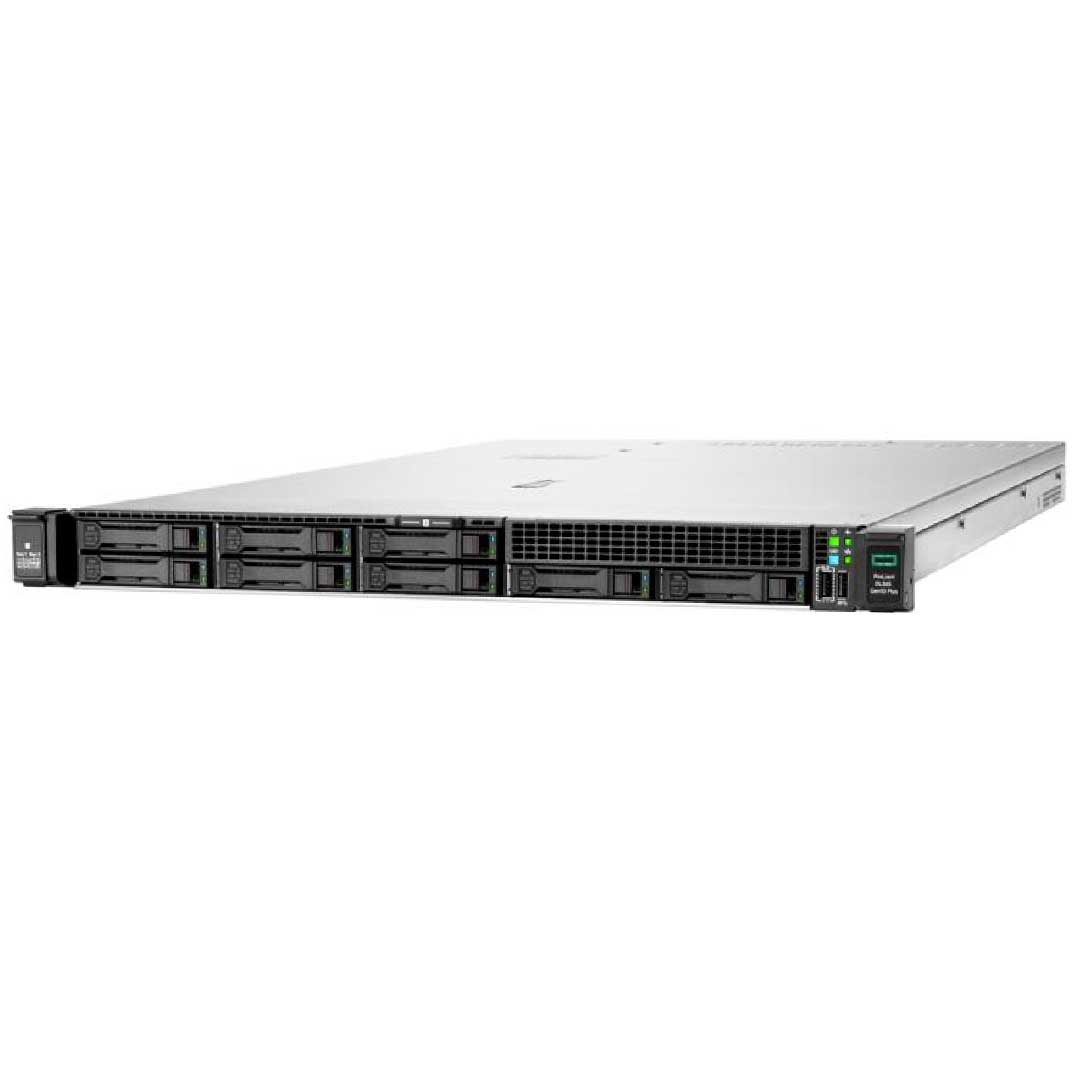

HPE ProLiant DL365 Gen10 Plus 7262 Rack Server

• Processor: It is powered by the AMD EPYC 7262 processor, which is a 3rd generation Zen 2-based processor with 8 cores and 16 threads. The processor operates at a base frequency of 3.2 GHz and can achieve a maximum turbo frequency of 3.4 GHz.
• Memory: The server supports DDR4 Registered (RDIMM) or Load Reduced (LRDIMM) memory modules. It has 16 DIMM slots with a maximum memory capacity of up to 2 terabytes (TB). The memory speed varies depending on the configuration.
• Storage: It offers multiple storage options, including SAS (Serial Attached SCSI) and SATA (Serial ATA) hard disk drives (HDDs) or solid-state drives (SSDs). It also supports HPE Smart Array Controllers for RAID configurations.
• Expansion Slots: The DL365 Gen10 Plus has 3 PCIe (Peripheral Component Interconnect Express) slots for expansion cards, such as network adapters, storage controllers, or graphic cards.
• Networking: The server includes multiple network interface options, typically integrated 1 GbE (Gigabit Ethernet) ports. Additional network adapters can be installed using the available PCIe slots for higher speed connectivity.
• Management: It features HPE Integrated Lights-Out (iLO) management, which provides remote management capabilities, including monitoring, configuration, and firmware updates. iLO allows administrators to manage the server even if the main operating system is not responsive or installed.
• Power Supply: The server is equipped with redundant hot-plug power supplies for high availability and reliability. The power supplies vary depending on the configuration and can be customized to meet specific power requirements.
• Operating Systems: It is compatible with various operating systems, including popular options like Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware ESXi, and others.
• Form Factor: The DL365 Gen10 Plus is designed as a 1U rack server, which means it occupies a single rack unit (1.75 inches) of vertical space in a standard rack enclosure.
