Product Specifications

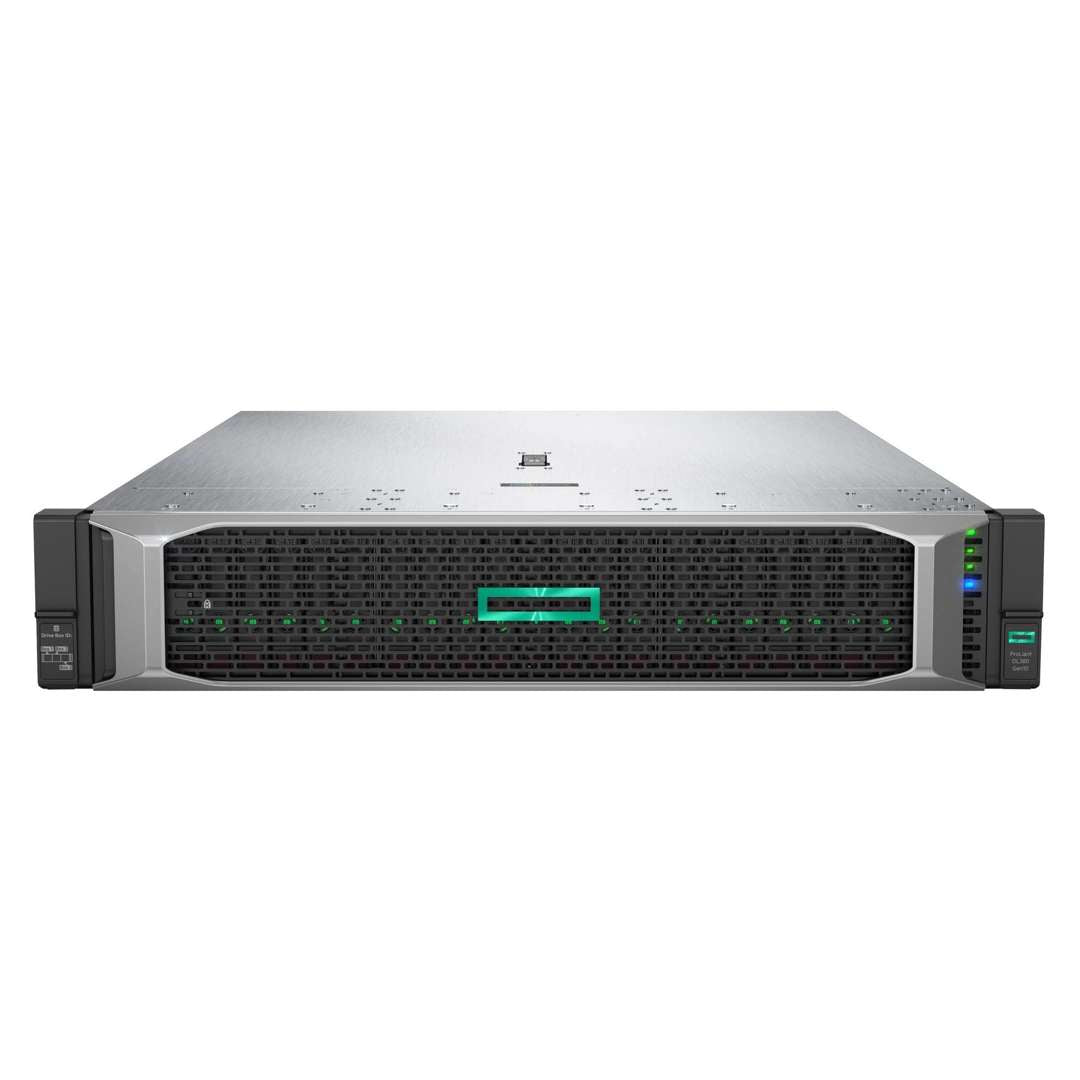

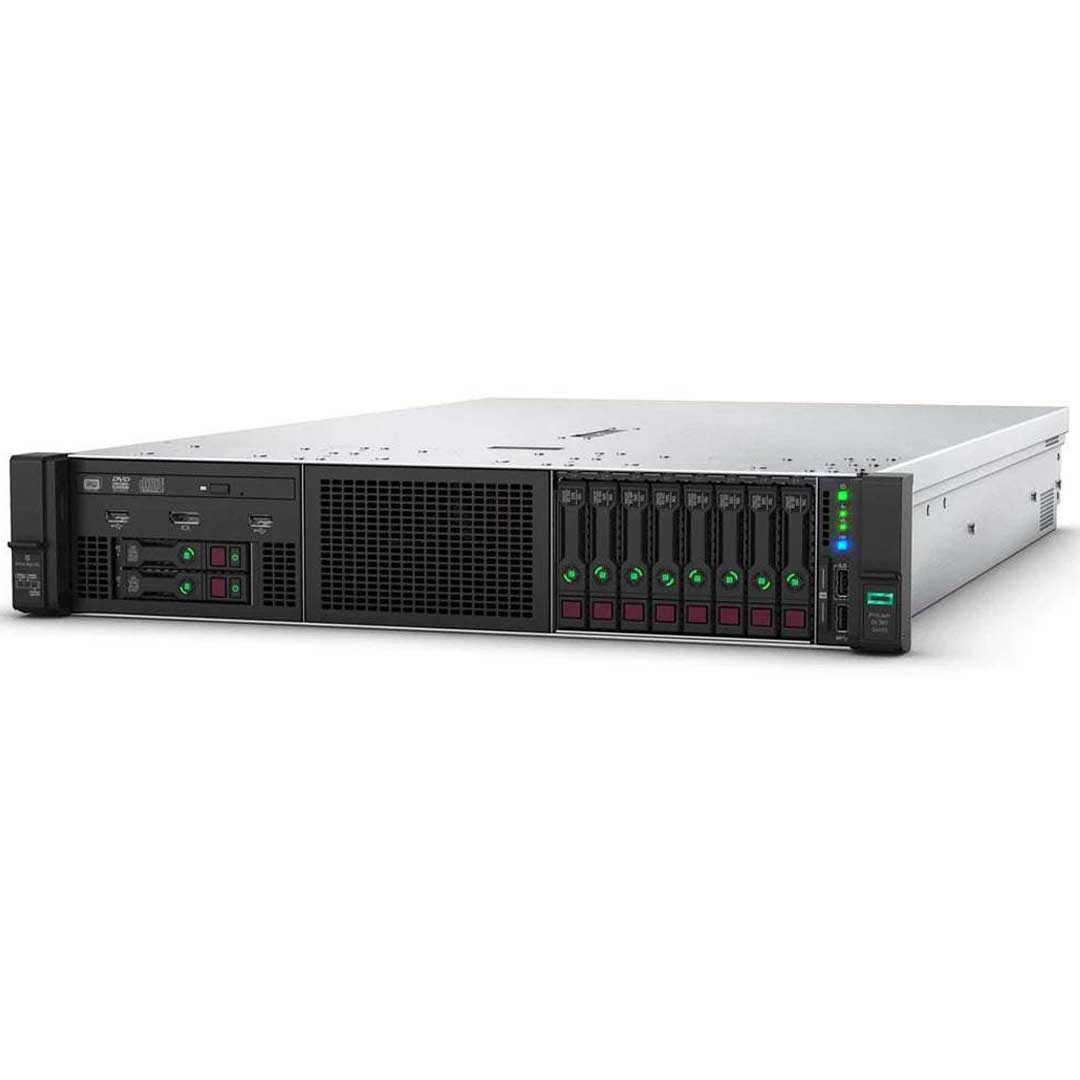

HPE ProLiant DL380 Gen10 4214R Rack Server

• Processor: The DL380 Gen10 4214R is powered by an Intel Xeon Scalable processor. The specific model in this case is the Intel Xeon Silver 4214R, which is a 12-core, 24-thread processor with a base clock speed of 2.4 GHz and a maximum turbo frequency of 3.2 GHz.
• Memory: It supports up to 3TB of memory capacity, using RDIMMs (Registered DIMMs) or LRDIMMs (Load-Reduced DIMMs). The memory modules operate at a speed of up to 2933 MT/s (megatransfers per second).
• Storage: The server offers multiple storage options, including hot-plug small form factor (SFF) SAS/SATA hard drives or solid-state drives (SSDs). It also supports hot-plug large form factor (LFF) SAS/SATA drives. The server may include a Smart Array controller for RAID configuration.
• Expansion Slots: The DL380 Gen10 4214R has a flexible expansion slot configuration, accommodating up to three PCIe 3.0 slots. The available slots can be used for adding various expansion cards, such as network adapters, storage controllers, or GPU accelerators.
• Networking: It comes with embedded quad-port 1Gb Ethernet network adapters. It also supports optional FlexibleLOM (LAN-on-Motherboard) adapters for additional networking capabilities, including higher-speed Ethernet or Fibre Channel connectivity.
• Management: The server includes the HPE Integrated Lights Out (iLO) management system, which allows remote management and monitoring of the server. iLO provides features like remote console access, power management, and hardware health monitoring.
• Form Factor: The DL380 Gen10 4214R is designed to be mounted in a standard 19-inch rack. It has a 2U (2 rack unit) form factor, meaning it occupies two units of rack space.
• Operating System Support: It is compatible with various operating systems, including Windows Server, Linux distributions, VMware, and others.
