Product Specifications

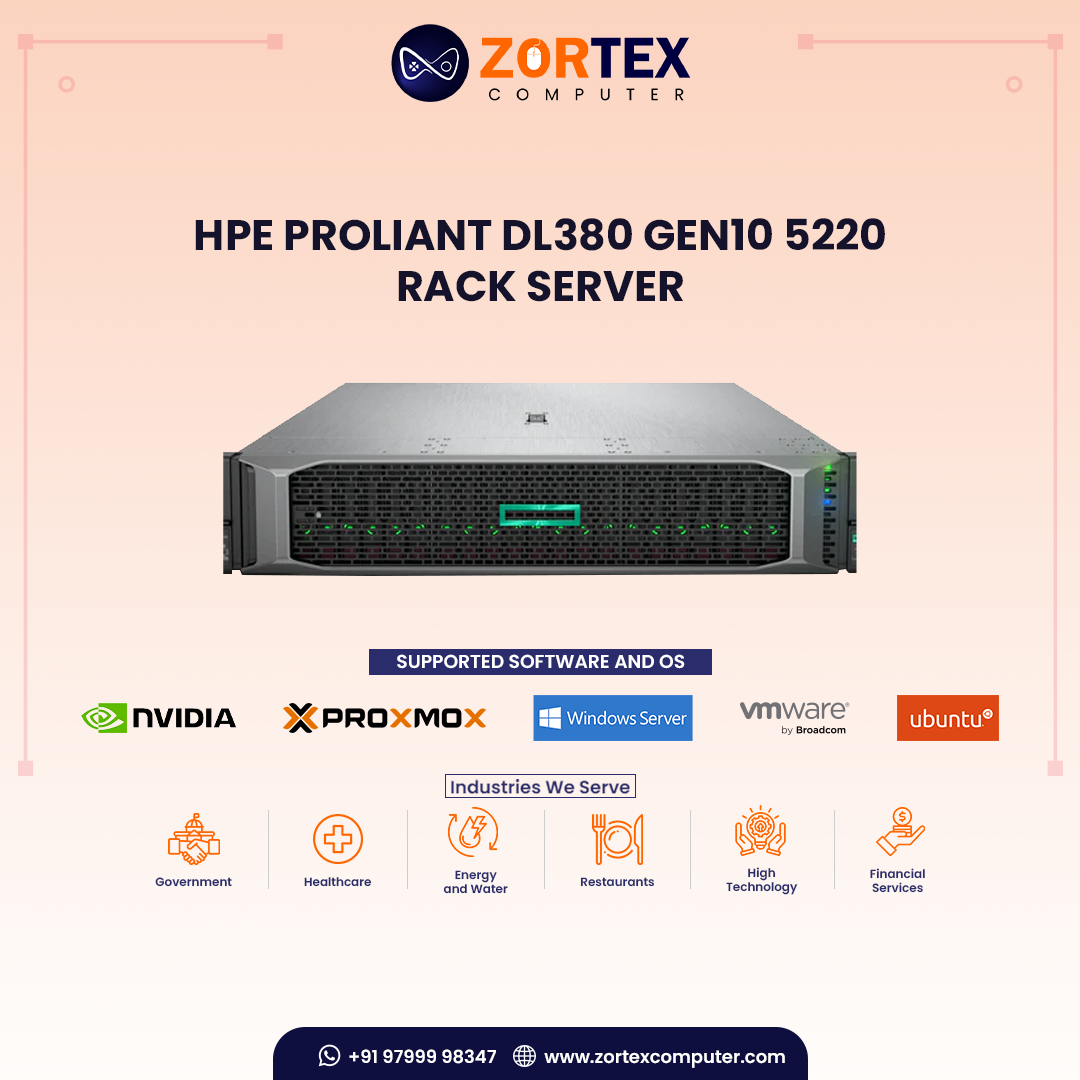

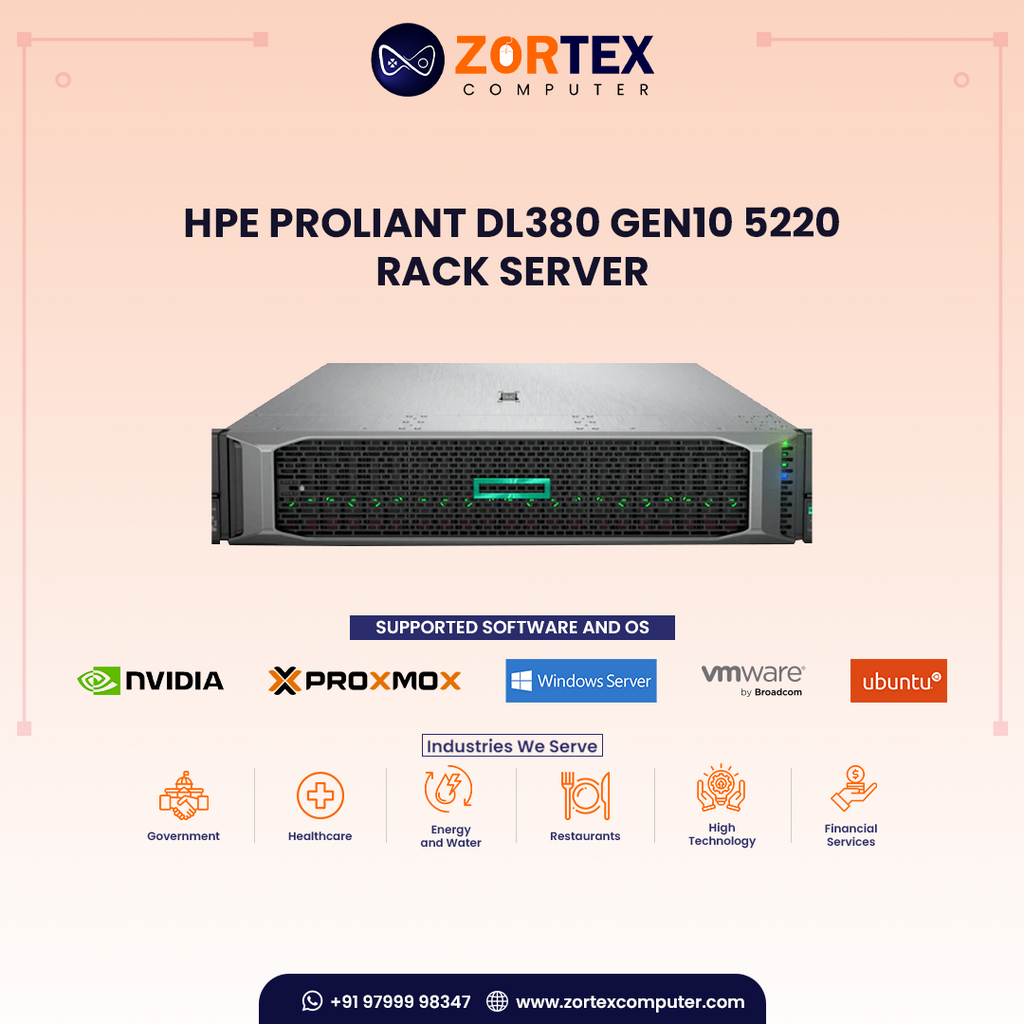

HPE ProLiant DL380 Gen10 5220 Rack Server

• Processor: It is powered by an Intel Xeon Scalable 5220 processor, which is a dual-socket CPU with a base clock speed of 2.2 GHz and 18 cores. It supports Intel Turbo Boost Technology to dynamically increase the clock speed when needed.
• Memory: The server supports DDR4 Registered (RDIMM) or Load-Reduced (LRDIMM) memory modules. It has a maximum memory capacity of up to 3 TB with RDIMMs or 6 TB with LRDIMMs, using 24 memory slots.
• Storage: It offers multiple storage options, including hot-plug SFF (Small Form Factor) SAS/SATA hard drives or SSDs. It supports a maximum of 30 SFF drives or 20 LFF (Large Form Factor) drives, depending on the configuration.
• Expansion slots: The DL380 Gen10 5220 has a variety of PCIe expansion slots, including three standard full-height/half-length slots and three optional full-height/full-length slots. These slots allow you to add additional network interface cards (NICs), storage controllers, or other expansion cards.
• Networking: It features embedded 4x 1GbE NIC ports, along with optional modular networking adapters for higher-speed connectivity, such as 10GbE or 25GbE.
• Management: The server includes HPE Integrated Lights Out (iLO) 5 management engine, providing remote management capabilities, server monitoring, and firmware updates.
• Power supplies: It supports redundant hot-plug power supplies for high availability and can accommodate either 500W, 800W, or 1600W power supply options, depending on the configuration.
• Form factor: The DL380 Gen10 5220 is a 2U rack server, designed to be mounted in a standard 19-inch rack.
