Product Specifications

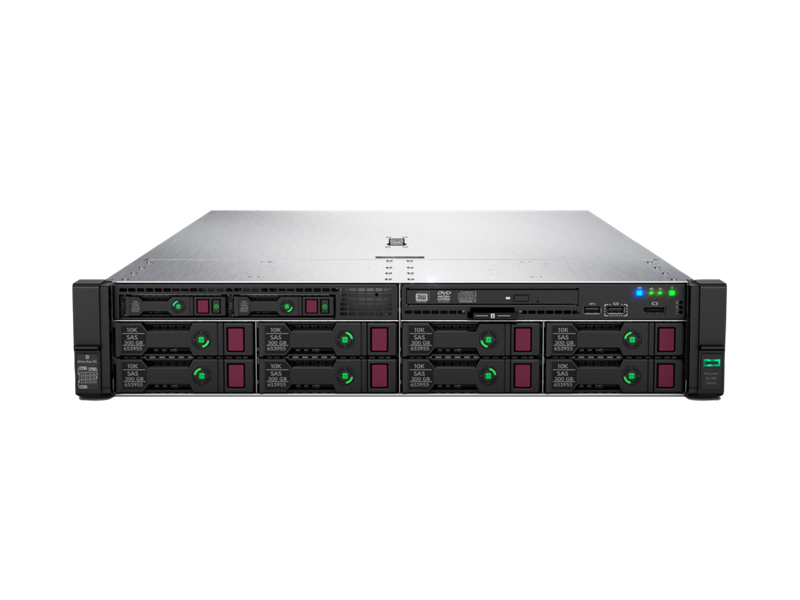

HPE ProLiant DL380 Gen10 6226R Rack Server

• Processor: It is equipped with two Intel Xeon Scalable processors. The specific model mentioned, the 6226R, features 16 cores per processor, providing a total of 32 cores.
• Memory: The server supports DDR4 memory modules and has 24 memory slots.
• Storage: The DL380 Gen10 supports a variety of storage options, including SAS/SATA hard drives and SSDs. It has multiple drive bays and supports hot-plug drives for easy maintenance and expansion.
• RAID: Integrated HPE Smart Array controllers provide support for various RAID configurations, allowing you to set up redundant and fault-tolerant storage.
• Expansion slots: The server has multiple PCIe expansion slots, including three full-height/full-length PCIe 3.0 slots and four low-profile PCIe 3.0 slots. These slots enable you to add additional components such as networking cards or accelerators.
• Networking: It features embedded 4x1GbE NICs, and you can expand the networking capabilities by adding optional HPE FlexFabric or FlexLOM adapters.
• Management: The DL380 Gen10 server includes HPE Integrated Lights Out (iLO) management technology, which provides remote management capabilities, including server monitoring, firmware updates, and remote console access.
• Power supply: It has a redundant power supply configuration with options for either 800W or 1600W power supplies, depending on your power requirements.
• Form factor: The DL380 Gen10 is a rack-mountable server designed for standard 19-inch racks. It is a 2U server, meaning it occupies two units of rack space.
