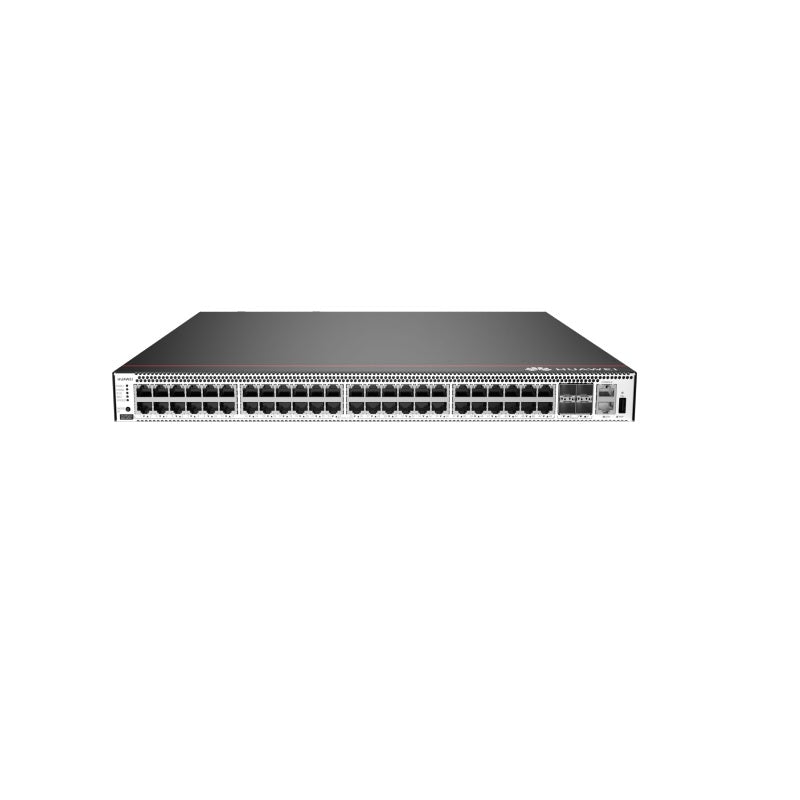

CloudEngine 5882 switches provide high-density GE access to help enterprises build a scalable data center network platform for cloud computing.
Table 1 shows the Quick Specs.
|
Product Code |
CE5882-48T4S-B |
|
RAM |
4 GB |
|
NOR flash |
64 MB |
|
NAND flash |
1 GB |
|
System buffer |
8 MB |
|
Switching capacity (Gbps) |
336 |
|
Forwarding performance (Mpps) |
125 |
|
Number of GE Base-T ports |
48 |
|
Number of 10GE SFP+ ports |
4 |
|
Number of card slot |
0 |
|
Card type |
Fixed switch |
|
Out-of-band management port |
1*GE management interface |
|
Console port |
1*RJ45 interface |
|
USB port |
1 |
|
Main frequency (GHz) |
1.4 |
Features
-High-density GE Access
l Each CloudEngine 5882 switch provides 48*GE line-speed ports, which makes future data center expansion easy.
l The CloudEngine 5882 switch provides 10GE uplink ports. The CloudEngine 5882 switches can work with CloudEngine 16800 or CloudEngine 12800 switches to build a high-performance data center network.
-Programmable Network Device, Flexible Customization
l The CloudEngine 5882 uses the Open Programmability System (OPS) embedded in the VRP software platform to provide programmability at the control plane.
l The OPS provides open APIs. APIs can be integrated with mainstream cloud platforms (including commercial and open cloud platforms) and third-party controllers. The OPS enables services to be flexibly customized and provides automatic management.
l Users or third-party developers can use open APIs to develop and deploy specialized network management policies to implement extensions of fast service functions, automatic deployment, and intelligent management. The OPS also implements automatic operation and maintenance and reduces management costs.
l The OPS provides seamless integration of data center service and network in addition to service-oriented, software-defined networking (SDN).
-Flexible Airflow Design, High Energy Efficiency
l Flexible front-to-back/back-to-front airflow design
The CloudEngine 5882 uses a front-to-back/back-to-front airflow design that isolates cold air channels from hot air channels. This design meets heat dissipation requirements in data center equipment rooms.
Air can flow from front to back, or back to front when different fans and power modules are used.
Redundant power modules and fans can be configured to ensure uninterrupted service transmission.
l Energy-saving technology
|
Power |
|
|
Part Number |
Product Description |
|
150W AC Power Module |
|
|
PDC180S12-CR |
180W DC Power Module |
|
Fan |
|
|
Part Number |
Product Description |
|
FAN-023A-B |
Fan box(B,FAN panel side exhaust) |
|
FAN-031A-F |
Fan box(F,FAN panel side intake) |
Do you have any question about the CE5882-48T4S-B
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
|
Switching capacity (Gbps) |
336 |
|
Forwarding performance (Mpps) |
125 |
|
Number of GE Base-T ports |
48 |
|
Number of 10GE SFP+ ports |
4 |
|
Number of card slot |
0 |
|
Card type |
Fixed switch |
|
Out-of-band management port |
1*GE management interface |
|
Console port |
1*RJ45 interface |
|
USB port |
1 |
|
Main frequency (GHz) |
1.4 |
|
Number of cores |
4 |
|
RAM |
4 GB |
|
NOR flash |
64 MB |
|
NAND flash |
1 GB |
|
System buffer |
8 MB |
|
Power modules |
150 W AC/180 W –48 V DC |
|
Rated voltage range (V) |
AC: 100 V to 240 V DC: –48 V to –60 V |
|
Maximum voltage range (V) |
AC: 90 V to 290 V DC: –38.4 V to –72 V |
|
Maximum input current |
100 V to 240 V 3A -48 V to -60 V DC 6A |
|
Typical power |
101 W (30% throughput) 104 W (100% throughput) |
|
Maximum power |
124 W |
|
Frequency (AC, HZ) |
50/60 |
|
Heat dissipation mode |
Air cooling |
|
Number of fan trays |
2 |
|
Heat dissipation airflow |
Front-to-back or back-to-front airflow |
|
Maximum heat consumption (BTU/hr) |
423 |
|
Long-term operating temperature (℃) |
-5℃ to 45℃ (0-1800 m) The temperature decreases by 1℃ each time the altitude increases by 220 m. |
|
Storage temperature (℃) |
-40℃ to +70℃ |
|
Relative humidity |
5% to 95% |
|
Operating altitude (m) |
Up to 5000 |
|
Surge protection |
AC power supply protection: 6 kV in common mode and 6 kV in differential mode DC power supply protection: 4 kV in common mode and 2 kV in differential mode |
|
MTBF (year) |
55.31 |
|
MTTR (hour) |
2 |
|
Availability |
> 0.99999 |
