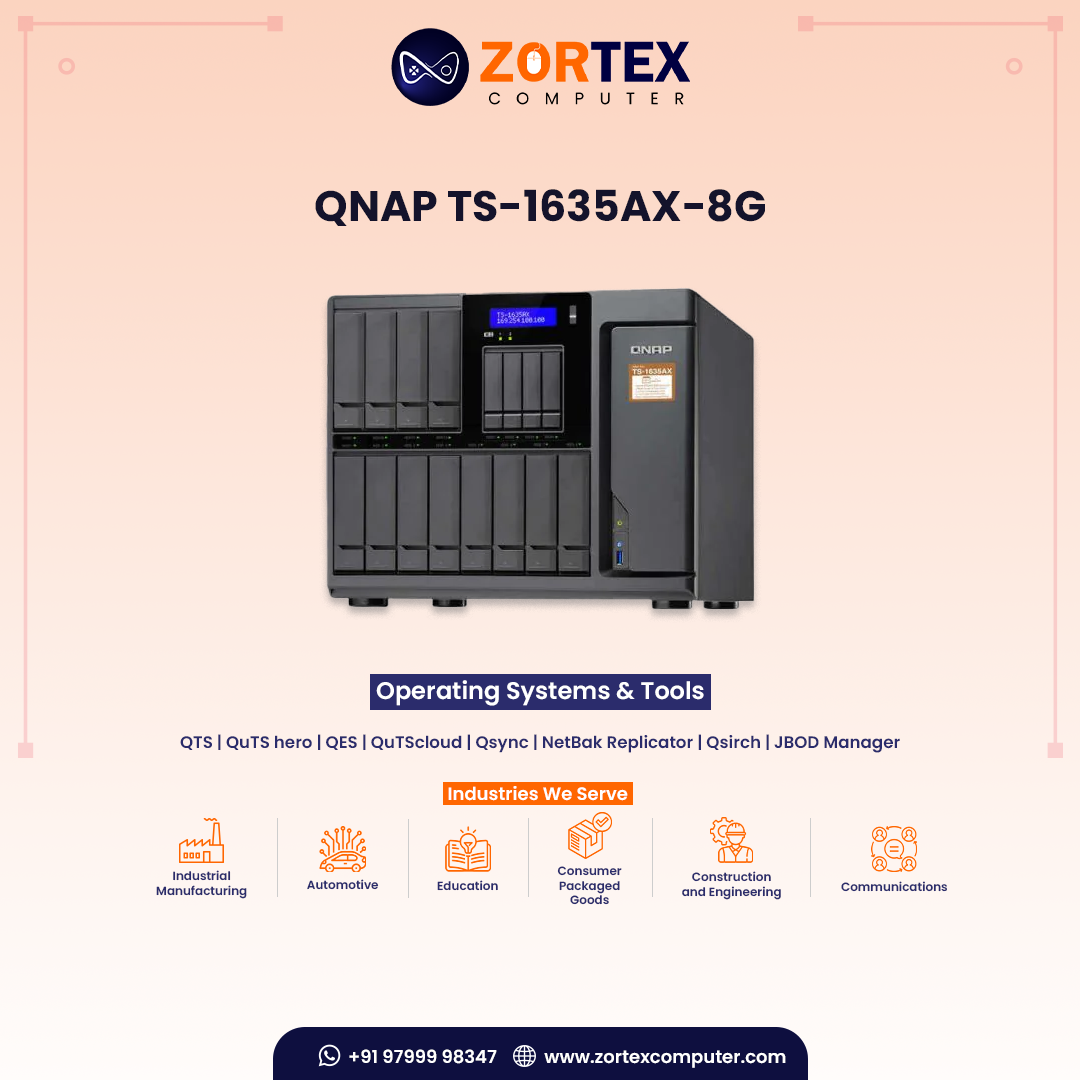

QNAP TS-1635AX-8G
Regular price
Price: Rs. 138,720.00
Product Specifications
Description
The TS-1635AX is powered by a Marvell ARMADA 8040 ARMv8 Cortex-A72 64-bit quad-core 1.6 GHz processor that provides tremendous computing power and is capable of running a range of applications to help businesses grow as their data increases. The TS-1635AX features twelve 3.5-inch drive bays, four 2.5-inch drive bays and two M.2 SATA slots for building a high-capacity and high-performance storage solution with optimal cost efficiency. The TS-1635AX is also equipped with two 10GbE SFP+ ports and two-gigabit ports, providing high-speed connectivity and versatile networking possibilities. The TS-1635AX also allows hardware expansion with two PCI Express (PCIe) 3.0 slots, enabling more functionality by adding a QM2 M.2 SSD/10GbE card, QXP-W6-AX200/ QWA-AC2600 wireless network card and/or USB 3.2 Gen 2 (10Gbps) card. The TS-1635AX offers high-capacity storage potential, high processing power, and high versatility for expansion, which all contribute to a next-gen storage system at a lowered total cost of ownership (TCO).
Main Specifications
|
CUP |
Marvell ARMADA 8040 ARMv8 Cortex-A72 quad-core 1.6 GHz processor |
|
CPU Architecture |
64-bit ARM |
|
Floating Point Unit |
√ |
|
Encryption Engine |
√ |
|
System Memory |
8 GB UDIMM DDR4 (1 x 8 GB) |
|
Maximum Memory |
16 GB (1 x 16 GB) |
|
Memory Slot |
1 x U-DIMM DDR4 |
|
Flash Memory |
512 MB (Dual boot OS protection) |
|
Drive Bay |
12 x 3.5-inch + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s |
|
Drive Compatibility |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
2.5-inch bays: 2.5-inch SATA solid state drives |
|
Hot-swappable |
√ |
|
M.2 Slot |
2 x M.2 2280 SATA SSD slots |
|
SSD Cache Acceleration Support |
√ |
|
Gigabit Ethernet Port (RJ45) |
2 |
|
10 Gigabit Ethernet Port |
2 x 10GbE SFP+ |
|
Wake on LAN (WOL) |
√ |
|
Jumbo Frame |
√ |
|
PCIe Slot |
2 Slot 1: PCIe Gen 3 x2 Slot 2: PCIe Gen 3 x1 |
|
USB 3.2 Gen 1 port |
3 |
|
USB 3.2 Gen 2 (10Gbps) Port |
Optional via a PCIe adapter |
|
Audio Output |
- (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1) |
|
Form Factor |
Tower |
|
LED Indicators |
Power/Status, LAN, USB, HDD1-12, SSD 1-4, M.2 SSD 1-2 |
|
LCD Display/ Button |
√ |
|
Buttons |
Power, Reset, USB Auto Copy |
|
Dimensions (HxWxD) |
303.84 × 369.89 × 319.8 mm |
|
Weight (Net) |
12.06 kg |
|
Operating temperature |
0 - 40 °C (32°F - 104°F) |
|
Storage Temperature |
-20 - 70°C (-4°F - 158°F) |
|
Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
|
Power Supply Unit |
ATX 250W, Input: 100-240 Vac~, 50-60Hz, 3.5A |
|
Power Consumption: HDD Sleep Mode |
39.74 W |
|
Power Consumption: Operating Mode, Typical |
76.69 W |
|
Fan |
System fan: 3 x 92mm, 12VDC CPU fan: 1 x 60mm, 12VDC |
|
Sound Level |
23 db(A) |
|
Other Interfaces |
Kensington security slot |
|
System Warning |
Buzzer |
|
Kensington Security Slot |
√ |
|
Max. Number of Concurrent Connections (CIFS) - with Max. Memory |
700 |
