Product Specifications
Description

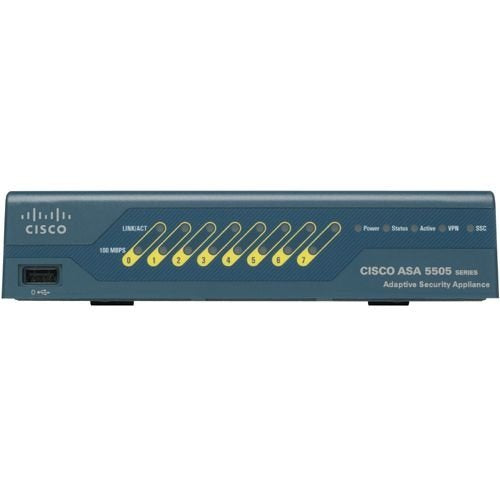

The Cisco ASA 5505 is a versatile and reliable next-generation firewall designed to provide comprehensive security for small to medium-sized businesses (SMBs). This compact yet powerful device offers multiple advanced security features, including VPN (Virtual Private Network) support, stateful packet inspection (SPI), and intrusion prevention, ensuring a robust defense against cyber threats and unauthorized access.
Key Features:
-
Advanced Threat Protection:
The ASA 5505 provides deep packet inspection and stateful firewalling, inspecting every packet that enters or leaves the network, ensuring that only legitimate traffic passes through while malicious data is blocked.
-
VPN Connectivity:
With support for both IPSec and SSL VPNs, the ASA 5505 enables secure remote access for employees, ensuring they can connect to the corporate network from anywhere in the world with strong encryption.
-
Scalability for Growing Businesses:
The ASA 5505 is designed for growing businesses, offering flexibility with expansion options. It can support up to 25,000 concurrent connections, making it an ideal solution for small offices or branch offices that need reliable protection but with minimal complexity.
-
Centralized Management:
The Cisco ASA 5505 can be managed centrally using the Cisco Adaptive Security Device Manager (ASDM) or via the command-line interface (CLI), making it easy for administrators to configure, monitor, and manage the firewall.
-
Security Features:
This firewall integrates multiple layers of protection, including intrusion prevention, URL filtering, application control, and advanced malware protection (AMP). These features help prevent threats from reaching your network, even if they’re hidden in encrypted traffic.
-
Simple Deployment:
Designed for ease of use, the ASA 5505 comes with an intuitive user interface and configuration tools that make it easy to deploy, even for businesses with limited IT resources. The device can be set up quickly without requiring complex configuration steps.
Main Specifications
Feature | Specification |
---|---|
Firewall Throughput | 150 Mbps |
VPN Throughput | 100 Mbps |
Maximum Concurrent Connections | 25,000 |
Maximum VPN Connections | 250 |
Interfaces | 8 x 10/100 Ethernet Ports, 1 x DMZ, 1 x Serial Console Port, 2 x USB Ports |
Operating System | Cisco ASA Software |
Power Supply | Internal AC power adapter (100-240VAC, 50/60Hz) |
Dimensions (Width x Depth x Height) | 17.5 x 10.5 x 3.5 inches (445 x 267 x 89mm) |
Weight | 3.3 kg (7.3 lbs) |
Stateful Packet Inspection (SPI) | Yes |
Intrusion Prevention | Yes |
Application Layer Filtering | Yes |
Advanced Malware Protection | Yes (with AMP license) |
Max New Connections per Second | 1,500 |
Max Connections per Second | 10,000 |
Maximum Firewall Virtual Contexts | 5 |
Maximum Number of VLANs | 20 |
Hardware-Accelerated VPN | Yes (optional VPN module) |
SSL VPN Support | Yes (with anyconnect license) |
Port Density | 8 x 10/100 Ethernet Ports |
Management | Cisco Adaptive Security Device Manager (ASDM), CLI, Web Management |
Security Features | Stateful Firewall, VPN Support, Application Control, Advanced Malware Protection (AMP), Intrusion Prevention System (IPS) |
Regulatory Approvals | FCC Class A, UL, CE, ICES, CB |
