Product Specifications
Description

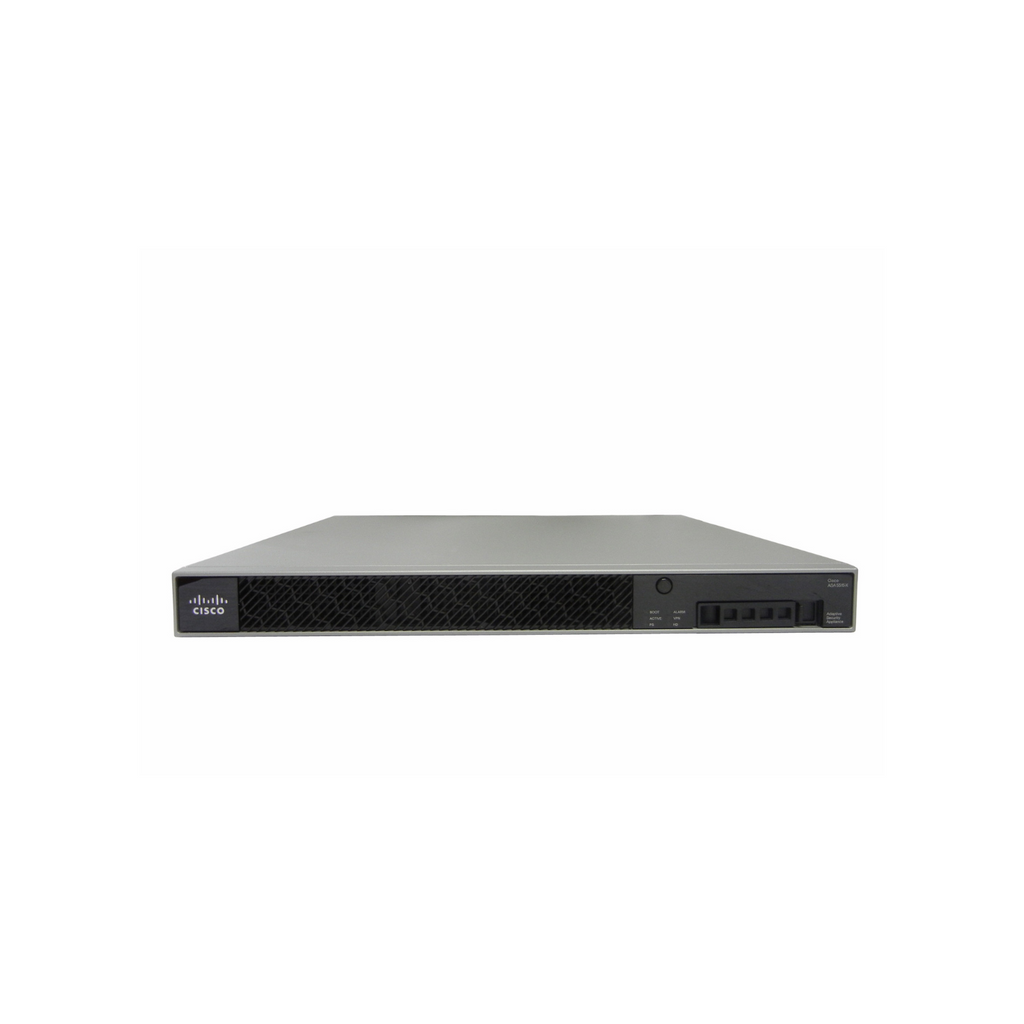

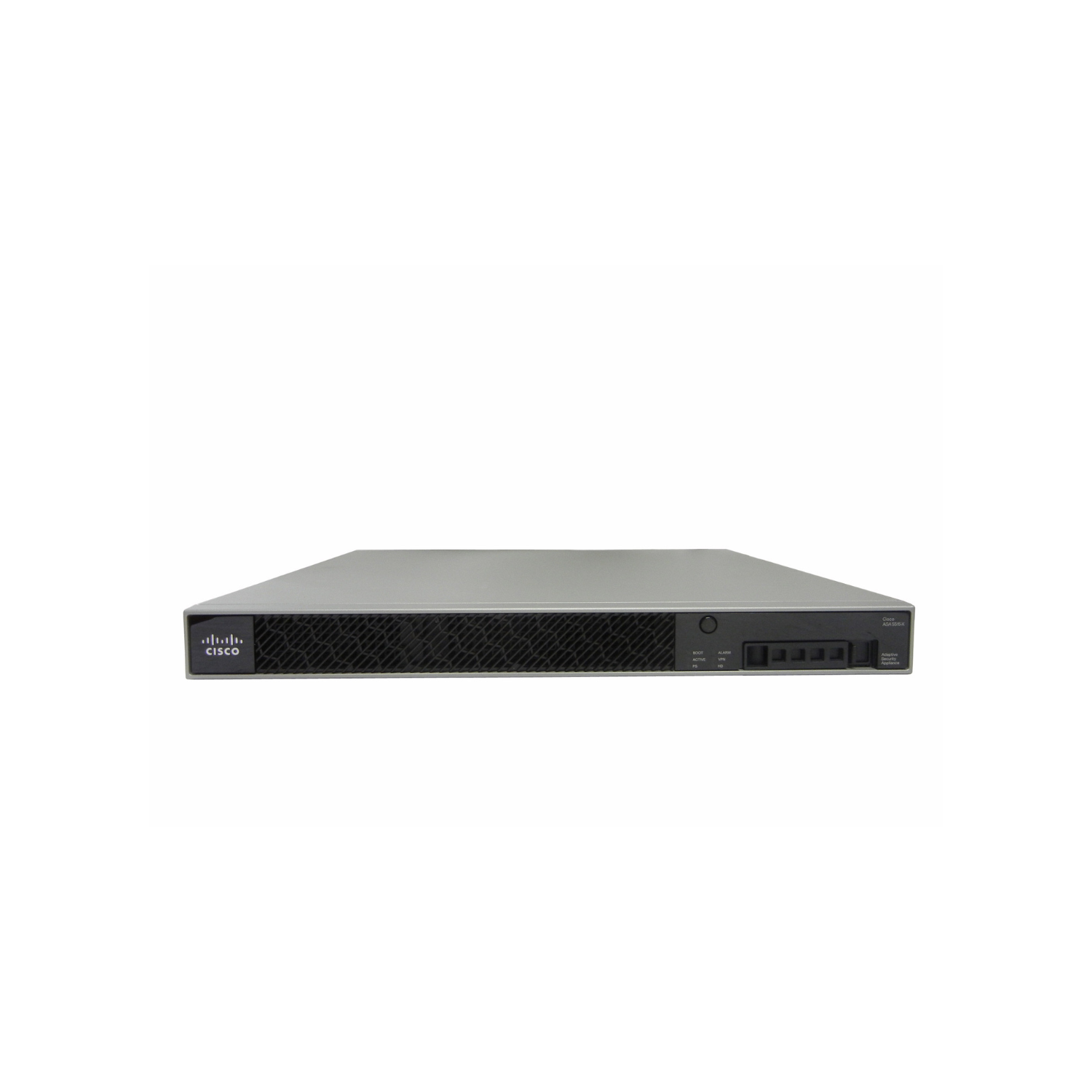

The Cisco ASA 5515 Firewall is a robust, next-generation firewall solution designed to protect medium-sized businesses or branch offices from evolving threats. With high performance, extensive security features, and scalable options, it offers comprehensive network security, VPN capabilities, and application control. Cisco ASA 5515 combines the traditional benefits of stateful packet inspection with modern next-generation firewall technology to provide an enhanced layer of security for your network.
Key Features:
-
Next-Generation Security:
The ASA 5515 provides powerful next-gen firewall features like application awareness, user identity control, intrusion prevention, and advanced malware protection.
-
High Performance:
With firewall throughput of up to 300 Mbps and VPN throughput of 200 Mbps, the ASA 5515 is capable of handling demanding network traffic with ease while maintaining robust security.
-
Comprehensive Threat Protection:
Integrated with Cisco's intrusion prevention system (IPS), URL filtering, and application control, the ASA 5515 offers protection against malware, ransomware, and other sophisticated network threats.
-
VPN Capabilities:
Supports both SSL and IPSec VPNs for secure remote access. This allows businesses to ensure that employees can securely connect to the corporate network from anywhere.
-
Centralized Management:
The ASA 5515 can be centrally managed using the Cisco Adaptive Security Device Manager (ASDM) or command-line interface (CLI), providing flexibility and ease of use for network administrators.
Main Specifications
Feature | Specification |
---|---|
Firewall Throughput | 300 Mbps |
VPN Throughput | 200 Mbps |
Maximum Concurrent Connections | 1,000,000 |
Maximum VPN Connections | 500 |
Interfaces | 8 x 10/100/1000 Ethernet Ports, 1 x DMZ, 2 x SFP Ports, 1 x Console Port |
Operating System | Cisco ASA Software |
Power Supply | Internal AC power adapter (100-240VAC, 50/60Hz) |
Dimensions (Width x Depth x Height) | 17.5 x 10.5 x 3.5 inches (445 x 267 x 89mm) |
Weight | 3.6 kg (7.9 lbs) |
Stateful Packet Inspection (SPI) | Yes |
Intrusion Prevention | Yes (with optional IPS license) |
Application Layer Filtering | Yes |
Advanced Malware Protection | Yes (with AMP license) |
Max New Connections per Second | 5,000 |
Max Connections per Second | 40,000 |
Maximum Firewall Virtual Contexts | 50 |
Maximum Number of VLANs | 50 |
Hardware-Accelerated VPN | Yes (optional VPN module) |
SSL VPN Support | Yes (with AnyConnect license) |
Management | Cisco Adaptive Security Device Manager (ASDM), CLI, Web Management |
Security Features | Stateful Firewall, VPN Support, Application Control, Advanced Malware Protection (AMP), Intrusion Prevention System (IPS) |
Regulatory Approvals | FCC Class A, UL, CE, ICES, CB |
