Huawei S6720-30C-EI-24S-AC switch is one of the Huawei S6720 series Switches. The S6720 series offers high-availability, scalable 10 Gbit/s server access for Internet Data Centers (IDCs) and large traditional data centers. It also provides optional configuration of 4 x 40 GE QSFP+ interface card gives the S6720-EI Series Switches unusual flexibility: use to provide access to high-bandwidth server-based applications, or as a core or aggregation switch in enterprise campus networks.

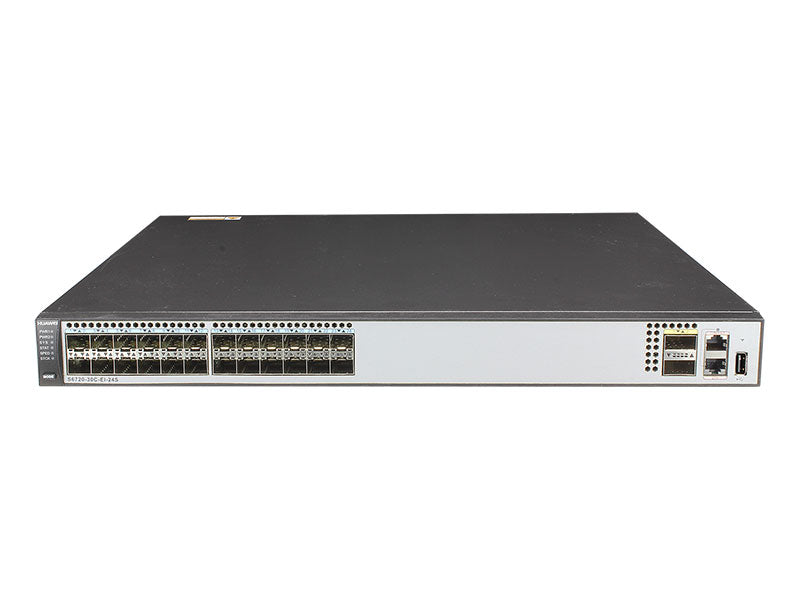

Figure 1 shows the appearance of Huawei S6720-30C-EI-24S-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
|
|
Ports |
24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports |
|
Interface Slot |
1 |
|
Power Supply |
AC Power Supply |
|
Forwarding Performance |
720 Mpps |
|
Switching Capacity |
2.56 Tbit/s |
|
Stack |
Supported |
|
Stack Ports |
- Any 10GE SFP+ ports (a maximum of 16 physical ports) - Any 40GE QSFP+ ports (a maximum of 6 physical ports) |
|
Memory (RAM) |
2 GB |
|
Flash |
240 MB |
|
Dimensions (W x D x H) |
44.2 cm x 42 cm x 4.44 cm |
|
Weight (Kg) |
9.8 Kg |
Figure 2 shows the front panel of Huawei S6720-30C-EI-24S-AC switch.
Note:
|
① |
24 × 10GE SFP+ ports |
④ |
One USB port |
|
② |
2 × 40GE QSFP+ ports |
⑤ |
One console port |
|
③ |
ETH management port |
Figure 3 shows the back panel of Huawei S6720-30C-EI-24S-AC switch with installed fan modules and power modules. These modules should be purchased separately.
Note:
|
① |
Ground screw |
④ |
Power module slot 2 |
|
② |
Rear card slot |
⑤ |
Power module slot 1 |
|
③ |
Fan slot |
Table 2 shows the recommended transceivers, card and power module.
|
Model |
Description |
|
GE-SFP Optical Transceiver |
|
|
Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
|
|
10GE SFP+ optical transceiver |
|
|
10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) |
|
|
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) |
|
|
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) |
|
|
40GE optical transceiver |
|
|
40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC) |
|
|
40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC) |
|
|
Card |
|
|
Huawei 4 × 40 Gig QSFP+ interface card(used in S6720EI series) |
|
|
Power Module |
|
|
600W AC Power Module(Back to Front,Power panel side exhaust) |
Table 3 shows the comparison of Huawei S6720-30C-EI-24S-AC, S6720-54C-EI-48S-AC and S6720S-26Q-EI-24S-AC.
|
Models |
|||
|
Switching Capacity |
2.56 Tbit/s |
2.56 Tbit/s |
2.56 Tbit/s |
|
Forwarding Performance |
720 Mpps |
1,080 Mpps |
480 Mpps |
|
Fixed Ports |
24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports |
48 x 10 GE SFP+, 2 x 40 GE QSFP+ ports |
24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports |
|
Extended Slot |
One extended slot for 4 x 40 GE QSFP+ interface card |
One extended slot for 4 x 40 GE QSFP+ interface card |
Not supported |
|
Power Supply |
AC Power Supply |
AC Power Supply |
AC Power Supply |
Do you have any question about the Huawei S6720-30C-EI-24S-AC switch
|
Fixed Ports |
24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports |
|
Extended Slot |
One extended slot for 4 x 40 GE QSFP+ interface card |
|
MAC Address Table |
288K MAC address entries |
|
VLAN |
4K VLANs |
|
IPv4 Routing |
Static routing, RIPv1, RIPv2, ECMP, and URPF |
|
IPv6 Routing |
Static route |
|
IPv6 Features |
Neighbor Discovery (ND) |
|
Multicast |
Static Layer 2 multicast MAC address |
|
QoS/ACL |
Rate limiting on packets sent and received by an interface |
|
MPLS |
MPLS, MPLS VLL, L3VPN |
|
VPLS |
Martini VPLS |
|
Reliability |
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
|
Security |
User privilege management and password protection |
|
Super Virtual Fabric (SVF) |
Working as the parent node to vertically virtualize downlink switches as one device for management, supports two-layer clients architecture |
|
Management and Maintenance |
iStack (using service ports as stack ports) |
|
Operating Environment |
Operating temperature: 0m to 1,800m: 0°C to 45°C; 1,800m to 5,000m: 1°C decrease for every 220m increase in altitude |
|
Input Voltage |
AC: |
|
Dimensions (W x D x H) |
442 mm x 420 mm x 44.4 mm |
|
Typical Power Consumption |
AC: |
